Weidmüller HDC 10A ADLU 1664060000 Enclosure extension 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Sales and shipping:
Highlights & Details
Connector housing
- ADLU HDC10A
Technical specifications
- Width of housing C: 29.5 mm
- Height of housing B: 37.5 mm
- Length of housing: 63 mm
- Tightening torque: 0.5 Nm
- EMC Housing: No
- Surface: Powder coating
- Material Locking element: Stainless steel
- , stainless steel Design: Standard
- Size: 2
- Bracket design: Longitudinal bracket
- suitable for ModulPlug®: No
- Upper part/lower part/cover: Lower part
- Mounting dimensions Width: 70 mm
- Mounting dimensions Height: 17.5 mm
- Hole distance Length A2: 70 mm
- Seal: NBR
- Width Socket C1: 32 mm
- Height Socket B1: 5 mm
- Series
RockStar® HDC 10A
- Features
+ longitudinal brace on the bottom part
+ lid
- Case material
Aluminium, die cast
- Factory colour
Grey
- Content
1 pc(s)
- Height
37.5 mm
- Length
84 mm
- Width
75.9 mm
IP65
- Manufacturer part #
1664060000
- Type
HDC 10A ADLU
- Max. temperature
+125 °C
- Min. temperature
-40 °C
- Weight
139 g
76
FALSE
26 mm
84 mm
TRUE
Grey
Single locking lever
FALSE
TRUE
Aluminium
Powder coating
-40-125 °C
Other
TRUE
Housing extension
IP65
Aluminium
Other
Base unit
- Product type
Enclosure extension
Documents & Downloads
Datasheet
Datasheet 203015 Weidmüller HDC 10A ADLU 1664060000 Enclosure extension 1 pc(s)
Description

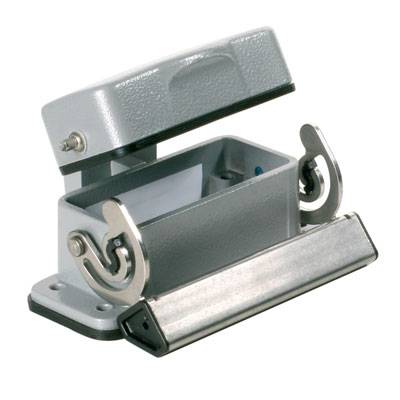

Connector housing. HDC-casing, size: 2, protection class IP65, mounting housing, longitudinal brace on the bottom part, standard, with lid. The HDC-casing are thanks to a special die-cast alloy and a multi-layered surface sealing perfectly protected. The sophisticated locking system is consistently made of stainless steel. This means longevity, corrosion resistance and impact resistance. The locking mechanism of the housing offers security with the system. Our unique, patented bracket system, the latch secure grip and protects against accidental opening. By the laser marking is an identification at a glance. So that you can assign to each product immediately, is a permanent identification directly on the housing lasered. Weidmüller RockStar ® enclosure IP65/NEMA type 4X are your first choice when it comes to industrial housing in the protection class IP65.
This text is machine translated.
