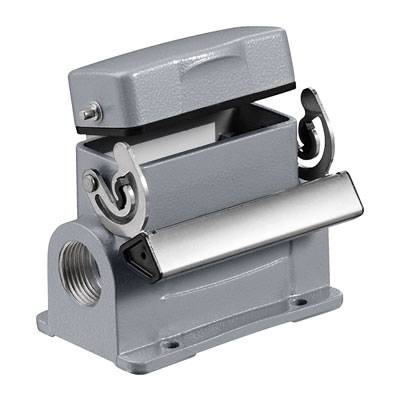

Weidmüller HDC 10A SDLU 1PG16G 1664410000 Socket enclosure 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Connector housing
- SDLU HDC 10 A 1 PG 16 G
Technical specifications
- Wide housing C: 29.5 mm
- Height Housing B: 69.5 mm
- Length Housing: 63 mm
- Tightening torque: 0.5 Nm
- EMC Housing: No
- Surface: Powder coating
- Material Locking element: Stainless steel, stainless
- steel Number of cable input above: 0
- Number of cable input side: 1
- Design type: Standard
- size: 2
- Bracket design: Suitable for
- ModulPlug®: No
- Size Cable inputs: PG 16
- Top/bottom part/cover: Lower section
- Mounting dimensions Width: 48 mm
- Mounting dimensions Height: 40 mm
- Hole spacing Length A2: 48 mm
- Seal: NBR
- Width Socket C1: 50 mm
- Height Socket B1: 4 mm
- Series
RockStar® HDC 10A
- Features
+ longitudinal brace on the bottom part
Cable input (lateral)
+ lid
+ thread
- Thread size
PG16
- Case material
Aluminium, die cast
- Factory colour
Grey
- Content
1 pc(s)
- Height
69.5 mm
- Width
75.9 mm
IP65
- Manufacturer part #
1664410000
- Type
HDC 10A SDLU 1PG16G
- Max. temperature
+125 °C
- Min. temperature
-40 °C
- Weight
253 g
- Product type
Socket enclosure
Documents & Downloads
Datasheet
Datasheet 203020 Weidmüller HDC 10A SDLU 1PG16G 1664410000 Socket enclosure 1 pc(s)
Description
Connector housing. HDC-casing, size: 2, protection class IP 65, socket housing, longitudinal brace on the bottom part, standard, with cover, large cable inputs: PG 16. The HDC-casing are thanks to a special die-cast alloy and a multi-layered surface sealing perfectly protected. The sophisticated locking system is consistently made of stainless steel. This means longevity, corrosion resistance and impact resistance. The locking mechanism of the housing offers security with the system. Our unique, patented bracket system, the latch secure grip and protects against accidental opening. By the laser marking is an identification at a glance. So that you can assign to each product immediately, is a permanent identification directly on the housing lasered. Weidmüller RockStar ® enclosure IP65/NEMA type 4X are your first choice when it comes to industrial housing in the protection class IP65.
