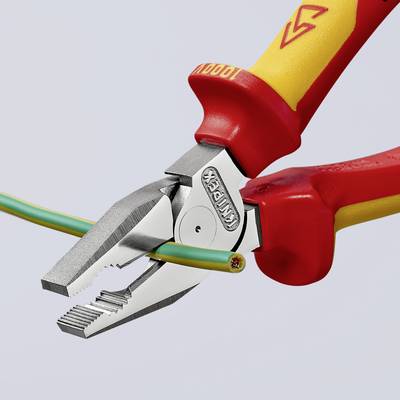

Knipex 02 06 180 VDE Kraft comb pliers 180 mm DIN ISO 5746, DIN EN 60900
EAN:
Part number:
Item no:
Highlights & Details
Power combination pliers
- 35 % less effort required than with conventional combination pliers
- Easier work due to optimised leverage
- Wwith cutting edges (hardness approx. 63 HRC) for soft and hard wire and piano wire
- Long cutting edges for thicker cables
- With gripping zones for flat and round material, suitable for versatile use
- High-grade special tool steel, forged, oil-hardened
Technical specifications
- Cutting value max. 16 mm²
- Manufacturer part #
02 06 180
- Range of use
VDE
- Length
180 mm
- Material
Tool steel
- Material properties
chrome plated
tempered
- Edge hardness
64 HRC
- Wire hardness (max.) hard wire
2.5 mm
- Wire hardness piano wire (max.)
2 mm
- DIN standard
DIN ISO 5746
DIN EN 60900
- Weight
247 g
- Width
65 mm
- Height
30 mm
- Type
02 06 180
- Standards
DIN ISO 5746
- EN standard
EN 60900
- Product type
Kraft comb pliers
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 822018 Knipex 02 06 180 VDE Kraft comb pliers 180 mm DIN ISO 5746, DIN EN 60900
Conformity certificate
Conformity certificate 822018 Knipex 02 06 180 VDE Kraft comb pliers 180 mm DIN ISO 5746, DIN EN 60900
Description
The Knipex 02 06 180 VDE Kraft comb pliers 180 mm DIN ISO 5746, DIN EN 60900 are chrome plated pliers with insulated multi-compenent grip handels and they are VDE-tested.
Features
- Gripping zones for flat and round materials for versatile use
- Induction hardened blades. Blade hardness approx. 64 HRC
- Blades for soft, hard and piano wire
- For the most demanding applications
- 35 % less effort required than with conventional combination pliers thanks to optimised leverage
- Long blades for thicker cables
