VOLTCRAFT MSS-102 Safety test probe set VC-8015055 4 mm socket CAT II 300 V Black, Red 1 Set
EAN:
Part number:
Item no:
Datasheet (PDF)
4267 Piece(s)
Sales and shipping:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 5.45
5
6% = € 0.32
€ 5.13
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 5.45 / piece)
€
Highlights & Details
Voltcraft measuring tips MSS-102
- CAT II 300 V
- Nominal current 3 A
- Socket Ø 4 mm
- For attaching to 4 mm test leads
- Test probes - Ø 1 mm
- Black, Red
Technical specifications
- 4 mm Probe tip, CAT II 300 V 3 A
- Product type
Safety test probe set
- Connection
4 mm socket
- Nominal voltage
300 V
- Factory colour
Black
Red
- Reading category
CAT II 300 V
- Jack diameter
4 mm
- Tip diameter
1 mm
- Tip length
47 mm
- Tip material
Stainless Steel
- Nominal current
3 A
- Nominal current - rounded value
3 A
- Clamping range diameter mm
1 mm
- Max. length
94.5 mm
- (Ø)
6.2 mm
- Shaft length
25 mm
- Plug features
Insulated
- Temperature range
0 - 40 °C
Documents & Downloads
Datasheet
Datasheet 1603011 VOLTCRAFT MSS-102 Safety test probe set VC-8015055 4 mm socket CAT II 300 V Black, Red 1 Set
User & Safety Instructions
User & Safety Instructions 1603011 VOLTCRAFT MSS-102 Safety test probe set VC-8015055 4 mm socket CAT II 300 V Black, Red 1 Set
Conformity certificate
Conformity certificate 1603011 VOLTCRAFT MSS-102 Safety test probe set VC-8015055 4 mm socket CAT II 300 V Black, Red 1 Set
Warranty Terms
Warranty Terms 1603011 VOLTCRAFT MSS-102 Safety test probe set VC-8015055 4 mm socket CAT II 300 V Black, Red 1 Set
Description

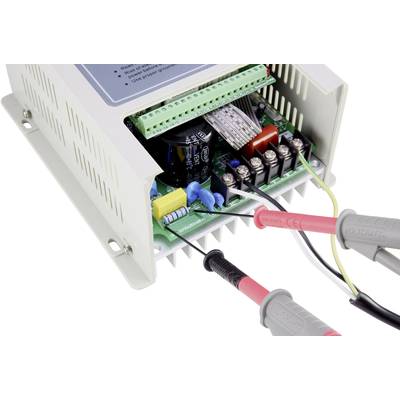

Extra thin probe tips in a 2 Pack. Very well suited for measuring on already populated circuit boards. Especially when large components the use of standard measuring tips. The tips fit on 4 mm safety test leads or to 4 mm test leads with banana, fins and mating connector.
This text is machine translated.
This text is machine translated.
Scope of delivery
- Measuring probe, black
- Probe tip red
