Buy 3M Scotch 23 SCOTCH23-19X9.15 Repair tape Scotch® 23 Black (L x W) 9.15 m x 19 mm 1 pc(s)

Black 'Scotch' electrical insulating tape on a yellow package, self-adhesive, roll with dimensions: 19 mm x 9.15 m x 0.76 mm.

'Black Insulating Tape on Roll', ideal for wrapping cables and wires. Material appears robust and resilient.

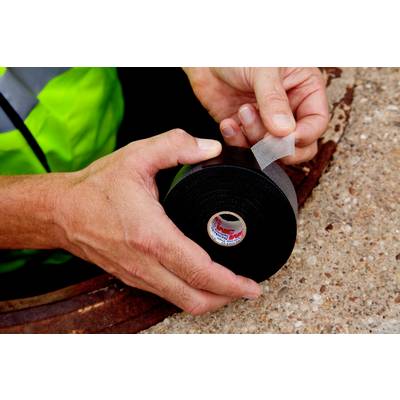

A person is holding a roll of black electrical tape near an open manhole cover. Safety precautions are being prepared.

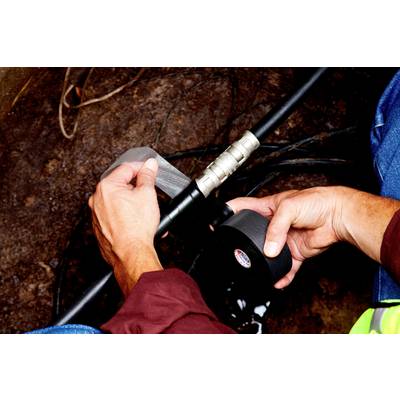

'Person Wrapping Cable with Insulating Tape' - Hands are wrapping two types of insulating tape around a thick black cable. The environment appears industrial or workshop-like.

1/4

Datasheet (PDF)

229 Piece(s)

Do your needs go beyond this?

Sales and shipping:

Number

Piece(s)

Total (1 m = € 1.65)

€

Report legal concerns

Highlights & Details

Self fusing reparature band

Black
(L x W) 9.15 m x 19 mm
Self-fusing

Technical specifications

Product type: Repair tape

Adhesive tape features: Self-fusing

Length: 9.15 m

Width: 19 mm

Thickness: 0.76 mm

Breakout force: 55 kPa

Max. temperature: +90 °C

Min. temperature: 0 °C

Factory colour: Black

Carrier material: Ethylene-propylene rubber

Series: Scotch® 23

Type: Scotch 23

Content: 1 pc(s)

Dim: (L x W) 9.15 m x 19 mm

Discharge voltage: 69 kV

Material (details): Ethylene propylene rubber

Material thickness: 0.76 mm

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 545554 3M Scotch 23 SCOTCH23-19X9.15 Repair tape Scotch® 23 Black (L x W) 9.15 m x 19 mm 1 pc(s)

User & Safety Instructions

User & Safety Instructions 545554 3M Scotch 23 SCOTCH23-19X9.15 Repair tape Scotch® 23 Black (L x W) 9.15 m x 19 mm 1 pc(s)

Information

Information 545554 3M Scotch 23 SCOTCH23-19X9.15 Repair tape Scotch® 23 Black (L x W) 9.15 m x 19 mm 1 pc(s)

Description

Scotch™ 23
From Ethylen-Propylen-Rubber for isolation on Medium voltage cables upto 69 kV.
Advantages:
Forms homogen locking winding layers · Excellent dielectric properties · Weatherproof, weather-resistant

Features

Self-vulcanizing ethylene propylene rubber backing material and highly adjustable rubber-resin adhesive
Temperature resistance for permanent adhesion up to 90 °C.
Can be extended up to 100% for cavity-free, moisture-resistant insulation
Special polyester protective cover keeps the adhesive tape safe and clean during use
Non-vulcanizing and resistant
ASTM certified and RoHS 2002/65/EC-compliant
