Absima 1:8 Truck "TORCH/GUARDIAN 2in1" 4S RTR Neon, Green Brushless 1:8 Electric 4WD 2,4 GHz Incl. extra chassis
EAN:
Part number:
Item no:
Highlights & Details

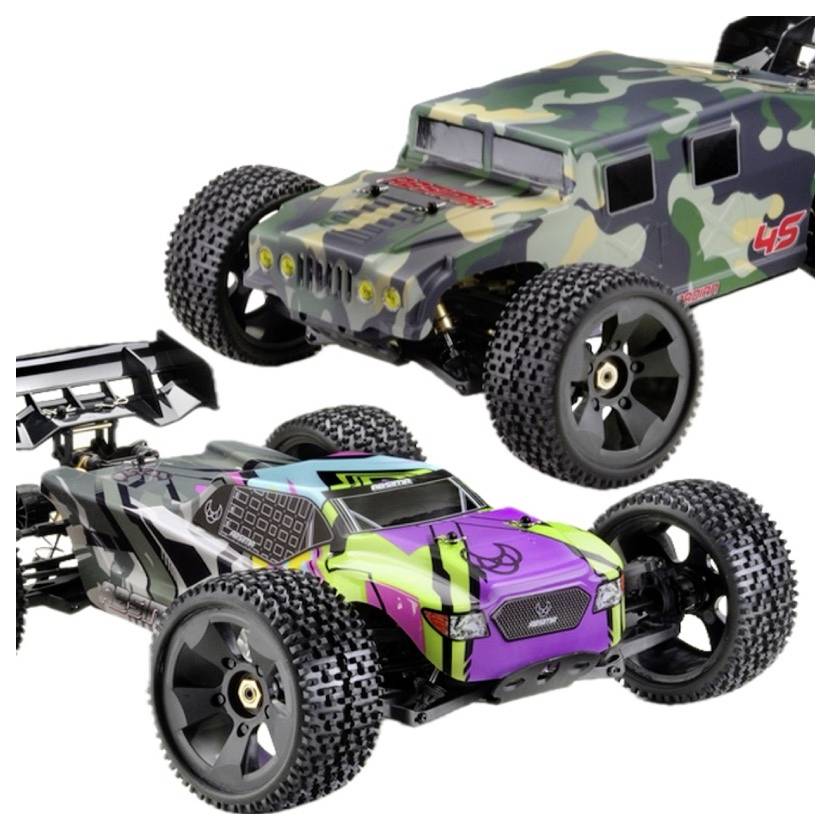

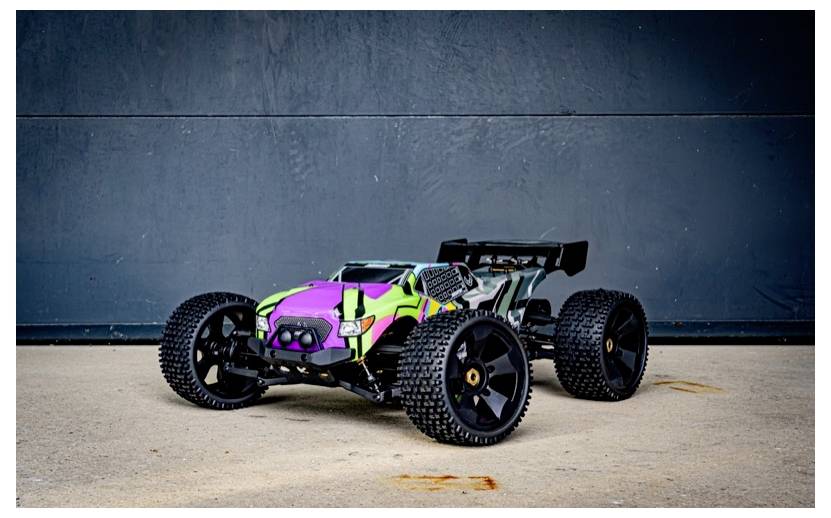

Absima RC-Truck 1:8 RC RACE TRUCK GUARDIAN 2 in 1 incl. additional Truggy body
- 4S Power gives the truck a fast 70 KM/H; 2in1 action incl. car body "Torch" – with just a few easy steps your truck becomes a Race Truggy;Latest and safest 2.4 GHz remote control technology
Technical specifications
- Motor type
Brushless
- Motor type
4274-pcs
- Dim
(L x W x H) 570 x 450 x 210 mm
- Weight
4130 g
- Age category
14 years and over
- Factory colour
Neon
Green
- Height
210 mm
- Length
570 mm
- Width
450 mm
- Required accessories
4 AA batteries
- Features
Incl. extra chassis
- Engine type
Electric
- Scale
1:8
- Remote control
CR4S-V2
- Model
1:8 Truck "TORCH/GUARDIAN 2in1" green/black 4S RTR
- Speed (max.)
70 km/h
- Drive
4WD
- Frequency
2,4 GHz
- Ground clearance
50 mm
- Wheelbase
345 mm
- Tyre Ø
145 mm
- Tyre width
70 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3527290 Absima 1:8 Truck "TORCH/GUARDIAN 2in1" 4S RTR Neon, Green Brushless 1:8 Electric 4WD 2,4 GHz Incl. extra chassis
Description
Extraordinary design & agile handling – our new stunt truck is simply fun!
The short but wide wheelbase makes it perfect for basking. The assembled Wheelie Bar protects against wild maneuvers. Individual setting options – The programmable* drive controller (*programming box optional) allows adjustments to punch and braking force. The remote control offers a adjustable highest speed and a "beginner mode" with 50% power - Ideal for beginners. Robust components – CVD shafts, steel differential gears & dogbones, a 15kg metallic gear servo with aluminum servo horn and "Big Bore" aluminum shock absorbers ensure long life and top performance.
This text is machine translated.
Features
- Extremely durable composite plastic parts
- Adjustable 16mm "Big Bore" aluminum shock absorbers
- Differential with full metal gear
- Massive CVD-shafts front and rear
- Middle drive shafts made of steel
- "Saddle Pack" battery layout for perfect weight distribution
- 3mm aluminum chassis plate with Absima laser engraving
- 15kg steering servo with metal gears and aluminum servo horn
- Water and dust-proof receiver box
- Fully fitted with ball bearings
- 120A speed controller (BEC 6V/3A; optional programmable with programming box)
- 4274 series brushless motor with 2000KV (5mm shaft; module 1)

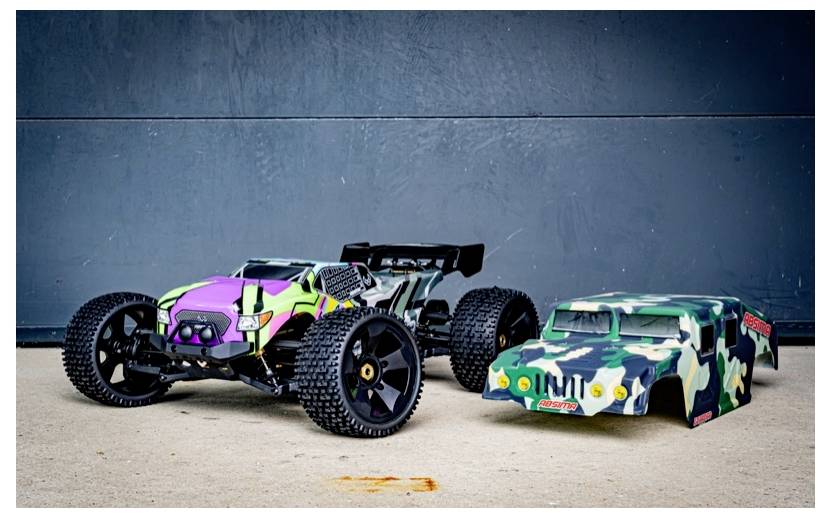

- Additional Truggy body completely cut out and drilled for easy replacement, 2 in 1 !
- The delivery package includes two bodies and can choose how your racer should look
Scope of delivery
- 1 St. GUARDIAN TRUCK is assembled ready to drive.
- 1 additional Truggy body
- 1 PC. Remote control 2.4 GHz
- User manual
- Sticker sheet
Hints
Please always switch on the remote control as a first step - so you always have control over your vehicle. The battery should be fully charged before you start driving so that you can enjoy your driving pleasure for as long as possible. As soon as your car does not move smoothly or the steering is no longer moved as you know, the rechargeable battery should be recharged. Your car will recognize when the "tank" is empty and show you through the features listed above. It is best to always charge the battery outside of the vehicle and keep it in sight. If you need a ACTION-pause or want to stop your model, first switch off your model and let the remote control switch on until that point. Thus you still have everything safely in hand even after the driving pleasure. Let's get going - just have a lot of fun.
System requirements
- To start, you need: 4 AA batteries for the remote control
- 2 PC. Drive batteries lithium polymer 7.4V / 2S
- Suitable charger for lithium polymer rechargeable batteries
