Acceltex Solutions ATS-OP-245-47-4RPSP-36 ATS-OP-245-47-4RPSP-36 Wi-Fi antenna 7 dB 2.4 GHz, 5 GHz
EAN:
Part number:
Item no:
Sales and shipping:
Total (€ 172.27 / piece)
€
Technical specifications
- Antenna type: PatchApplication area: Indoors or outdoorsFrequency range 2.4-2.5/4.9-5.85 GHzPower gain 4/7 dBiConnections: RPSMA plugNumber of ports: 4Cable length: 910mmCable type: RG58Polarization: VerticalSignal opening angle: 99/58 horizontal, 65/40 verticalMaximum input power 100 W.VSWR: Max. 2.0:1Insulation: Min. 20 dBImpedance: 50 ohmDimensions: 140mm H x 120mm W x 39 mm DWeight 0.4 kgInstallation: Screw/nut and swiveling wall/stand mountingDiameter of mounting holes: 25mmDiameter of pipe clamp: 50mmAntenna coupling material: ASAOperating temperature: -40° to 65° CMax. Wind speed 210 km/h.Lightning protection: DC earthingCompatible APs: ADTRAN/Bluesocket 1925, Aerohive AP141, Aruba/Hewlett Packard Enterprise AP-314, Aruba/Hewlett Packard Enterprise AP-324, Aruba/Hewlett Packard Enterprise AP-334, Aruba/Hewlett Packard Enterprise AP-344, Engenius ECB600, Engenius ECB1200, Extreme AP 3805e, Meru/Fortinet AP 1020e, Meru/Fortinet AP 822e, Meru/Fortinet FAP-223C, Meru/Fortinet FAP-224D, Meru/Fortinet FAP-C225C, Mist AP 41E
- Product type
Wi-Fi antenna
- Gain
7 dB
- Wi-Fi frequency band
2.4 GHz
5 GHz
- Used at
Outdoors
Indoors
Fixed
- Antenna socket
RP-SMA plug
- Weight
400 g
- No. of ports
4 x
- Dual Band compatibility
2.4 GHz and 5 GHz
- Mounting type
Wall
Pole-mount
- Polarisation
Vertical
- Width
140 mm
- Height
120 mm
- Length
39 mm
- Temperature range
-40 - +60 °C
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2273040 Acceltex Solutions ATS-OP-245-47-4RPSP-36 ATS-OP-245-47-4RPSP-36 Wi-Fi antenna 7 dB 2.4 GHz, 5 GHz
Description

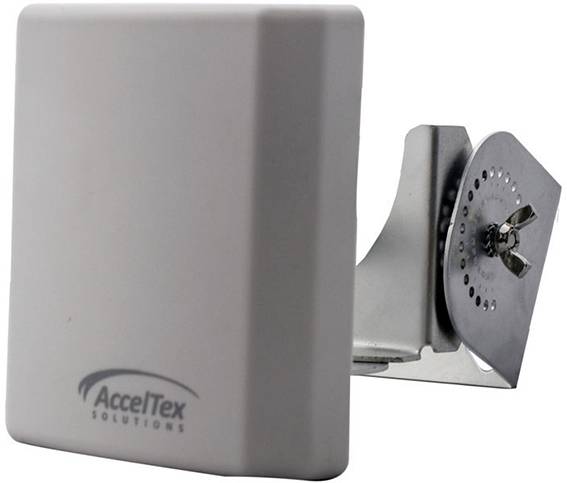

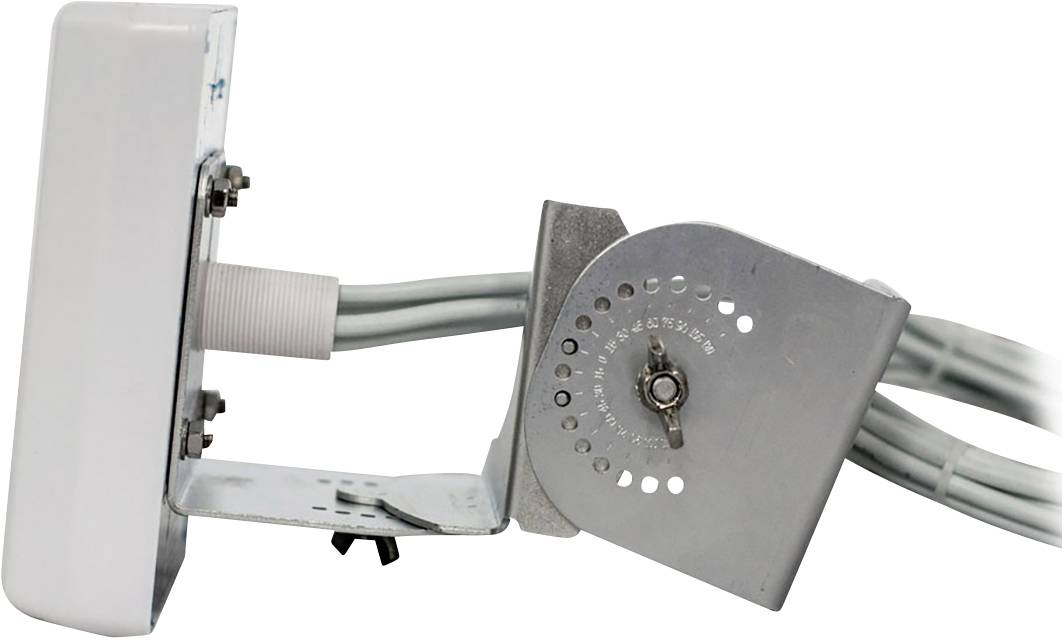

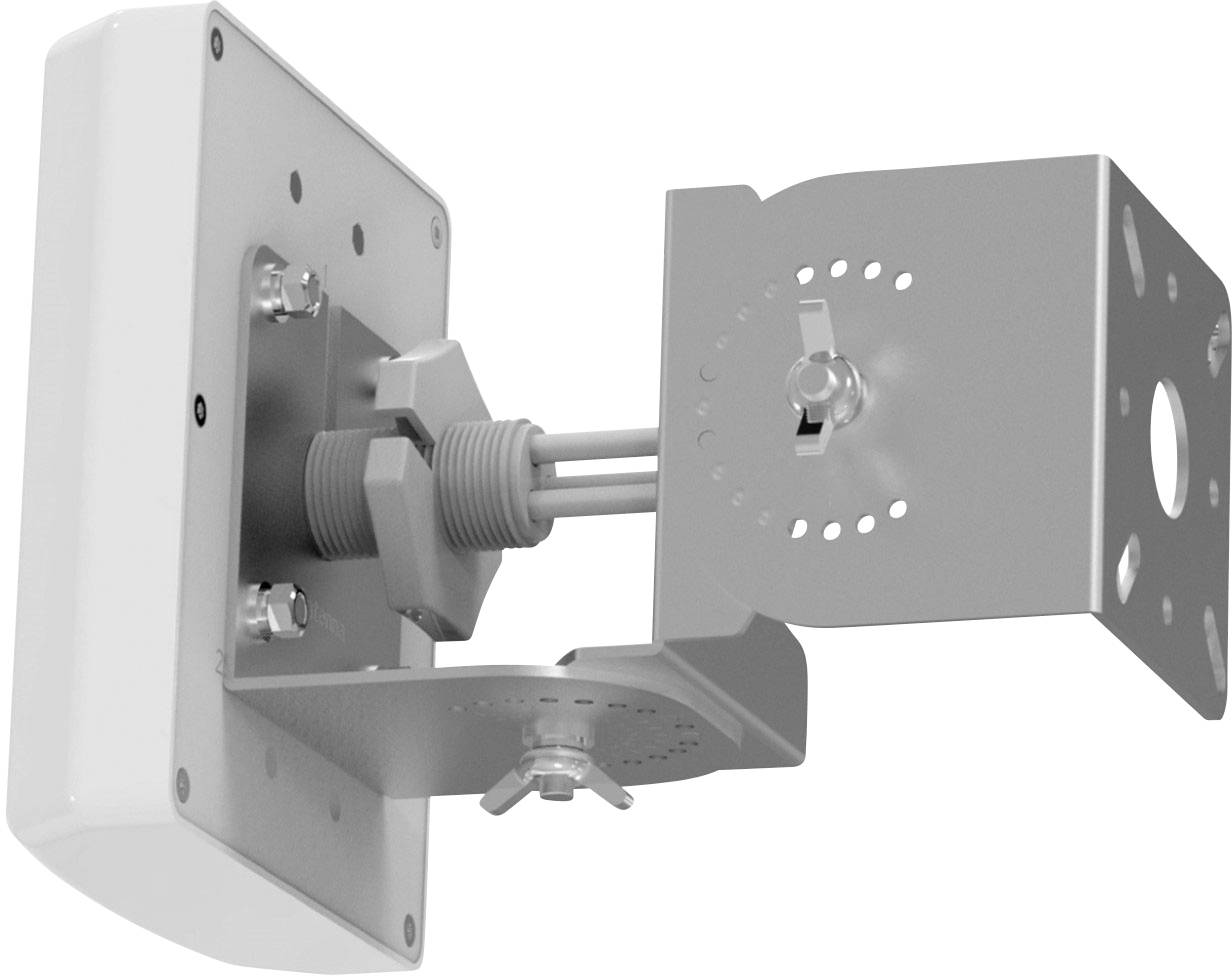

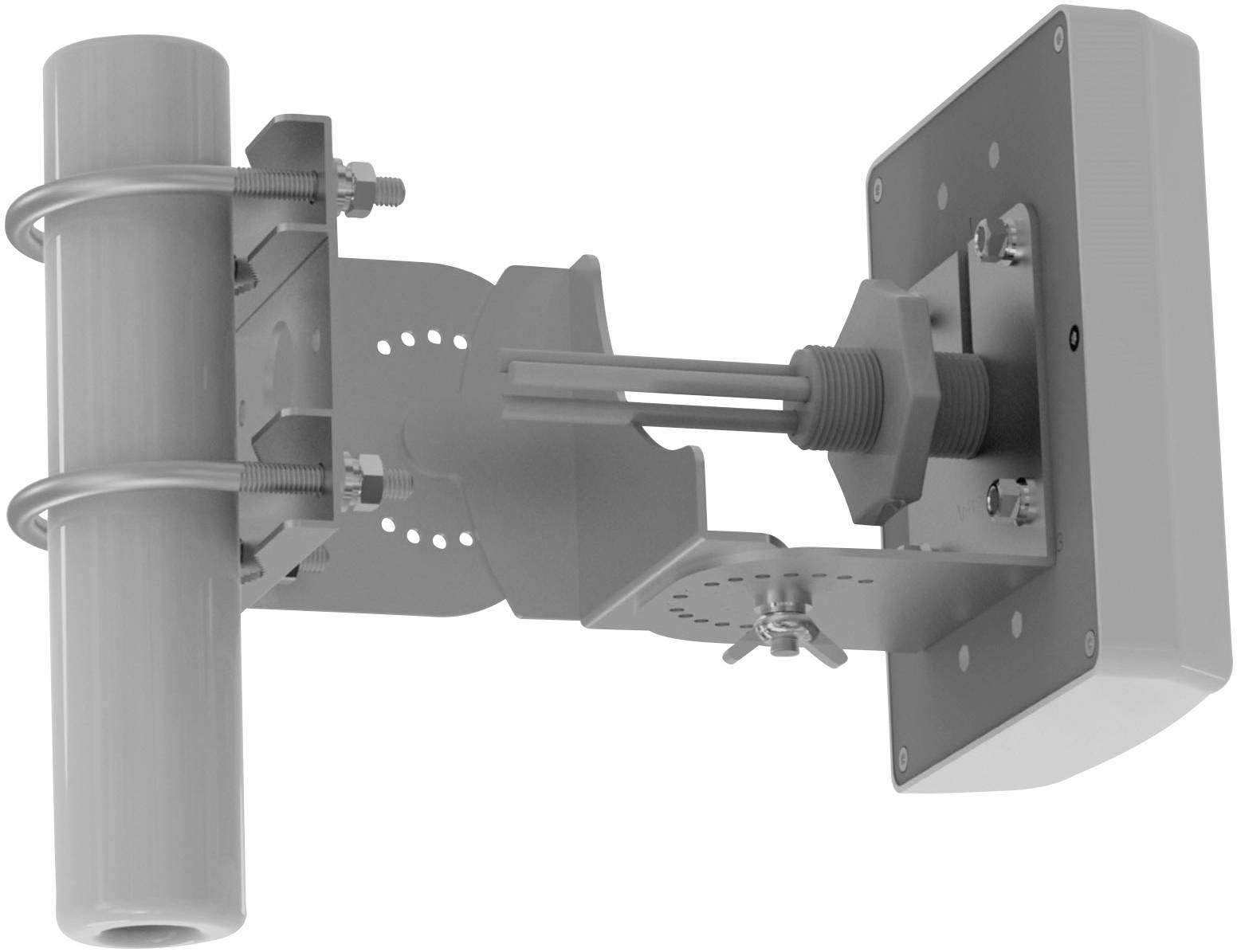

The AccelTex Solutions dual-band indoor and outdoor patch antenna is a perfect complement to any enterprise-class AP to achieve directional coverage indoors or outdoors. Each antenna element is optimized for WLAN operation at 2.4 and 5 GHz. This antenna is supplied with our integrated flush mounting bracket for surface mounting through a thin wall or housing door and is also supplied with our movable wall and mast mounting kit. This highly versatile antenna is suitable for a wide range of indoor and outdoor applications where directional RF coverage of an area is desired.
