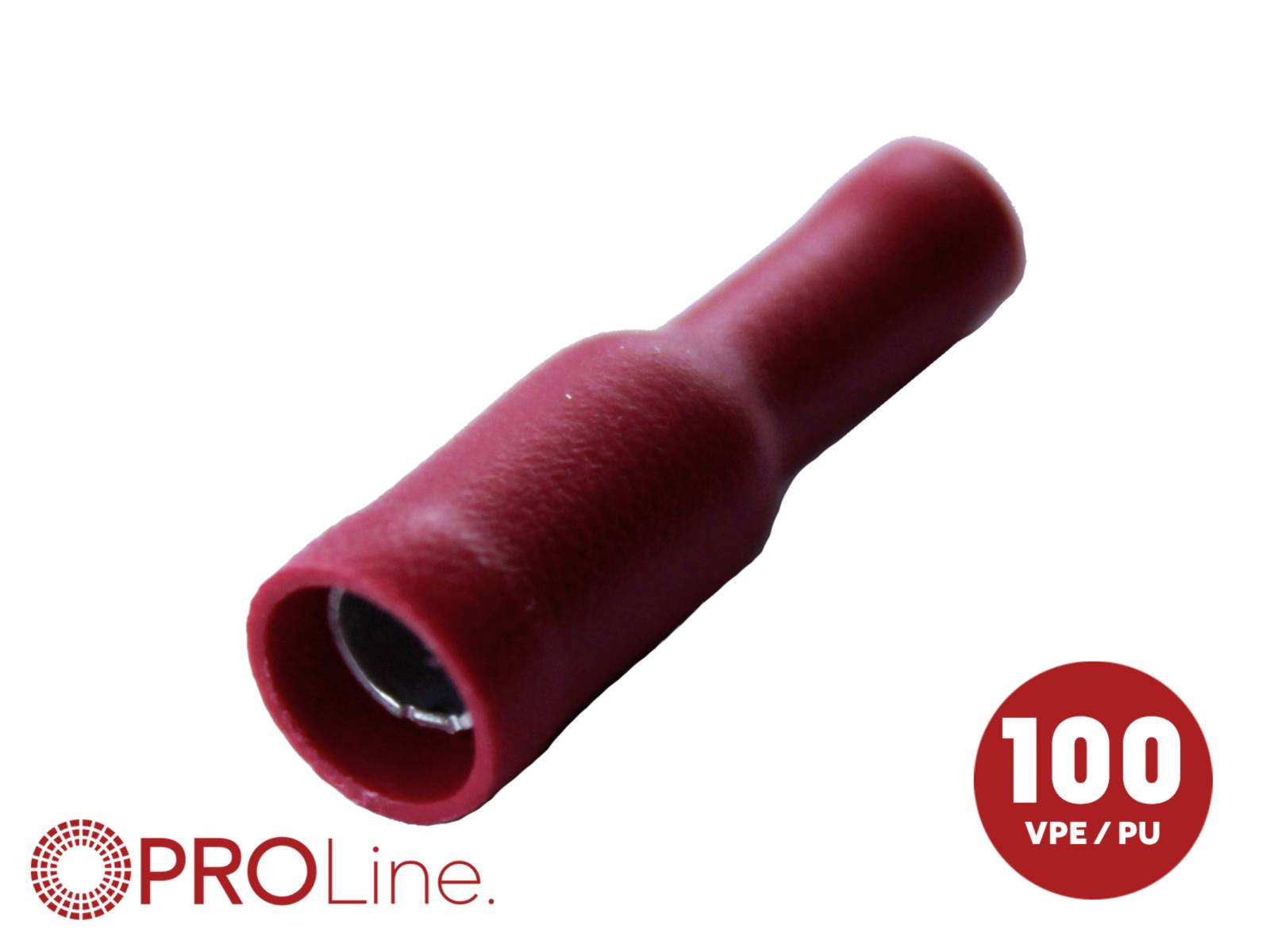

ACV 340035-1-0-p Bullet connector retainer Insulated Red 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Bullet connector retainer
Insulation type
Insulated
Content
1 pc(s)
AWG max.
16
2 Piece(s)
Sales and shipping:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 6.71
3
4% = € 0.28
€ 6.43
5
6% = € 0.40
€ 6.31
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 6.71 / piece)
€
Only 2 Piece(s) available
Highlights & Details
ACV 340035-1-0-p round connector, 3.9 mm, insulated, electrolytically tin-plated brass
- The round socket geometry with a diameter of 3.9 mm makes it easy to plug in and therefore simplifies the assembly and dismantling.
- The insulating PVC sleeve ensures electrical isolation and facilitates installation handling.
- Compatible with conductors from 0.5 to 1.5 mm² to cover a variety of thin wire cross sections for different harness configurations.
- The electrolytically tin-plated brass contact offers a conductive interface and contributes to corrosion resistance during operation.
Technical specifications
- Packaging type
Piece
- Product type
Bullet connector retainer
- AWG max.
16
- AWG (min.)
22
- Insulation type
Insulated
- Factory colour
Red
- Content
1 pc(s)
- Manufacturer part #
340035-1-0-p
- Type
340035-1-0-p
- Dim
- Cross-section range
- RoHS-compliant
Yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3595153 ACV 340035-1-0-p Bullet connector retainer Insulated Red 1 pc(s) Piece
Description
This round plug is a single-pole socket, which is connected to a suitable round plug by means of plug connection. Installation includes wire stripping, insertion into the socket, and crimping to create a mechanical and electrical connection. The insulating sleeve protects the connection against damage. During operation, the chrome-plated brass contact transfers the current over the contact surface and at the same time ensures a secure hold even in vibrations. Typical applications are wiring harnesses and individual cable connection points, where compact, detachable connections are needed. The operating temperature range is suitable for common industrial and automotive environments.
This text is machine translated.
This text is machine translated.
Features
- Socket diameter 3.9 mm
- Wire cross-section: 0.5–1.5 mm²
- AWG range: 16–22 AWG
- Insulation material: Vinyl PVC
- Contact material: Electrolytically tin-plated brass
- Insulation color red
- Temperature range: -10 °C to +75 °C
- Packing: Piece
- Connector type: Round socket
- Connector characteristics: UL-listed; high tensile strength; corrosion protection; mechanical stability; excellent conductivity
