Aerotec 2010081 Pneumatic filter 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details
Aerotec 2010081 Pneumatic filter 1 pc(s)
- Class 2 ISO 8573-1
Technical specifications
- Product type
Pneumatic filter
- Internal thread
3/4"
- Length
120 mm
- Weight
0.8 kg
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1882556 Aerotec 2010081 Pneumatic filter 1 pc(s)
Description
Features:

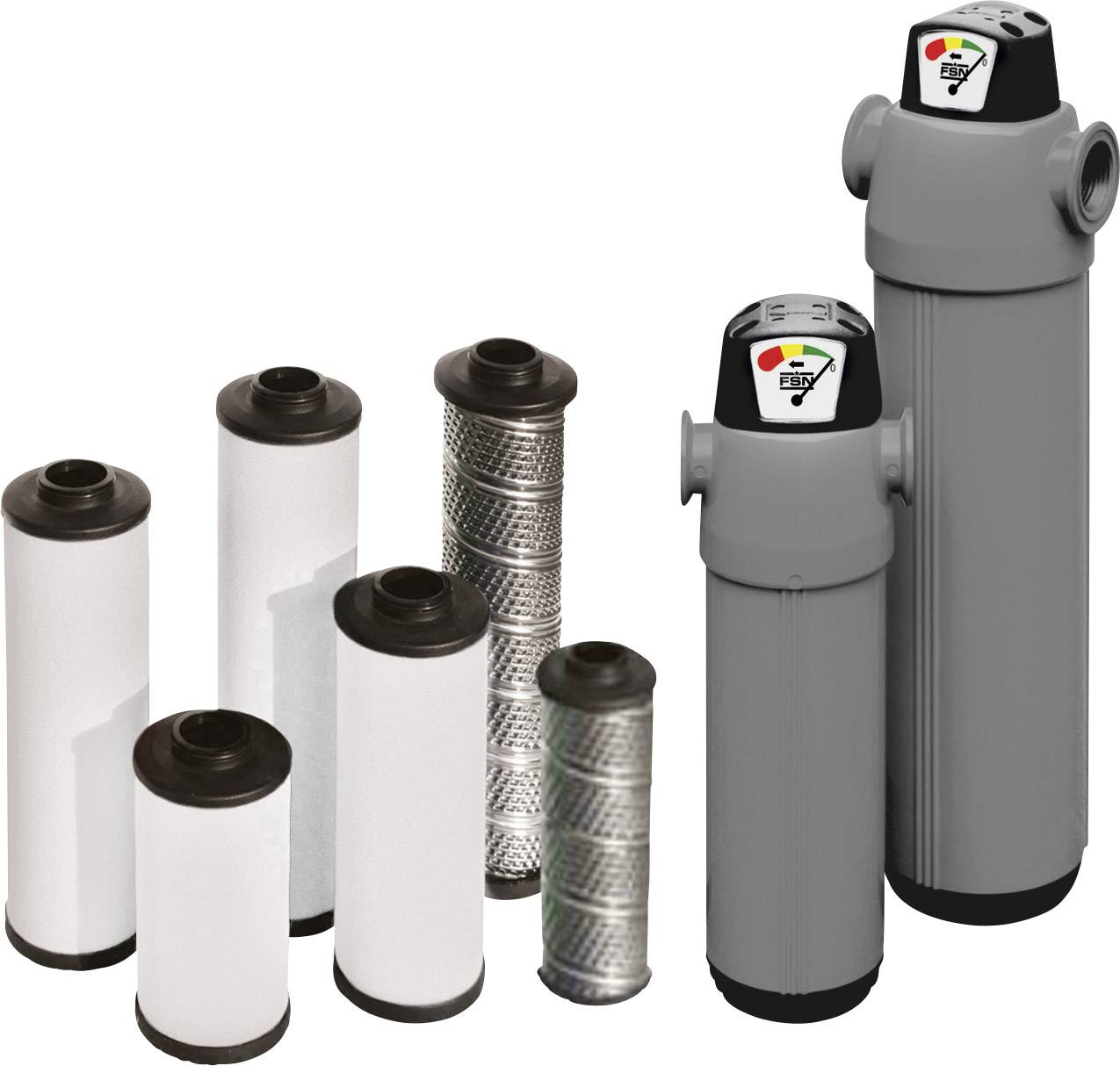

· Aerotec fine filter for the removal of dirt particles up to 0.01 micron and oils to 0.1 mg/m³.
· For installation according to the water separator and the pre-filter
· Class 2 ISO 8573-1
Technical specifications:
· Model: FF3400
· Volume flow rate (L/min): 3400
· Pressure (max.-bar): 16
· Connection: 3/4'' female thread on both sides
· Dimensions (mm): 120 x 360 high
This text is machine translated.
· Aerotec fine filter for the removal of dirt particles up to 0.01 micron and oils to 0.1 mg/m³.
· For installation according to the water separator and the pre-filter
· Class 2 ISO 8573-1
Technical specifications:
· Model: FF3400
· Volume flow rate (L/min): 3400
· Pressure (max.-bar): 16
· Connection: 3/4'' female thread on both sides
· Dimensions (mm): 120 x 360 high
This text is machine translated.
