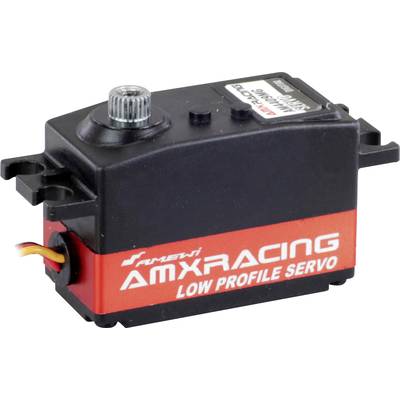

Amewi Low Profile servo AMXRacing AM4409MG Low Profile Analogue servo Gear box material: Metal Connector system: JR
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 22.68
3
4% = € 0.89
€ 21.79
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 22.68 / piece)
€
Technical specifications
- Dead Band: 2μs
- Operating frequency 1520μs / 330Hz
- HQ core motor
- Housing aluminum/plastic
- Regulating speed (4.8V): 0.13sec/60°
- Controlling speed (6V): 0.11sec/60°
- Displacement force (4.8V): 7.8kg/cm
- Actuating power (6V): 9.2 kg/cm
- Cable length 265mm
- JR connection
- Ball bearings 2
- Servo head 25Z
- Dim
(L x W x H) 40.5 x 20.3 x 28 mm
- Length
40.5 mm
- Width
20.3 mm
- Height
28 mm
- Weight
44.5 g
- Actuation time at 4.8 V
0.13 s
- Actuation time at 6 V
0.11 s
- Gear box
Metal
- Type of bearing
Double ball bearing
- Servo technology
Analogue servo
- Connector system
JR
- Manufacturer part #
28995
- Min. operating voltage
4.8 V
- Operating voltage
4.8 - 6 V
- Max. operating voltage
6 V
- Product type
Low Profile servo
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3345280 Amewi Low Profile servo AMXRacing AM4409MG Low Profile Analogue servo Gear box material: Metal Connector system: JR
Description
Economical, fast and powerful Low Profile servo in the standard size of 40 mm with over 9 kg adjusting force at 6 V – suitable for RC-vehicles or other models, in which low-profile servos of this size are required.
This text is machine translated.
This text is machine translated.
Scope of delivery
- Servo
