Charger Lithium 2
- Microcontroller-controlled charging technology
- Gentle trickle charging
- LED display over each bay
Technical specifications
- Matching rechargeable battery
Li-ion
NiCd
NiMH
- Product type
Charger for cylindrical cells
- Suitable for battery size
10340
10350
10440
10500
12500
12650
13500
13650
14500
14650
Show more
- Charging slots
2
- AAA
2
- AA
2
- Operating voltage
5 V via USB

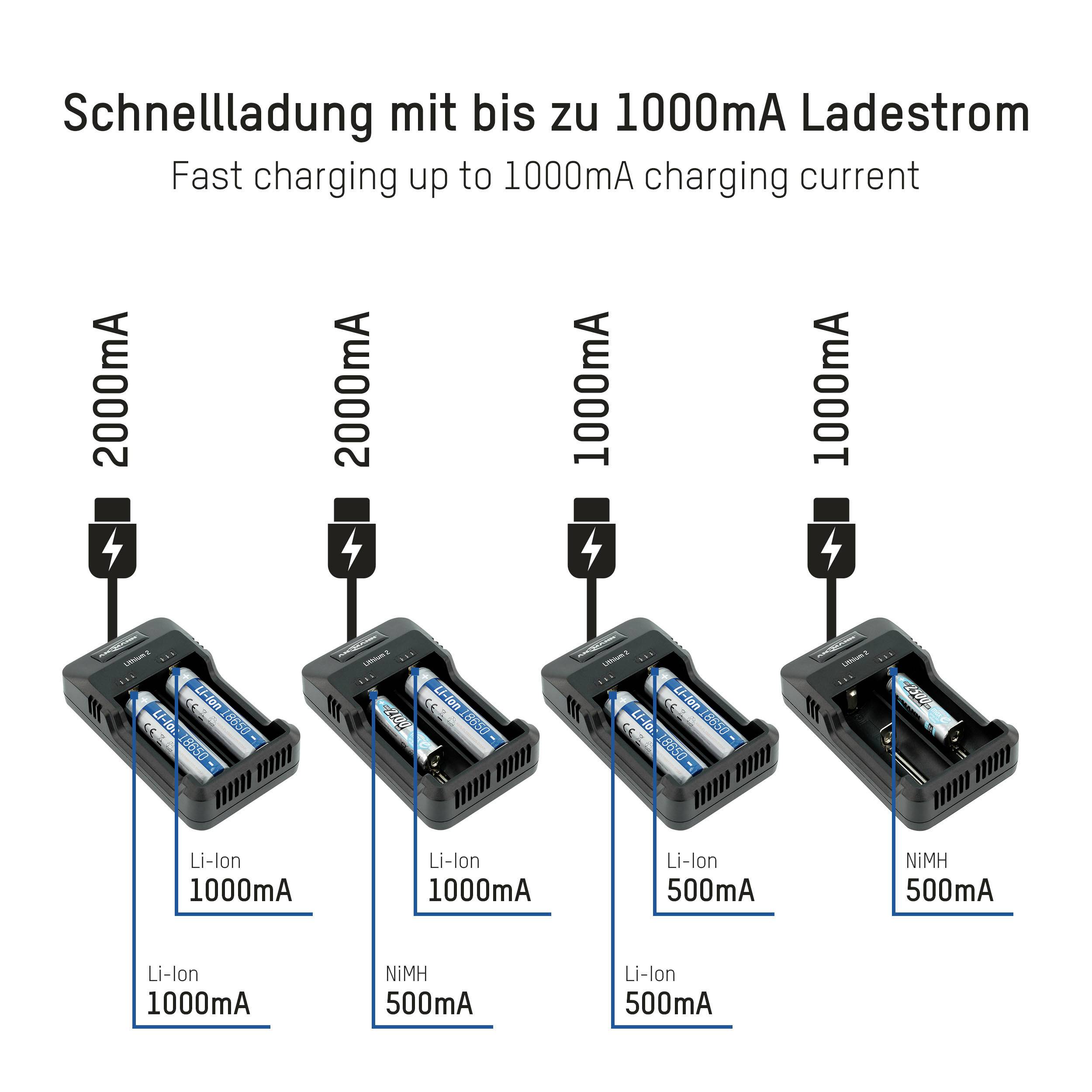

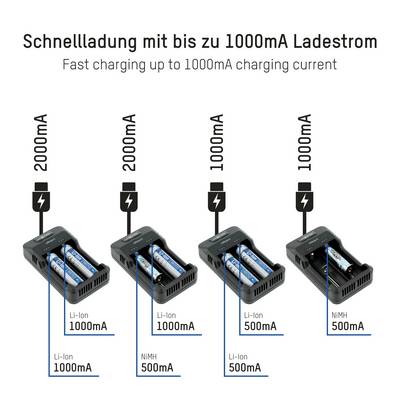

- Max. charging current per slot
1000 mA
- Charging current (AAA)
500 mA
- Charging current (AA)
500 mA
- Li-Ion/Li-Po charging current
1000 mA
- Charger features
Battery recognition
Individual slot monitoring
Trickle charging
- Rechargeables included
No
- Length
82 mm
- Width
41 mm
- Height
196 mm
- Weight
105 g
- Dim
(L x W x H) 82 x 41 x 196 mm
- Wireless charging
No
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2348723 Ansmann Lithium 2 Charger for cylindrical cells Li-ion, NiCd, NiMH 10340, 10350, 10440, 10500, 12500, 12650, 13500, 1365
User & Safety Instructions
User & Safety Instructions 2348723 Ansmann Lithium 2 Charger for cylindrical cells Li-ion, NiCd, NiMH 10340, 10350, 10440, 10500, 12500, 12650, 13500, 1365
User & Safety Instructions 2348723 Ansmann Lithium 2 Charger for cylindrical cells Li-ion, NiCd, NiMH 10340, 10350, 10440, 10500, 12500, 12650, 13500, 1365
Warranty Terms
Warranty Terms 2348723 Ansmann Lithium 2 Charger for cylindrical cells Li-ion, NiCd, NiMH 10340, 10350, 10440, 10500, 12500, 12650, 13500, 1365
Description
disposable batteries are a long-term burden, both for the wallet and for the environment. Especially for lithium batteries, the consumer has to grip deeply into the bag. So why not switch to rechargeable batteries, which are available in all sizes. In order to make the investment in a rechargeable battery worthwhile for the long term, it is important to use a charger that optimally charges the rechargeable batteries and thus considerably extends their lifetime.

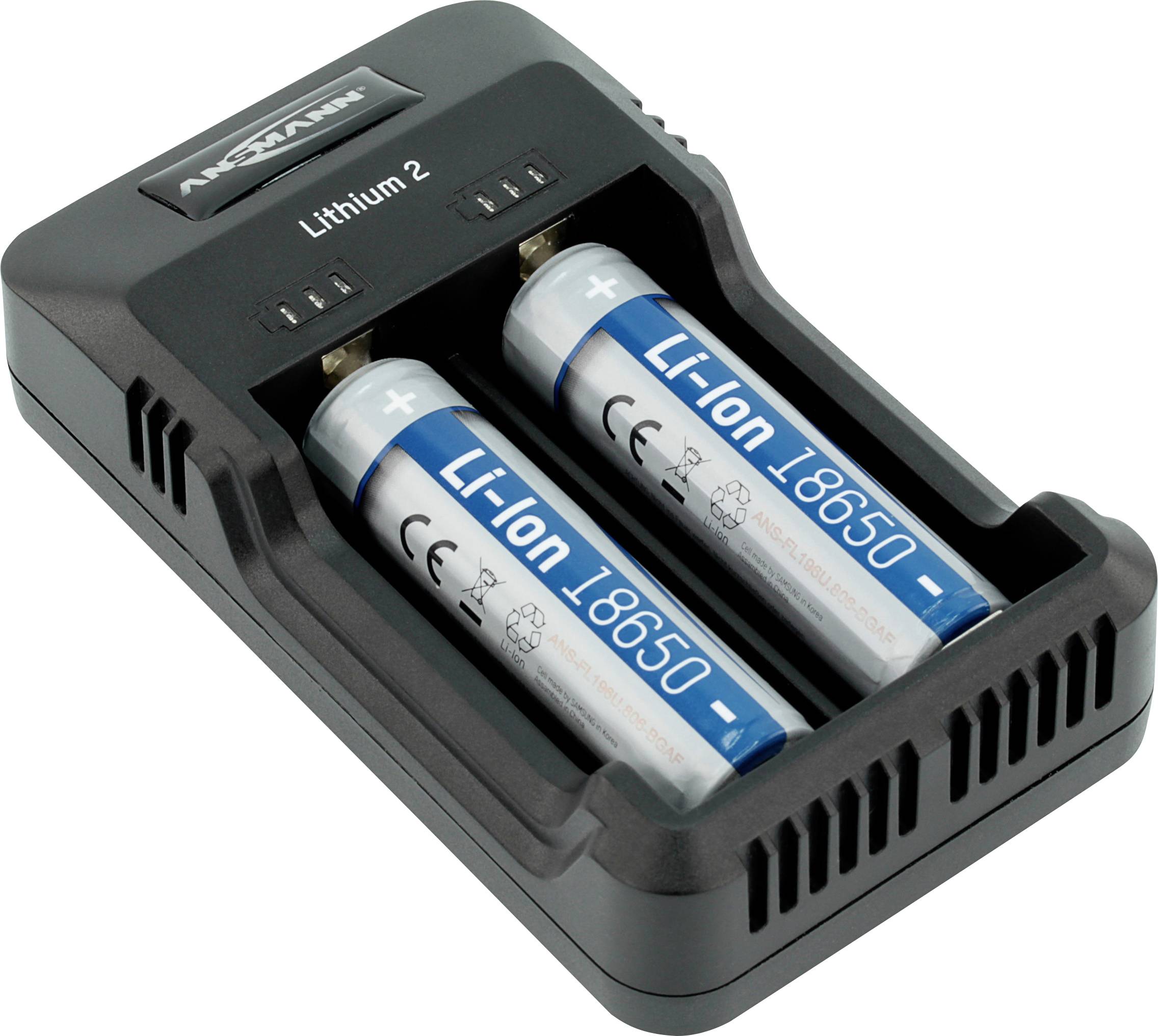

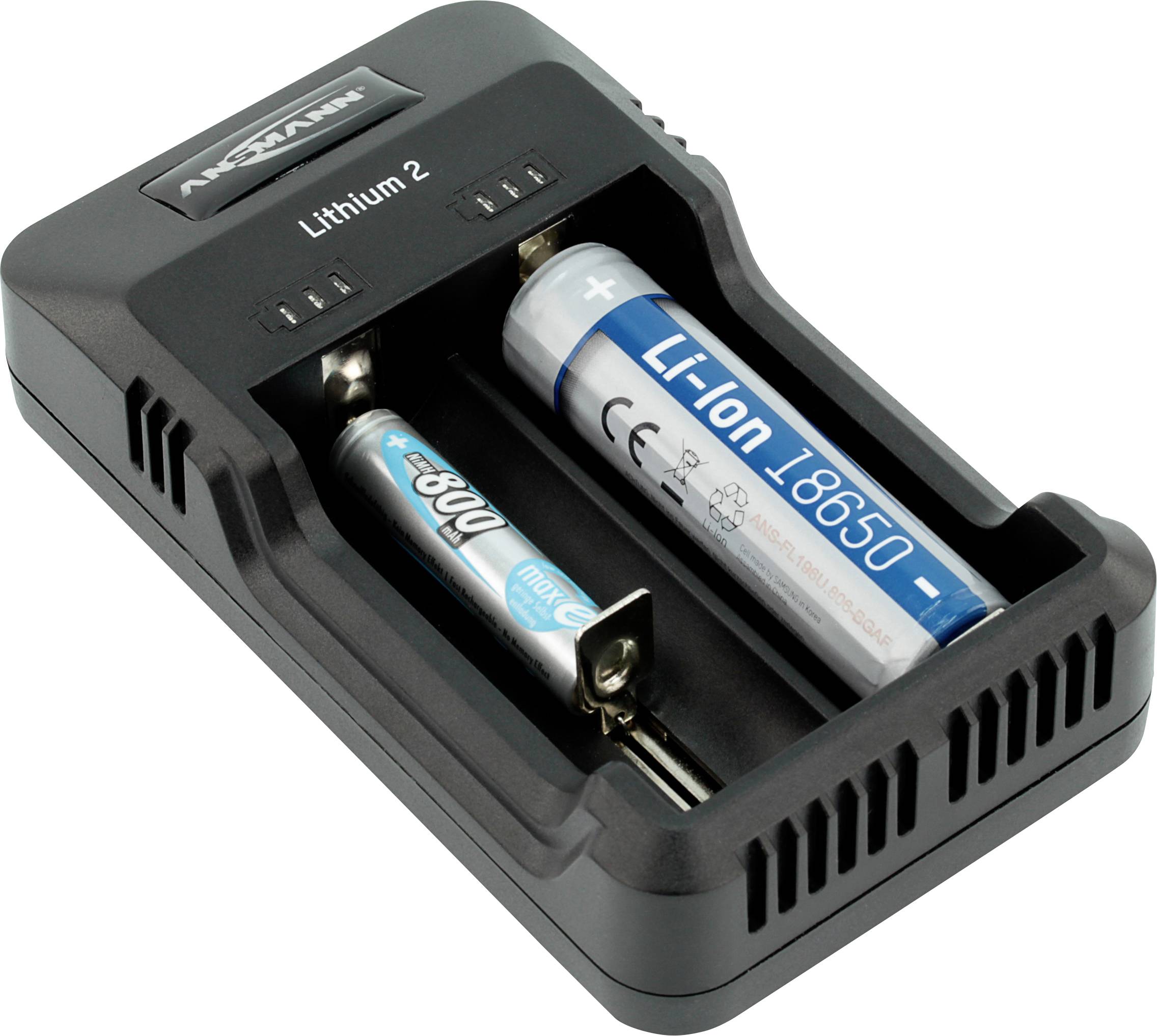

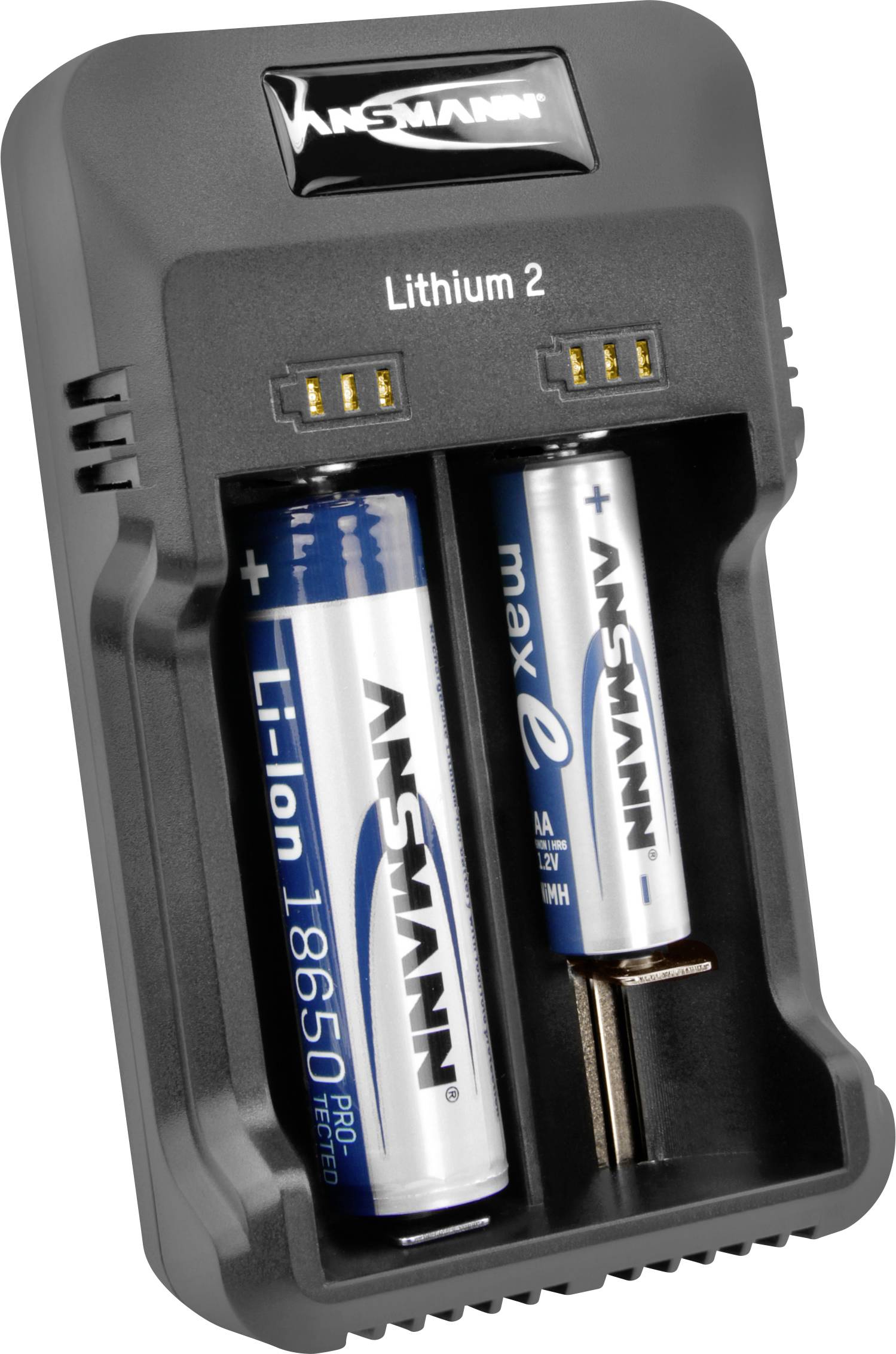

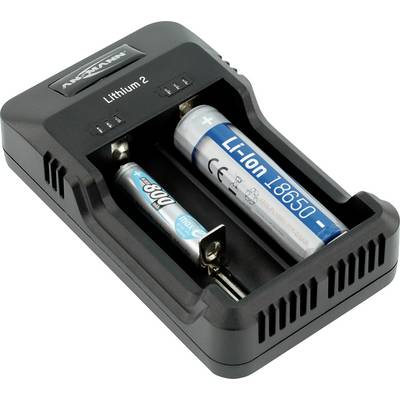

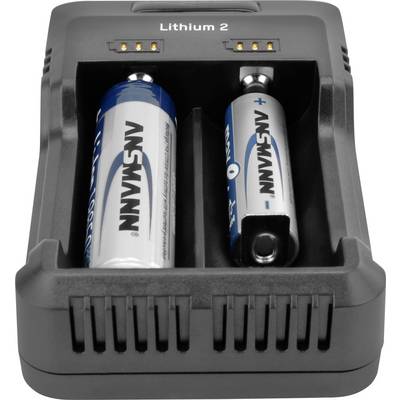

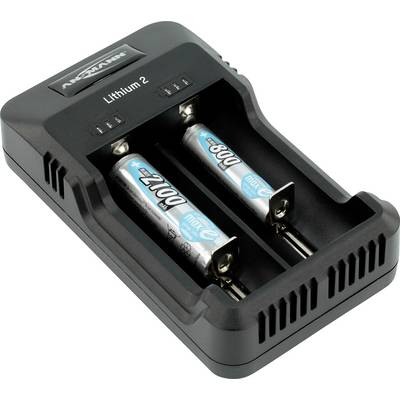

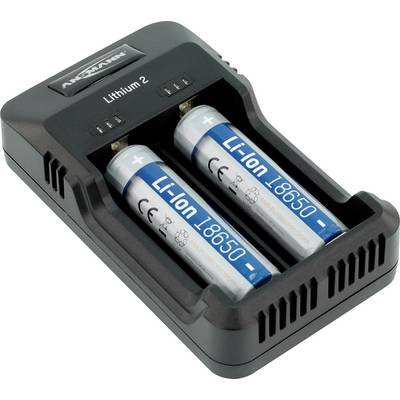

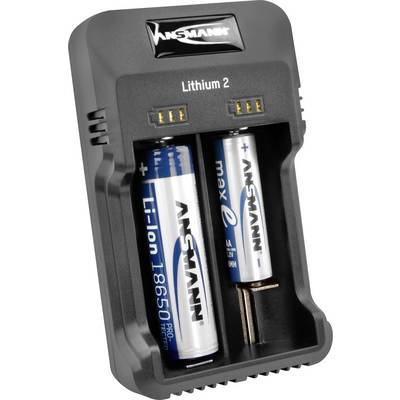

A variety of battery sizes are offered for all common battery sizes, especially in the lithium segment. With the lithium 2 charger from ANSMANN you decide for the universal all-rounder with best price-performance ratio. With the two charging slots you can charge 1-2 Li-Ion batteries of the sizes 26650, 22650, 18650, 18500, 17670, 16340, 14500 and many more or 1-2 NiMH Mignon AA / Micro AAA batteries independantly of each other. The device recognizes the inserted rechargeable battery completely automatically and without the annoying adjustment. The charging process starts immediately after you have inserted the cell in the correct polarity.
Longer fun with the battery
so that your battery can still deliver its performance optimally even after many charging cycles, it is important that it is always carefully and securely charged. The lithium 2 charger from ANSMANN has a high-quality, microcontroller-controlled charging technology, which protects the battery against rapid wear and tear in several ways. This includes the automatic switch-off of the charging process as soon as the cell is fully charged, as well as the gentle maintenance charging for NiMH cells after the actual charging process. Especially lithium cells are to be treated with special care due to their high energy density. The special electronics in the lithium 2 charger from ANSMANN guarantees safety at the highest level.
Smart extras

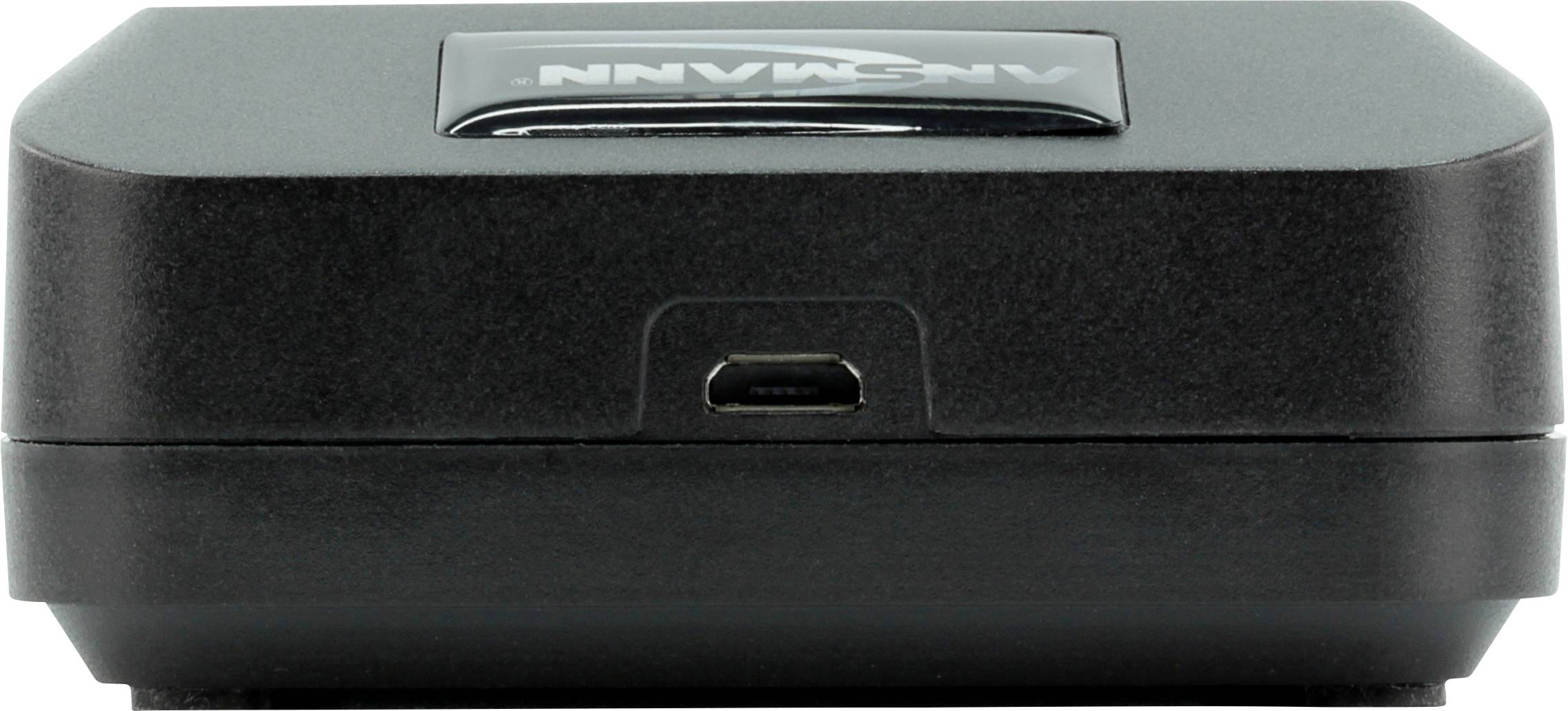

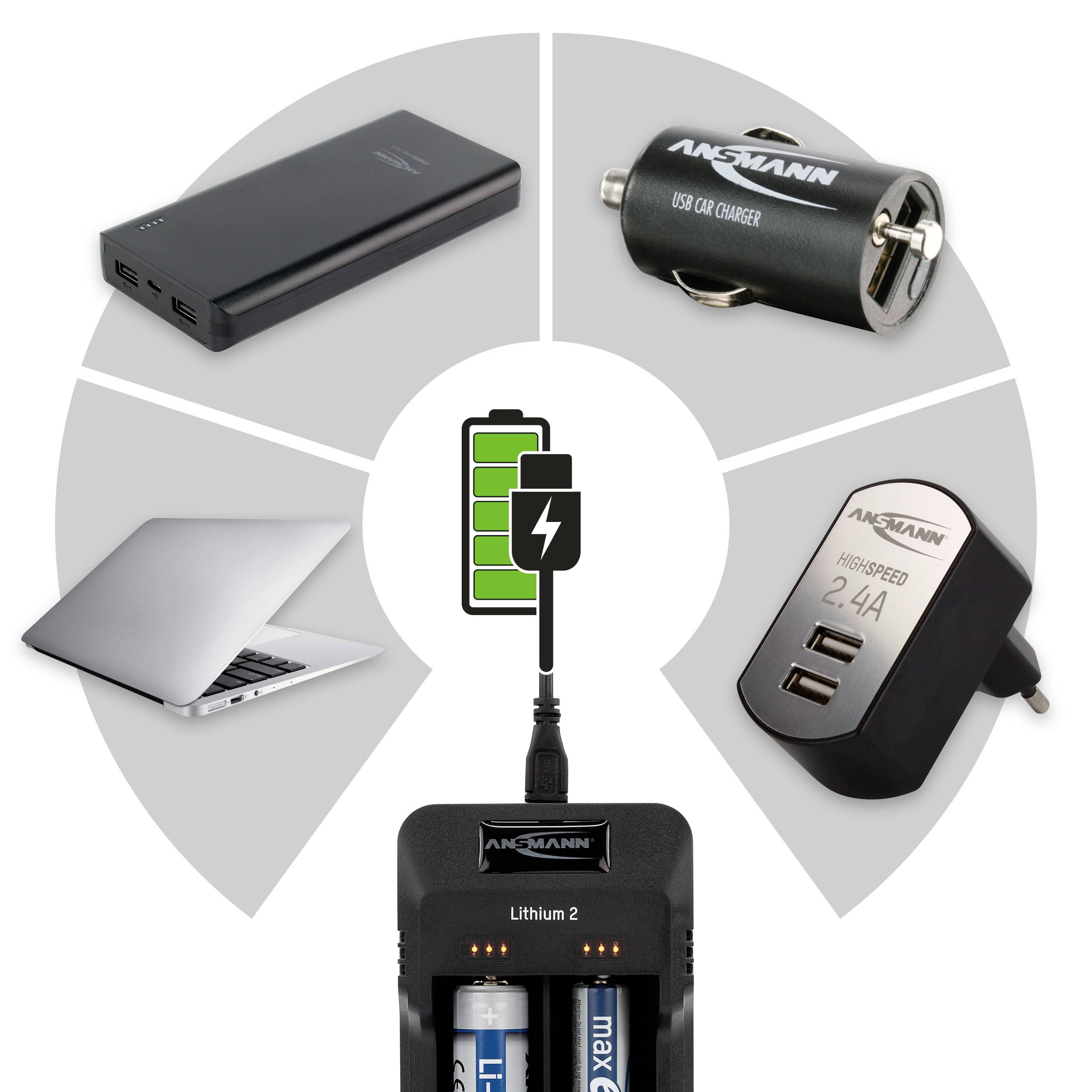

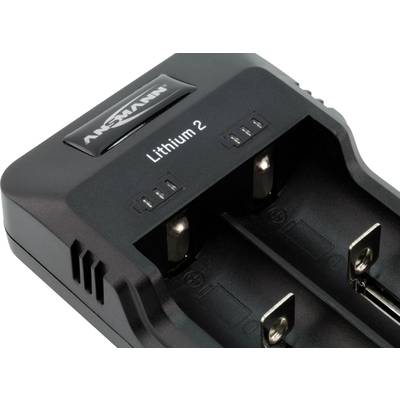

for the easy and quick reading of the charging status of your batteries are a colored LED display integrated over each bay. This also indicates the batteries inserted incorrectly. The lithium 2 charger from ANSMANN can be operated with any commercially available 5V 1A USB adapter. ANSMANN recommends the 2.4A USB High Speed Charger with smart IC for optimal charging, which allows the charging time of the cells to be almost halved.
This text is machine translated.

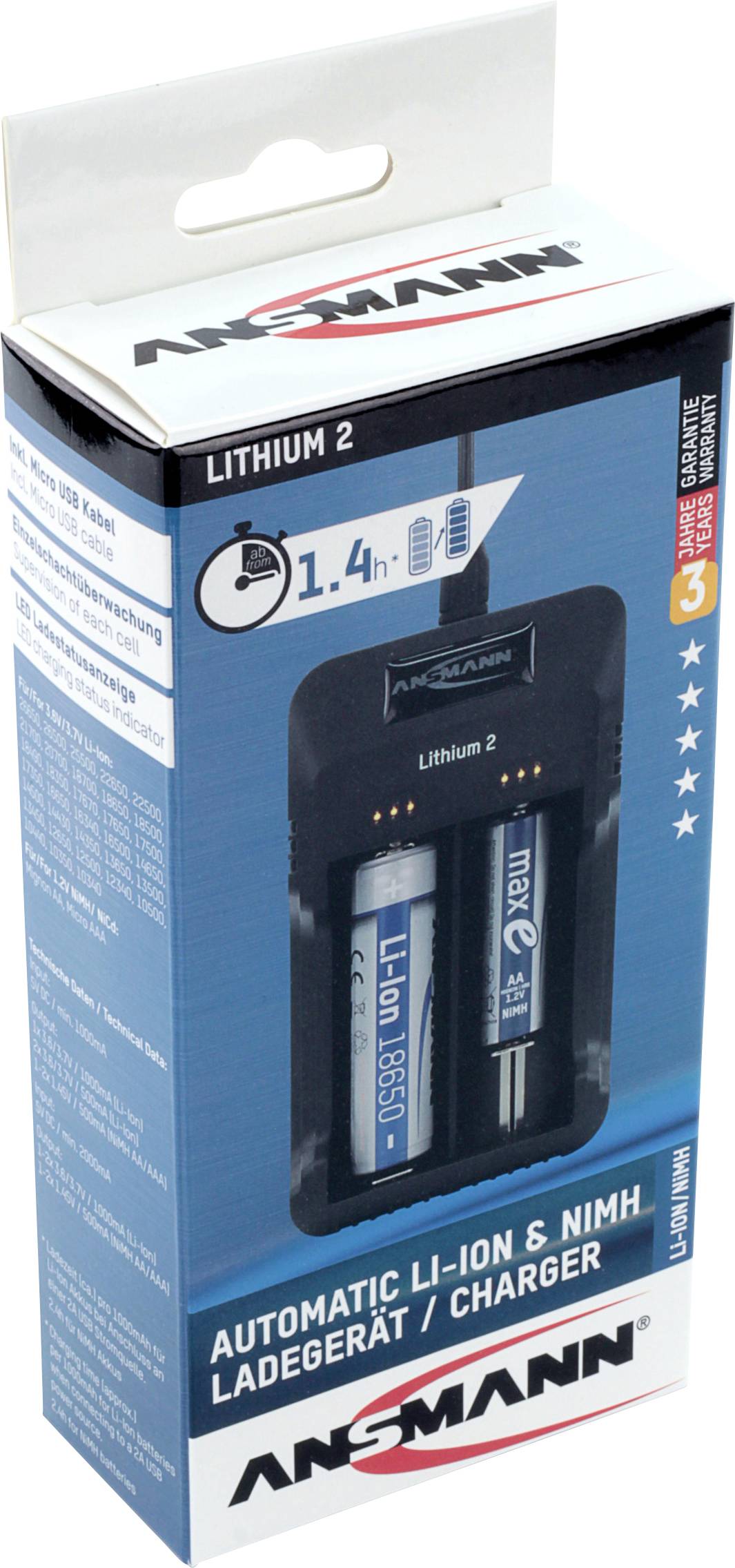

Scope of delivery

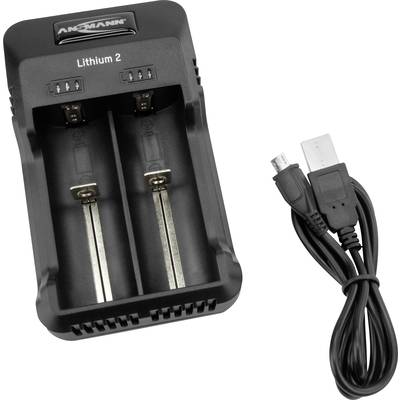

- Charger
- Micro USB cable
- User manual
