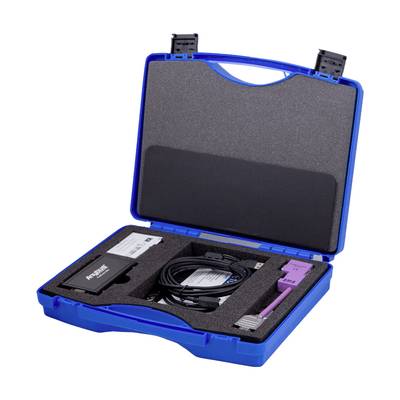

Anybus Troubleshooting Toolkit Ultra Plus Industrial Profibus monitor

Anybus ProfiTrace (plus kit) is a powerful analyzer for the diagnostics of PROFIBUS DP and PA networks. All the necessary functions are combined in a single tool.

With a software package and a hardware, technicians can test the entire PROFIBUS network and go for troubleshooting. This means a huge reduction in equipment, weight, costs and knowledge.

Anybus ProfiTrace (plus kit) is an indispensable tool for maintenance, commissioning, troubleshooting and diagnostics as well as for product development. Typical sources of error such as noise, reflections, dips in voltage, termination problems, double addressing, Cable breaks or configuration errors can be easily detected with the tester. Random errors such as overshoots, faulty telegrams, message frame repetitions and error diagnostics are recorded and recorded. The result can be exported as a detailed, industry-standard report. Predictive maintenance and plant management are now actually possible.

This extraordinary tool that fits in your pocket has already set new standards worldwide. It greatly expands the capabilities of service and maintenance technicians and engineers.

The USB hardware platform ProfiCore Ultra is internally equipped with a digital high-speed oscilloscope, with which bus signals up to a data rate of 12 Mbps can be analyzed. With the help of the PA Probe Ultra, the PROFIBUS Tester can also be used in process automation for the analysis of PA networks.
