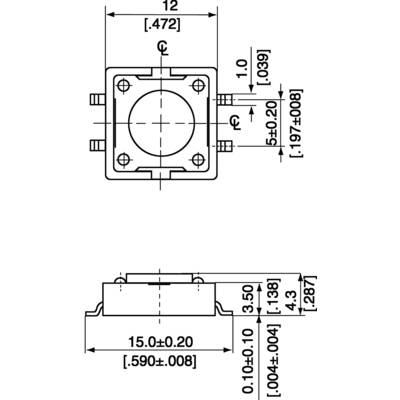

Stroke drawing/circuit diagram
Stroke drawing/circuit diagram
APEM DTSM-21N-V-B DTSM-21N-V-B Pushbutton 12 V DC 0.05 A 1 x Off/(On) momentary (L x W x H) 12 x 12 x 4.3 mm 1 pc(s)
EAN:
Part number:
Item no:
Product type
Pushbutton
Lighting type
None
Switch position
1 x Off/(On)
Contact type
1 maker
Connection
SMD
Datasheet (PDF)
856 Piece(s)
Sales and shipping:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 0.51
10
8% = € 0.04
€ 0.47
25
12% = € 0.06
€ 0.45
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 0.51 / piece)
€
Technical specifications
- Product type
Pushbutton
- Switch/button features
Protruding
- Casing/button colour
Black
- Functions
momentary
- Type
SMD
- Lighting type
None
- Switch position
1 x Off/(On)
- Contact type
1 maker
- Contact material
Silver plated
- Connection
SMD
- Contact resistance
max 100 mΩ
- Switching voltage
12 V DC
- Switching current (max.)
0.05 A
- Min. temperature
-25 °C
- Max. temperature
+70 °C
- Length
12 mm
- Width
12 mm
- Height
4.3 mm
- Electrical lifespan
500 000 Betätigungen
- Actuating force
1.6 N
- Content
1 pc(s)
- Dim
(L x W x H) 12 x 12 x 4.3 mm
- Front panel cut-out
12 x 12 mm
- Type
DTSM-21N-V-B
- Switching capacity
50 mA/12 V DC
- Temperature range
-25 - +70 °C
Documents & Downloads
Datasheet
Datasheet 707589 APEM DTSM-21N-V-B DTSM-21N-V-B Pushbutton 12 V DC 0.05 A 1 x Off/(On) momentary (L x W x H) 12 x 12 x 4.3 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 707589 APEM DTSM-21N-V-B DTSM-21N-V-B Pushbutton 12 V DC 0.05 A 1 x Off/(On) momentary (L x W x H) 12 x 12 x 4.3 mm 1 pc(s)
Description
Single-pole pushbutton for SMD technology with tactile touch, also suitable for use under membrane keypads.
Hints
Re switch position: content in parentheses describes the n/o and n/c contact constellation
