APEM IKD0603000 DIP switch Number of pins 6 SMD 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Show alternatives
Sales and shipping:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 1.51
10
8% = € 0.12
€ 1.39
25
11% = € 0.17
€ 1.34
Volume discounts vary depending on the seller
You save € 0.00
Total (€ 1.51 / piece)
€
Technical specifications
- Type
SMD
- Number of pins
6
- Type
SMD
- Switching capacity
not switched 100 mA/50 V/DC, switched 100 mA/20 V DC
- Switch position
Off/On

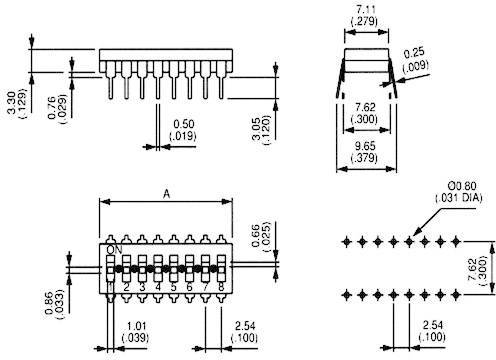

- Dimensions length (A)
16.18 mm
- CS
2.54 mm
- Electrical lifespan
(Max. 80 mΩ) 2000 cycles
- Insulation resistance
(500 V/DC) at least 1000 MΩ
- Contact resistance
(Initial value) max. 20 mΩ, (after 2000 cycles) 80 mΩ
- Dielectric strength
500 V DC
- Type
IKD0603000
- Content
1 pc(s)
- Temperature range
-40 - +100 °C
- Product type
DIP switch
