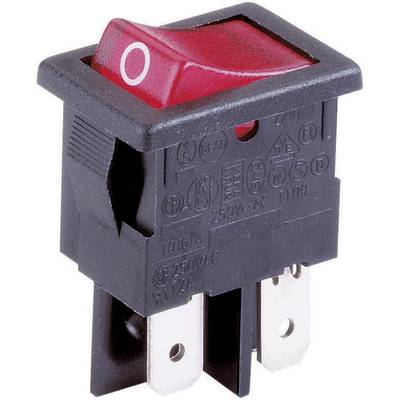

Arcolectric (Bulgin Ltd.) H 8553 VB NAG Flip switch H 8553 VB NAG 230 V AC 10 A 2 x Off/On latch 1 pc(s)
EAN:
Part number:
Item no:
Product type
Flip switch
Casing/button colour
Black
Red
Front panel cut-out
19.2 x 13 mm
Functions
latch
Lighting type
Area illumination
Datasheet (PDF)
78 Piece(s)
Sales and shipping:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 2.53
10
8% = € 0.19
€ 2.34
25
10% = € 0.26
€ 2.27
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 2.53 / piece)
€
Highlights & Details
Illuminated miniature rocker switch
Technical specifications
- Peak switch-on current: max. 75 A
- Plug connection: 4.8 x 0.8 mm
- Product type
Flip switch
- Casing/button colour
Black
Red
- Front panel cut-out
19.2 x 13 mm
- Functions
latch
- Lighting type
Area illumination
- Colour
Red
- Bulb type
Glow lamp
- Switch position
2 x Off/On
- Print motif
0
- Connection
Type C CEE 7/16 plug 4.8 mm
- Switching voltage
230 V AC
- Switching current (max.)
10 A
- Front panel thickness
3 mm
- Content
1 pc(s)
- RoHS-compliant
Yes
- Type
H 8553 VB NAG
- Type
2-pole On/Off
- Switching capacity
10 (6) A/250 V AC
- Switching current
10 A
- Type
H 8553 VB NAG
Documents & Downloads
Datasheet
Datasheet 700053 Arcolectric (Bulgin Ltd.) H 8553 VB NAG Flip switch H 8553 VB NAG 230 V AC 10 A 2 x Off/On latch 1 pc(s)
Description
For "snap-in mounting".
Hints
Re switch position: content in parentheses describes the n/o and n/c contact constellation
