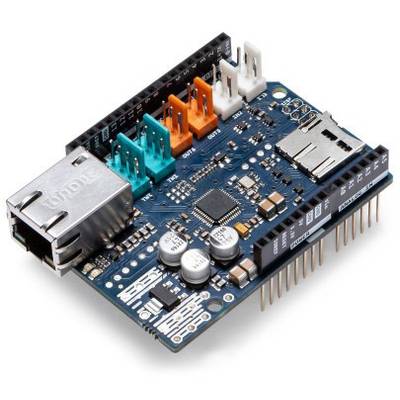

A blue electronic board with various ports, including an Ethernet port and coloured connectors, as well as an SD card slot.

Arduino Starter Kit with circuit board and instructions to support Arduino projects. Includes acknowledgement of support.

Arduino Shield with Ethernet connection, multiple digital and analogue ports; enables extended network connectivity for projects.

Electronic circuit board with the inscription 'Arduino Ethernet Shield', blue background, connectors and labels for network connections.

1/4

59 Piece(s)

Sales and shipping:

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 27.72 / piece)

€

Report legal concerns

Highlights & Details

Arduino becomes Ethernet-capable!

The Arduino Ethernet Shield 2 is available in two versions: One with (A000025) and one without (A000024) PoE (power over Ethernet). The Shields are designed to integrate a fast Internet connection into Arduino board designs. Other shields can be stacked directly onto the Ethernet Shield, which was designed to provide optimal integration of functionality into your designs. Both shields are equipped with the Ethernet chip W5500 from Wiznet, which provides an IP stack to support TCP and UDP protocols. The W5500 also supports up to 8 slot connections simultaneously.

Technical specifications

Compatible with: Arduino UNO

Series: Core

Product type: Development board

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1969882 Arduino Ethernet Shield 2 Development board

Information

Information 1969882 Arduino Ethernet Shield 2 Development board

Download

Download 1969882 Arduino Ethernet Shield 2 Development board

Description

Version 2 has a built-in microSD card slot as opposed to standard-size SD cards. The new version 2 also offers greater compatibility with Arduino boards – the previous version did not support the Mega board.

What was ich needed to use the version 2 shield?

All was needed was an Arduino board, a 5 V power supply (this comes from the Arduino board), an Ethernet controller, 10/100 Mbit connection speed and a connection to an Arduino via an SPI connection.
