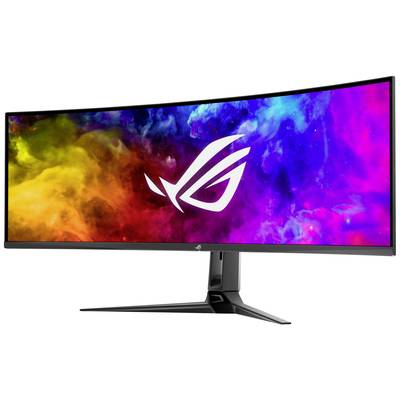

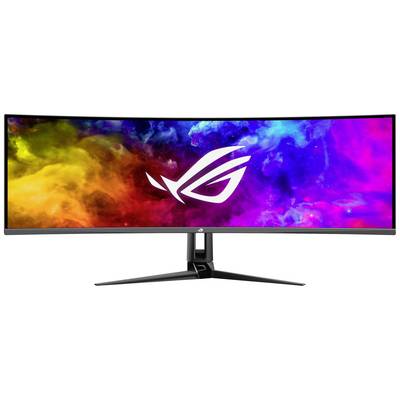

Asus PG49WCD LED EEC F (A - G) 124.5 cm (49 inch) 5120 x 1440 p 32:9 0.03 ms HDMI™, DisplayPort, Headphone input, USB ty

Highlights & Details
Asus PG49WCD LED
- Screen size 124.5 cm (49 inch) UWQHD, 5120 x 1440 p;Response time: 0.03 msEnergy efficiency rating (calc): F (A - G)
- Interfaces: HDMI™, DisplayPort, Headphone input, USB type A, USB C®, S/PDIF;Blue light reduction, Flicker-free technology, Tiltable, VESA Mount 100 x 100 mm, Headphone jack, Kensington lock, Height adjustable, Swivelling, Curved, Ultra WQHD resolution, Freesync, G-Sync
Technical specifications
- Product type
LED
- Resolution (max.)
5120 x 1440 p
- Screen size diagonal (cm)
125 cm
- Screen size diagonal (inches)
49 inch
- Screen size diagonal (inches)
49 inch
- Image format
32:9
- Panel technology
OLED
- Frame rate
144 Hz
- Response time
0.03 ms
- Brightness
250 cd/m²
- Contrast ratio (dyn)
100000000 : 1
- Static contrast ratio
1500000 : 1
- Dot pitch
0.233 mm
- Factory colour
Black
- Interfaces
HDMI™
DisplayPort
Headphone input
USB type A
USB C®
S/PDIF
- No. of DisplayPort
1 x
- No. of HDMI ports
1 x
- No. of USB ports
4 x
- No. of USB 3.0 ports
1 x
- Features
Blue light reduction
Flicker-free technology
Tiltable
VESA Mount 100 x 100 mm
Headphone jack
Kensington lock
Height adjustable
Swivelling
Curved
Ultra WQHD resolution
Show more
- Inclination
-5/+20
- Adjustable height
100 mm
- Swivel angle
30°
- Power consumption (standby)
0.5 W
- Hor. viewing angle
178°
- Vertical viewing angle
178°
- Screen coating
Matt
- Adaptive-sync technology
AMD FreeSync Premium Pro
NVIDIA G-SYNC
- Curved monitor
Yes
- Monitor curvature
1800R
- Width
1196 mm
- Height
527 mm
- Depth
283 mm
- Weight
11.7 kg
- Power supply (details)
100 - 240 V
- Dim
(W x H x D) 1196 x 527 x 283 mm
- Screen size/position settings
Height
Tilt
Pivoting
- Display size
48 inch - 50 inch
- Display type
LED backlit
- Range of uses
Gaming
Design
Media
- Display resolution mode
UWQHD
- Wall mounting option
100 x 100 mm VESA standard
F (A - G)
- Screen resolution
Ultra Wide Dual QHD (5120 x 1440 Pixel)
- Display (cm)
124.5 cm
42 kWh/year
- Power consumption (off)
0.3 W
- Power consumption (ON)
47 W
- Display
124.5 cm (49 inch)
Documents & Downloads
Datasheet
Datasheet 3028720 Asus PG49WCD LED EEC F (A - G) 124.5 cm (49 inch) 5120 x 1440 p 32:9 0.03 ms HDMI™, DisplayPort, Headphone input, USB ty
User & Safety Instructions
User & Safety Instructions 3028720 Asus PG49WCD LED EEC F (A - G) 124.5 cm (49 inch) 5120 x 1440 p 32:9 0.03 ms HDMI™, DisplayPort, Headphone input, USB ty
Description
EXPERIENCE SUPER ULTRA WIDE
Experience pin-sharp, rapid pictures and win the upper hand with the QD-OLED-technology. The Swift OLED PG49WCD's 49-inch 1800R curved QD OLED panel has a DQHD resolution (5120 x 1440) and offers a fast frame rate of 144 Hz to provide smooth gameplay.
DETAILED IMAGES AND CLEARLY DEFINED TEXT
The ROG Swift OLED PG49WCD is equipped with the latest generation of QD OLED panels. The sub-pixel layout provides clearer, more detailed pictures and sharper text in order to improve your viewing experience.
LOWEST BLACK COLOR TONES AND HIGH PERCEPTIBLE BRIGHTNESS
The QD-OLED technology in Swift OLED PG49WCD produces deep black tones and ensures vivid colors at any brightness level. The extraordinary contrast lets each detail stand out even in the darkest scenes.
ULTRA-REALISTIC COLORS
Real 10-bit color depth and a cinema-ready DCI-P3 color space of 99% provide for incomparable realistic game worlds. Each Swift OLED PG49WCD gaming monitor is < pre-calibrated to Delta E 2 in order to ensure the best color reproduction thanks to the Quantum Dot technology.
UNBELIEVABLY FAST RESPONSE TIME FOR JUDDER-FREE GRAPHICS
With an ultra fast GTG reaction time of 0.03 ms, the Swift OLED PG49WCD displays rapid action scenes fluently and provides for latency-free gameplay. Subtle advantages, such as the wipe-free scrolling of text, also improve your daily work.
IMPROVED TAILOR-MADE HEATSINK AND ADDITIONAL HEAT-CONDUCTING PAD
The Swift OLED PG49WCD has a unique, tailor-made heatsink design, which maximizes the heat dissipation through an extremely compact layout and thus offers a larger room for cooling. In addition, there is a heat conduction pad on the panel, in order to effectively cool the monitor. The innovative design of the back side of the monitor also includes ventilation openings on the top, which improve the efficiency of the heat dissipation and effectively discharges the heat from the system, in order to reduce the risk of burning.
GRAPH FILM PLATE
The Swift OLED PG49WCD is equipped with a graph film behind the QD OLED panel to keep operating temperatures low. Graphene is the thinnest and strongest nanomaterial in the world and has a high thermal conductivity that helps to dissipate heat effectively.
UNIFORM BRIGHTNESS
When enabled, the ROG-exclusive Uniform Brightness setting in the OSD menu reduces peak brightness to keep the level consistent for better visibility, even if you change the size of bright white windows. This also makes marathon gaming sessions much more pleasant for the eyes.
VERSATILE WORKSTATION
The Swift OLED PG49WCD 49-inch Super Ultrawide Gaming Monitor is simultaneously a versatile workstation display and is thus the perfect choice for professionals who need a productive environment for work, creation and entertainment.
ROG Smart KVM: SEAMLESS SWITCHING BETWEEN TWO DEVICES
Enjoy the best of both worlds with ROG Smart KVM. This innovative feature allows you to control two devices connected to the monitor with a keyboard and a mouse. You don't need any additional hardware or software. Simply plug in and easily switch between gaming and work on a screen. You can even copy and paste files or move between two devices with Smart KVM via USB 3.2, and WAS enables ultra-fast file transfers that are up to 10 times faster than USB 2.0.
Asus display resistance
With the brand new Asus DisplayWidget Center software you can easily change monitor settings and OLED-related functions via an intuitive interface with the mouse - you do not need to access the OSD-menu anymore.
EXPERIENCE SUPERIOR QUIETNESS AND RESPONSIVENESS
The Swift OLED PG49WCD features AMD FreeSync™ Premium Pro technology for ultra-smooth, low-latency viewing.
EXTENSIONS IN GAME
The ASUS-exclusive, integrated GamePlus hotkey offers improvements in the game, so that you can get more out of every game. The GamePlus functionality was developed in collaboration with professional players and enables players to train and improve their gaming abilities. The Asus GameVisual technology has seven preset display modes to optimize the display for different types of content. This unique function can be called up very easily via a hotkey or the OSD-setting menu. The Asus flicker-free technology certified by TÜV Rheinland prevents flickering and provides for a pleasant viewing experience. This technology helps to minimize eye fatigue and other symptoms typically associated with long viewing times. The new hardware-based Asus low blue light technology reduces potentially harmful blue light emissions while providing better color performance than monitors with software-based filter solutions.
EASY TO USE
Extensive connectivity options, including a DisplayPort™ 1.4 (DSC),HDMI® 2.1, USB-C with 90W Power delivery and a USB hub, provide support for a wide range of multimedia devices. The specially developed, hollow pedestal can be inclined, swiveled and adjusted in the height, in order to find the ideal viewing position. The screen is also VESA compatible for wall mounting.
This text is machine translated.
Features
- 49-inch Curved Super Ultrawide (5120 x 1440) QD OLED gaming monitor with 144 Hz frame rate and 0.03 ms response time for immersive gaming
- Highly efficient, customized heat sink, improved airflow design and graph back for improved heat management to reduce burn-in risk
- High observable peak brightness of 1000 nits (3% of the screen with HDR switched on), 99% DCI-P3 color space and Delta E < 2 color difference for amazing HDR performance
- Built-in ROG Smart KVM automatically switches a single keyboard and mouse between two devices without additional hardware or software and even copies files between the devices via USB 3.2 connectivity
- Optional uniform brightness setting provides consistent brightness levels
- The Asus DisplayWidget Center enables easy OLED and monitor settings by mouse click
- Extensive connectivity options such as DisplayPort™ 1.4 (DSC), HDMI (v2.1), USB-C with 90 W Power delivery
Scope of delivery
- Cable
- Quick guide.
