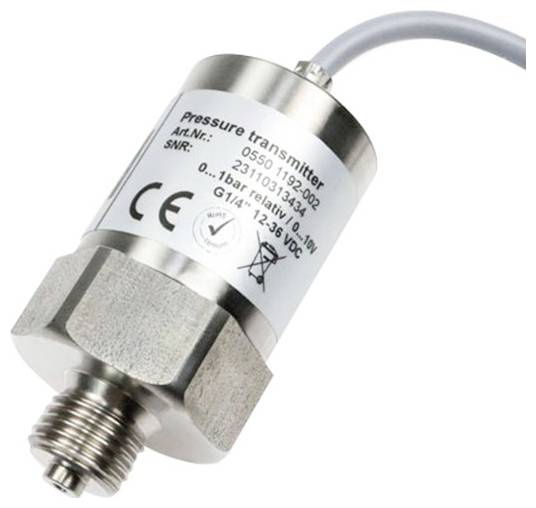

Image similar
1/2

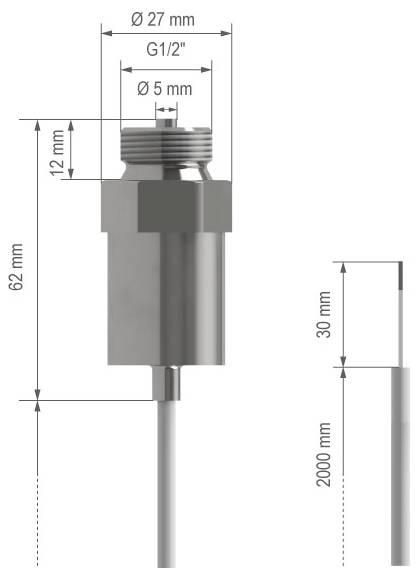

Image similar
B + B Thermo-Technik Pressure transducer 1 pc(s) 0550 1382-002
EAN:
Part number:
Item no:
Product type
Pressure transducer
Model
Relative pressure
Max. operating voltage
5.30 V DC
Type
0550 1382-002
Outputs
I2C
Datasheet (PDF)
2 Piece(s)
Sales and shipping:
Number
Total (€ 117.64 / piece)
€
Only 2 Piece(s) available
Highlights & Details
Pressure transmitter with 2m-cable
- High-quality stainless steel housing; very sturdy construction
Technical specifications
- Output signal, digital, I²C, burst pressure, 5 bar, name, stainless steel pressure transmitter, pressure measuring type, relative pressure, application temperature, -20...+80 °C, electrical connection, cable 2m, EMC emission, EN 61000-6-3: 2011, EMC immunity, EN 61000-6-1: 2007, pressure measuring range, 0...1 bar, process connection, G1/2", residual error linearity/hysteresis, <±0.4% FS, protection class, IP65, power supply, 3.0...5.3 V DC / 5mA, temperature coefficient, TCO < ±0.015 % FS / K ; < TCG ±0.010 % FS / K, material housing, stainless steel 1.4305, material, sensor: ceramic measuring cell, Allowable Burden, Ra[?]<(UV[volts]-10V) / 0.02 A (with output 4…20 mA)
- Product type
Pressure transducer
- Type
0550 1382-002
- Model
Relative pressure
- Outputs
I2C
- Min. operating voltage
3 V DC
- Max. operating voltage
5.30 V DC
- Operating voltage
3 - 5.30 V DC
- Burst load
5 bar
IP65
- RoHS-compliant
Yes
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 3089288 B + B Thermo-Technik Pressure transducer 1 pc(s) 0550 1382-002
User & Safety Instructions
User & Safety Instructions 3089288 B + B Thermo-Technik Pressure transducer 1 pc(s) 0550 1382-002
Description
These pressure transmitters with digital output and 2m connection cable are Ideal suitable for measuring static and dynamic relative pressures in liquids or gases.
