Buy Basetech BT-305 Bench PSU (adjustable voltage) 0 - 30 V DC 0 - 5 A 150 W No. of outputs 1 x

A digital laboratory power supply with display for current (5.30 A) and voltage (32.3 V); controls for current and voltage adjustment.

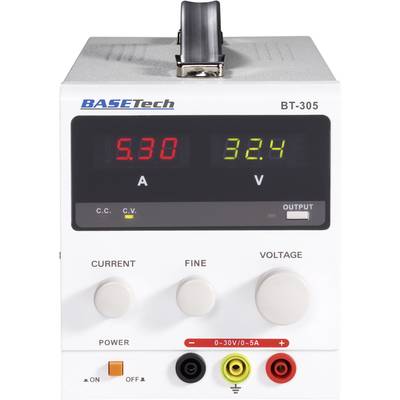

Laboratory power supply unit shows voltage reading of '32.4 V' and current reading of '5.30 A'. Regulators for voltage and current are available.

Power supply unit with digital display of voltage (5.30 V) and current (3.2 A). Equipped with rotary controls for current and voltage.

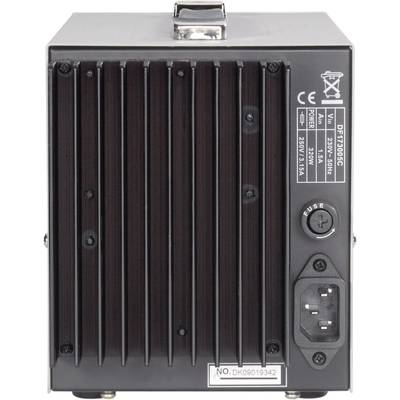

Back of an electronic device with heat sinks, power switch, fuse, and power cable connection. Model number and technical specifications visible.

1/4

Show alternatives

Sales and shipping:

Conrad Electronic Terms & Conditions

Total (€ 88.23 / piece)

€

Report legal concerns

Highlights & Details

Lab Mains Adapter BT-305

Single 0-30V variable output, 0-5A
Coarse and fine voltage adjustment
Automatic switching between constant current and constant voltage modes
Toggle output on/off, voltage and current remain displayed
Convenient carrying handle (PSU weighs 5.3kg)

Technical specifications

Type: BT-305

No. of outputs: 1 x

: 150 W

Technology: Linear regulated PSU

Dim: (L x W x H) 295 x 130 x 155 mm

Weight: 4.95 kg

Output current 1: 0 - 5 A

Height: 155 mm

Length: 295 mm

Width: 130 mm

: Manufacturer's standards (no certificate)

Type: Desktop

Input voltage: 230 V AC

Max. output current: 5 A

Output current (min.): 0 A

Output voltage (max.): 30 V DC

Output voltage (min.): 0 V DC

Connections: 4 mm Banana jack

Inputs: IEC 320 C14 panel plug

Type: Linear

Input voltage: 230 V AC

Output voltage 1: 0 - 30 V DC

Product type: Bench PSU (adjustable voltage)

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 513812 Basetech BT-305 Bench PSU (adjustable voltage) 0 - 30 V DC 0 - 5 A 150 W No. of outputs 1 x

Information

Information 513812 Basetech BT-305 Bench PSU (adjustable voltage) 0 - 30 V DC 0 - 5 A 150 W No. of outputs 1 x

Circuit diagramm

Circuit diagramm 513812 Basetech BT-305 Bench PSU (adjustable voltage) 0 - 30 V DC 0 - 5 A 150 W No. of outputs 1 x

Conformity certificate

Conformity certificate 513812 Basetech BT-305 Bench PSU (adjustable voltage) 0 - 30 V DC 0 - 5 A 150 W No. of outputs 1 x

Description

The lab mains adapter is used as a power supply for small low-voltage consumers. For easy handling, the operating elements and displays are aligned in a well-structured manner. The respective values for current and voltage can be read easily on the high-contrast LED display. The current and voltage values are set via rotary controls at the front of the device.
The lab mains adapter is overload- and short-circuit-proof due to its integrated current limitation and corresponds to protection category I. It is only approved for connection to earthed mains sockets and an alternating voltage of 230 V/50 Hz.
