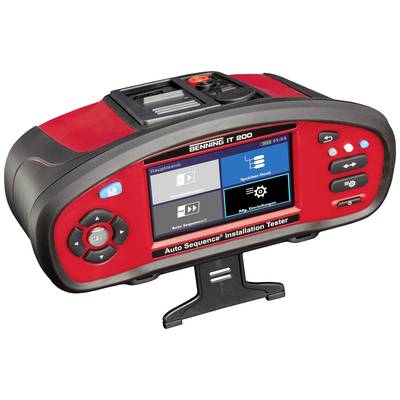

Benning IT 200 Electrical tester VDE standard 0100-600, 0105-100
EAN:
Part number:
Item no:
Datasheet (PDF)
12 Piece(s)
Do your needs go beyond this?
Sales and shipping:
Number
Total (€ 2,646.22 / piece)
€
Highlights & Details

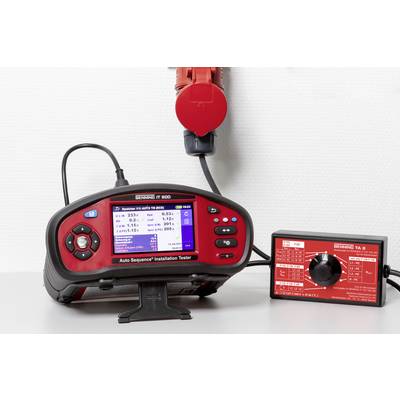

Auto Sequence® installation tester for testing electrical systems and testing EV charging stations (wallboxes) of charging mode 3
- 4.3" color touchscreen
- Innovative operating concept
- Single, Auto-TN, TT, IT and Auto Sequence® measurements
- Powerful Li-Ion rechargeable battery for long operating times
- Calibration certificate included in delivery
Technical specifications
- Low-ohm test: 0.01 Ω - 2000 ΩInsulation resistance (50/100/250/500/1000 V): 10 kΩ - 1000 MΩLine impedance 0.01 Ω - 10 kΩVoltage drop 0.1% - 100%Loop impedance: 0.01 Ω - 10 kΩShort circuit current: 0.01 A - 200 kA7 mA continuityVoltage 1 V - 550 V
- Product type
Electrical tester
Manufacturer's standards (no certificate)
- Reading category
CAT III 600 V
CAT IV 300 V
- Interfaces
USB
RS232
- Dim
(L x W x H) 252 x 111 x 165 mm
- Weight
1.6 kg
- Reading range (VDE)
Wave impedance
Loop impedance
Insulation resistance
Voltage
Frequency
Current
- DIN standard
DIN EN 50110
DIN IEC 60364-6
- Display type
Digital
- Width
111 mm
- Height
165 mm
- Length
252 mm
- Voltage supply
Rechargeable
- Type
IT 200
- VDE standard
0100-600
0105-100
- Features
built-in colour touchscreen
RCD/FI testing
Documents & Downloads
Datasheet
Datasheet 2575792 Benning IT 200 Electrical tester VDE standard 0100-600, 0105-100
User & Safety Instructions
User & Safety Instructions 2575792 Benning IT 200 Electrical tester VDE standard 0100-600, 0105-100
Information
Test Summary Report 2575792 Benning IT 200 Electrical tester VDE standard 0100-600, 0105-100
Security datasheet
Security datasheet 2575792 Benning IT 200 Electrical tester VDE standard 0100-600, 0105-100
Description
Auto Sequence® installation tester for testing electrical systems in accordance with DIN VDE 0100-600 (IEC 60364-6) and DIN VDE 0105-100 (EN 50110), including testing of FI/RCD-circuit breaker type B/ B+ (all-current sensitive) and type AC, A, F (mixed frequencies) as well as testing of EV charging stations (wallboxes) in accordance with VDE 0122-1 (DIN EN/ 61851-1) of IEC charging mode type 3. Further measurements via optional accessories such as TRUE RMS current, power and harmonics via Benning CC 4-1 clamp-on ammeter adapter (044166)/ Benning CC 4-2 (044167), earthing resistance by means of 3-conductor method via Benning earthing set (044113) or 2-clamp method via Benning CC 4-1 clamp-on ammeter adapter (044166)/ Benning CC 4-2 (044167), Illumination strength via Benning Luxmeter type B (044111) as well as the testing of EV charging stations (wallboxes) via the test adapter Benning EV 3-2 (044169) are possible. Specially designed Auto Sequences® and documentation are set up for testing EV charging stations (wallboxes). Operation is simple via the 4.3" color touch display and push buttons. Many functions complement the operating options, such as individual tests and pre-¬programd Auto-Sequence® measurements, order manager for the administration of test jobs, the creation of complex plant structures, free firmware up¬dates as well as a powerful 4400 mAh Li-ion battery pack.
This text is machine translated.
This text is machine translated.
Features
- Operation via 4.3" color touch display and push buttonsIndividual tests and pre-programd Auto-Sequence® measurementsAuto tests by pressing a button (Z Auto, RCD Auto, Auto-TN, -TN rcd, -TT, -IT)Order manager for managing test orders;Creation of complex plant structures including planned measurementsLarge measured value memory on 8 GB SD-cardCommander test plug for earthing contact socket with good/bad displayConnection for barcode scanner for identification of the measuring pointOnline voltage monitor for monitoring the test connectionsFree firmware-up-datesPowerful 4400 mAh Li-ion battery packBattery charging function integrated in the deviceBenning PC-Win IT protocol software 130-200Creation and transfer of extensive plant structures to Benning IT 200 for the rational initial and repeat testingMeasurement download and logging for electrical systems and e-charging stations (wallboxes)Supports the data import and the existing functional scope of Benning IT 130Export function of the test dataMultiple installation is possible at no additional costFree software updatesTouch voltageTRUE RMS voltagePE resistance under mains voltage (3-wire method)Testing of FI/RCD circuit breakers standard and delayed (S) (type AC, A, F, B, B+, EV RCD/ EV RCM (RDC-DD), MI RCD and PRCDs), AUTO test, trigger time, trigger current (ramp)
Scope of delivery
- Carrying case
- Software via download link
- USB-interface cables
- Commander-test plug
- Universal 3-conductor test lead (L = 1.5 m)
- 3 x test tips/alligator clips
- 8 GB SD card
- Rechargeable 4400 mAh battery pack
- Charger
- Short user guidelines
- Calibration certificate
Hints
Test adapter Benning EV 3-2 for testing wallboxes, current clamp adapter Benning CC 4-1/ Benning CC 4-2 for stakeless earth loop resistance measurement and other optional accessories are recommended.
System requirements
- Windows 10
