Buy BeQuiet POWER ZONE 2 750W PC power supply unit 750 W ATX 80 PLUS Platinum

Black power supply with fan and multiple ports on the side, labelled 'Power Zone 2'.

Black computer power supply 'be quiet! Power Zone 2' model Z2-750W with multiple connection options, with accompanying cable shown beside it.

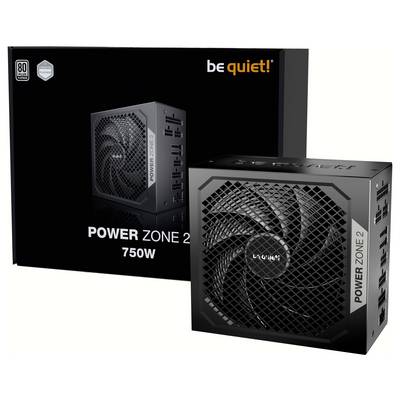

Power supply 'be quiet! Power Zone 2, 750W' in front of black packaging with 80 Plus Bronze seal. Large air opening for cooling.

Black PC power supply from be quiet! 'Power Zone 2' with modular connections and fan grille on top, suitable for gaming PCs.

Various black computer cables and cable ties on a white background, for connecting computer components.

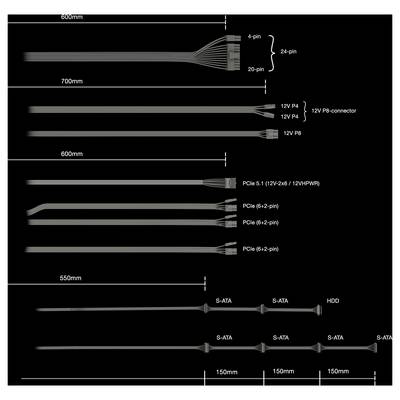

Cable Diagram for Computer: Contains multiple cables with lengths ranging from 550 mm to 700 mm, including 24-pin, 20-pin, PCIe, and S-ATA connectors.

1/7

30 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 117.64 / piece)

€

Report legal concerns

Highlights & Details

BeQuiet POWER ZONE 2 750W PC power supply unit

Power supply unit output 750 W
PCI-Express (6+2-Pin) 3x
Cable management Yes
80 PLUS Platinum

Technical specifications

80 Plus certification: 80 PLUS Platinum
Fan diameter 14 cm
Number of fans: 1 fans
Conformity of Waste Electrical and Electronic Equipment (WEEE): Yes

PSU output power: 750 W

3.3V DC: 20 A

Operating voltage: 100 - 240 V

5 V DC: 20 A

+12 V/DC (1): 62.5 A

-12V / DC: 0.3 A

+5V / DC SB: 3 A

4-pin Molex: 1

5-pin SATA: 6

6-pin PCIe: 3

Dim: (W x H x D) 150 x 86 x 160 mm

Weight: 3 kg

Factory colour: Black

Depth: 160 mm

Height: 86 mm

Width: 150 mm

Power rating: 501 - 750 W

ATX version: ATX 3.1

Cooling: Active

Features: ATX 3.1
PCIe Gen 5.1

Modular: Yes

Certification: 80 PLUS Platinum

Power supply (details): 100 - 240 V

Form factor: ATX

Product type: PC power supply unit

Screws included: yes

Operating temperature (T-T): 0 - 40 °C

Storage relative humidity (H-H): 0 - 95 %

Noise level: 15.8 dB

Peak power: 820 W

Maximum input current (@110V): 10 A

Maximum input current (@220V): 5 A

Shipping (inner) case width: 28.2 cm

Shipping (inner) case length: 65.1 cm

Shipping (inner) case height: 34.6 cm

Shipping (inner) case gross weight: 19.3 kg

Products per shipping (inner) case: 6 Stück(e)

Motherboard power cable length: 60 cm

CPU power cable length: 70 cm

PCI Express power cable length: 60 cm

Cable ties included: yes

Manual: yes

PCI Express power connectors (16-pin): 1

Number of +12V rail(s): 1

Mean time between failures (MTBF): 100000 h

Efficiency: 92.5 %

Hold time: 24.5 ms

On/off switch: yes

Operating relative humidity (H-H): 0 - 85 %

EPS power connector (8-pin): yes

CPU power connector (4+4 pin): yes

Power factor: 0.98

Storage temperature (T-T): -40 - 70 °C

Package weight: 3.21 kg

CPU P4 connector (4-pin): 1

Combined power (+3.3V): 120 W

Combined power (+12V): 750 W

Combined power (+5V): 120 W

Combined power (-12V): 3.6 W

Combined power (+5Vsb): 15 W

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3387016 BeQuiet POWER ZONE 2 750W PC power supply unit 750 W ATX 80 PLUS Platinum

Description

The Power Zone 2 750W is a 80 PLUS® Platinum-certified power supply and semi-passive zero-RPM cooling for efficient and quiet gaming sessions. With a 90° angled 12V-2x6-connection in the delivery and PCIe 5.1/ATX 3.1-compatibility the Power zone 2 supports the latest graphics cards and is a reliable investment for the future.

This text is machine translated.

Features

80 PLUS® Platinum and Cybenetics Platinum Efficiency Certifications (up to 94.2%)
Semi-passive zero-RPM cooling
The fans run for 2-5 minutes to avoid continuous start-up noise
Pure Wings 3 140 mm fan for quiet and efficient cooling
90° angled 12V-2x6 connection and PCIe 5.1/ATX 3.1 compatibility
Excellent voltage regulation and stability thanks to LLC technology
High-power capable 12V-cable
Unique look with distinctive mesh design
Product conception, design and quality control in Germany
