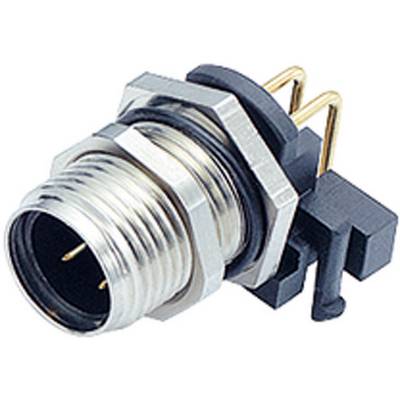

binder 99-3431-202-04 Sensor/actuator built-in connector M12 Plug, mount No. of pins (RJ): 4 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
16 Piece(s)
Sales and shipping:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 10.92
3
6% = € 0.61
€ 10.31
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 10.92 / piece)
€
Technical specifications
- Connector type
Plug, mount
- Connector standard
Sensor connector
- Connection side A
M12 plug, built-in
- Connection side B
Customisable
- No. of pins
4
- Nominal voltage
250 V
- Nominal current
4 A
- Nominal current - rounded value
4 A
- Connector cross-section (max.)
0.25 mm²
- Connection
Soldering
- Thread type connection side
M12
- Thread type (wiring and installation)
M12
- Contact material
CuZn
- Contact surface
Gold plated
- Sensor/actuator connectivity fittings
M12 rear panel fitting
IP68
- Min. temperature
-25 °C
- Max. temperature
+85 °C
- Seal type
Screw-on
- Content
1 pc(s)
- Cable Ø range
- Manufacturer part #
99-3431-202-04
- Type
99-3431-202-04
- Type
Built-in plug, dip soldering
- Nominal voltage (details)
250 V
- Nominal current (details)
4 A
- Thread type
M12
- Contamination level
3
- Pins
4
- Connection
Solder
- Temperature range
-25 - +85 °C
- RoHS-compliant
- Product type
Sensor/actuator built-in connector
Documents & Downloads
Datasheet
Datasheet 734340 binder 99-3431-202-04 Sensor/actuator built-in connector M12 Plug, mount No. of pins (RJ): 4 1 pc(s)
User & Safety Instructions
User & Safety Instructions 734340 binder 99-3431-202-04 Sensor/actuator built-in connector M12 Plug, mount No. of pins (RJ): 4 1 pc(s)
Description
Largely insensitive to vibration thanks to the constant spring clamping. Advantages of this connector include the short assembly time and uniform pressure of the lead on the contact. Durable quality from Binder®.
