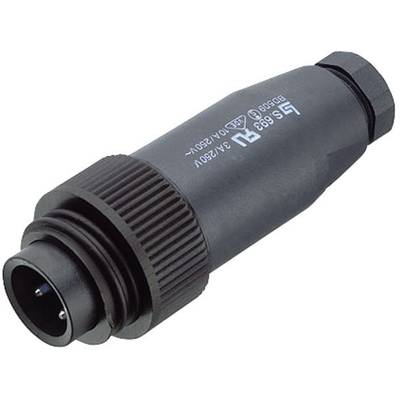

binder 99-4221-00-04 Standard Circular Connector Series 693 Nominal current (details): 16 A Pins: 3 + PE
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 15.12
3
5% = € 0.75
€ 14.37
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 15.12 / piece)
€ 16.80
-10 %
€
Highlights & Details
binder 99-4221-00-04 Standard Circular Connector Series 693 Nominal current (details): 16 A Pins: 3 + PE
- IP67
Technical specifications
- Connector type
Plug, straight
- Total no. of pins
3 + PE
- Connection
Screws
- Content
1 pc(s)
- Nominal current
16 A
- Nominal current - rounded value
16 A
- Seal
Screws
- Leading contact (PE)
Yes
- Nominal voltage
600 V
- Contact material
Ag (Silver)
- Cable Ø (max.)
9.5 mm
- Cable Ø up to
6 mm
- Cable Ø range
6 - 9.5 mm
- Cross-section range
2.5 mm² (max)
- Industrial packaging
Yes
IP67
- Series
693
- Manufacturer part #
99-4221-00-04
- Type
99-4221-00-04
- Type
Cable connector
- max. cross section
2.5 mm²
- Number of pins
3
- Nominal voltage (details)
6000 V
- Nominal current (details)
16 A
- Contamination level
3
- Connection angle
180°
- Cross section
0.5 - 2.5 mm²
- Certification marks
VDE, SEV, UL
20 - 14
- Pins
3 + PE
- Connection
Screw
- Cable diameter
6 - 9.5 mm
- Temperature range
-40 - +100 °C
- Reading category
III
- RoHS-compliant
- Size
PG9
- Product type
Bullet connector
Documents & Downloads
Datasheet
Datasheet 733623 binder 99-4221-00-04 Standard Circular Connector Series 693 Nominal current (details): 16 A Pins: 3 + PE
User & Safety Instructions
User & Safety Instructions 733623 binder 99-4221-00-04 Standard Circular Connector Series 693 Nominal current (details): 16 A Pins: 3 + PE
Information
Information 733623 binder 99-4221-00-04 Standard Circular Connector Series 693 Nominal current (details): 16 A Pins: 3 + PE
Certificate
Certificate 733623 binder 99-4221-00-04 Standard Circular Connector Series 693 Nominal current (details): 16 A Pins: 3 + PE
Description
· Connector with screw lock
· Protection class IP67
· Available with screw and solder connection
· VDE, SEV, UL approval
· Protection class IP67
· Available with screw and solder connection
· VDE, SEV, UL approval
