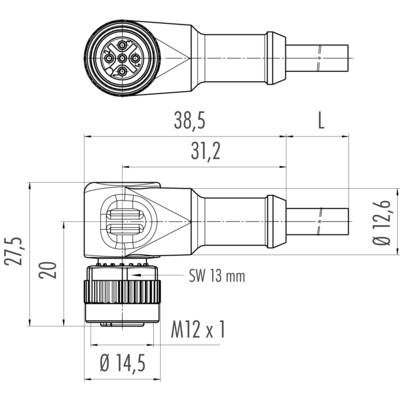

binder Sensor Cable For Inductive Proximity Sensors M12 X 1 Type (misc.) M12 x 1 Angled plug socket with screw locking
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 19.32
3
5% = € 0.96
€ 18.36
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 19.32 / piece)
€
Technical specifications
- Connector type
Socket, right angle
- Connector standard
Sensor connector
- Connection side A
Cable, open end
- Connection side B
M12 socket, right angle
- No. of pins
4
- Cable length
5.00 m
- Nominal voltage
250 V
- Nominal current
4 A
- Nominal current - rounded value
4 A
- Cross-section (sensor/actuator wiring)
0.34 mm²
- Factory colour
Transparent
- Thread type connection side
M12
- Cable colour
Black
- Contact material
CuSn
- Contact surface
Gold plated
IP68
- Features
+ LED
- Min. temperature
-25 °C
- Max. temperature
+90 °C
- Seal type
Screw-on
- Content
1 pc(s)
- Manufacturer part #
77 3634 0000 50003-0500
- Type
77 3634 0000 50003-0500
- Type
M12 x 1 Angled plug socket with screw locking
- Pins
3
- Product type
Sensor/actuator connector (pre-fab)
Documents & Downloads
Datasheet
Datasheet 158488 binder Sensor Cable For Inductive Proximity Sensors M12 X 1 Type (misc.) M12 x 1 Angled plug socket with screw locking
User & Safety Instructions
User & Safety Instructions 158488 binder Sensor Cable For Inductive Proximity Sensors M12 X 1 Type (misc.) M12 x 1 Angled plug socket with screw locking
Description
Connection of inductive proximity sensors.
