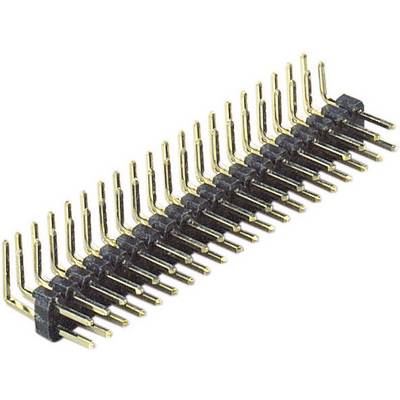

BKL Electronic Pin strip (standard) No. of rows: 2 Pins per row: 20 10120406 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
2
-
€ 1.67
6
8% = € 0.13
€ 1.54
10
11% = € 0.18
€ 1.49
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 2
Total (€ 1.67 / piece)
€
Highlights & Details
BKL Electronic Pin strip (standard) No. of rows: 2 Pins per row: 20 10120406 1 pc(s)
- Gold-plated
Technical specifications
- Connector type
Pin strip, right angle
- No. of rows
2
- Pins per row
20
- Total number of pins
40
- CS
2 mm
- Connection
Print
- Factory colour
Black
- Pin shape
Rectangular
- Nominal voltage
1000 V AC
- Nominal current
1 A
- Nominal current - rounded value
1 A
- Contact surface
Gold plated
- Contact material
Copper alloy
- Case material
Thermoplastic material
- Pin length (receptacle)
4 mm
- Pin length (PCB)
2.80 mm
- Separable
No
- Dim
(L x W x H) 40.0 x 10.04 x 6.8 mm
- Manufacturer part #
10120406
- Content
1 pc(s)
- Height
6.8 mm
- Length
40.0 mm
- Width
10.04 mm
- Industrial packaging
No
- Type
10120406
- Nominal current (details)
1 A
- Connection
-
- RoHS-compliant
Yes
- Max. temperature
+105 °C
- Min. temperature
-55 °C
- Product type
Pin strip (standard)
Documents & Downloads
Datasheet
Datasheet 741567 BKL Electronic Pin strip (standard) No. of rows: 2 Pins per row: 20 10120406 1 pc(s)
Description
Suitable for sockets for vertical assembly with separable contacts.
