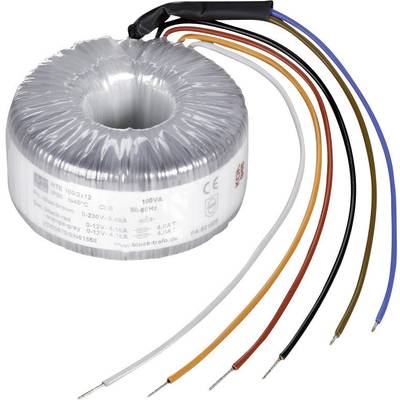

BLOCK RTE 60/2x12 Toroidal core transformer 60 VA 2.50 A
EAN:
Part number:
Item no:
Datasheet (PDF)
Show alternatives
Sales and shipping:
Number
Total (€ 43.69 / piece)
€
Highlights & Details
Toroidal - safety / Isolation transformer
- 2.50 A
- 60 VA
Technical specifications
- Product type
Toroidal core transformer
- Output voltage
12 V AC
- Output current
2.50 A
60 VA
- Input voltage
230 V
- Standards
IEC 61558-2-4; 2-6, DIN EN 61558-2-4; 2-6, VDE 0570 Part 2-4; 2-6
- Connection
Open end cable
- Type
RTE 60/2x12
- Dim
(Ø x H) 83 mm x 38 mm
- Design type
Open
- Frequency
50 - 60 Hz
- Weight
0.75 kg
- Content
1 pc(s)
- Insulation class
A
- Height
38 mm
- (Ø)
83 mm
- Test voltage
4000 V
- RoHS-compliant
Yes
- Protection class
II (prepared)
- Max. ambient temperature
+40 °C
60 VA
- Output voltage
2 x 12 V
- Input voltage
230 V
- Fitting method
Central attachment by means of two flexible insulating discs, a metal plate and screw
- Primary voltage
230 V
Documents & Downloads
Datasheet
Datasheet 710685 BLOCK RTE 60/2x12 Toroidal core transformer 60 VA 2.50 A
User & Safety Instructions
User & Safety Instructions 710685 BLOCK RTE 60/2x12 Toroidal core transformer 60 VA 2.50 A
Certificate
Certificate 710685 BLOCK RTE 60/2x12 Toroidal core transformer 60 VA 2.50 A
Description
Built-in, non-replaceable fuse for protection against thermal overload. High performance at low volume. Optimum Efficiency Double output voltage for series or parallel switching. Reinforced insulation between PRI and SEC. Very low magnetic field.
Scope of delivery
- Two flexible insulating, 1 metal plate and screw
