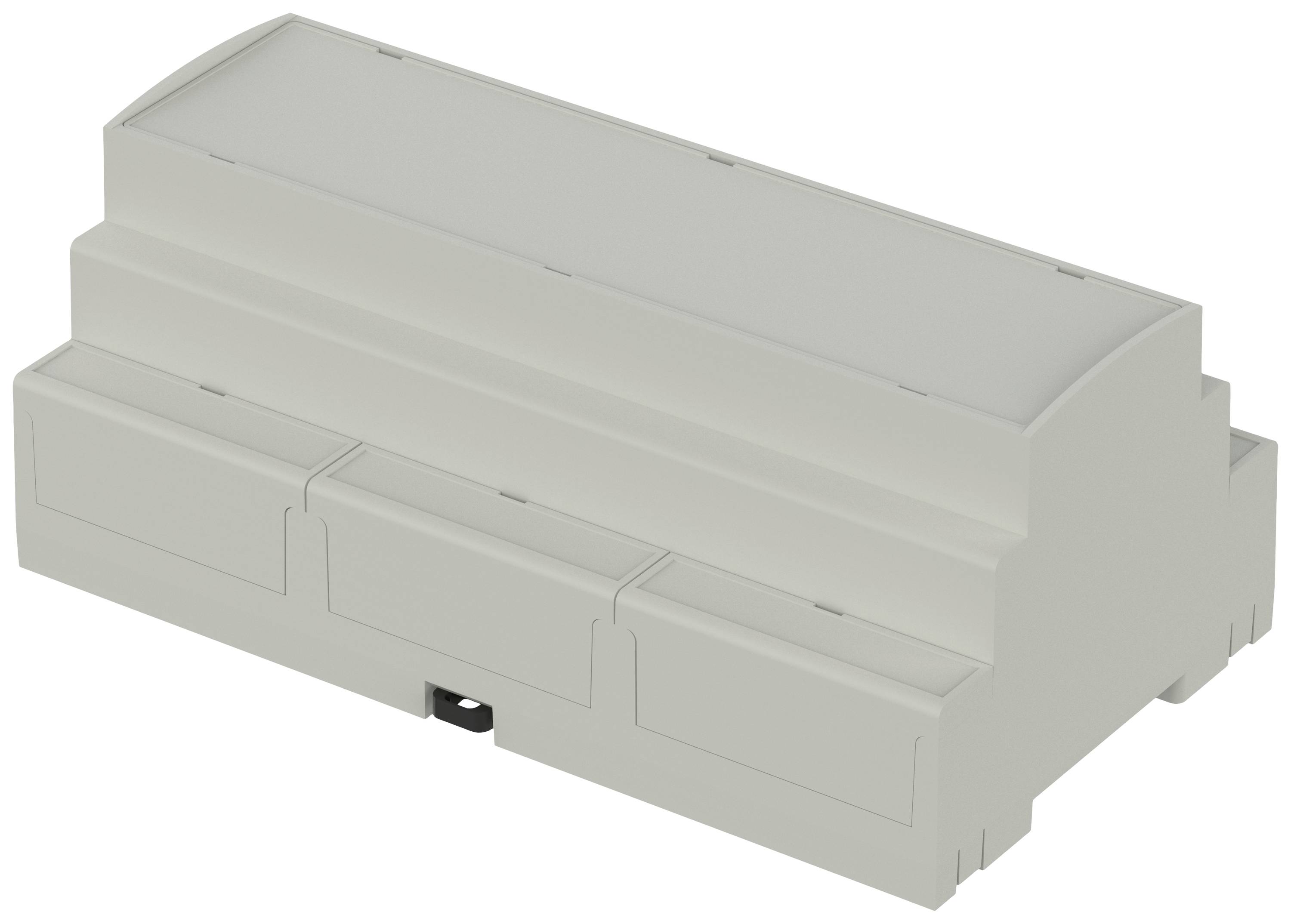

Bopla CombiNorm-Control CNC 157.5 SET DIN rail casing 159.80 x 89.80 x 65.30 Acrylonitrile butadiene styrene Grey-white
EAN:
Part number:
Item no:
Material
Acrylonitrile butadiene styrene
IP rating
IP20
Width
89.80 mm
Height
65.30 mm
Content
1 pc(s)
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 19.32
3
5% = € 0.96
€ 18.36
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 19.32 / piece)
€
Technical specifications
- Temperature resistance --25°C to +70°C.
- Material
Acrylonitrile butadiene styrene
IP20
- Factory colour
Grey-white (RAL 7035)
- Length
159.80 mm
- Width
89.80 mm
- Height
65.30 mm
- Content
1 pc(s)
- Dim
(L x W x H) 159.80 x 89.80 x 65.30 mm
- RoHS-compliant
Yes
- Internal depth
152.70 mm
- Inside height
50.50 mm
- Inside width
39.40 mm
- Type
CombiNorm-Control CNC 157.5 SET
- Product type
DIN rail casing
Documents & Downloads
Datasheet
Datasheet 2796349 Bopla CombiNorm-Control CNC 157.5 SET DIN rail casing 159.80 x 89.80 x 65.30 Acrylonitrile butadiene styrene Grey-white
Download
Download 2796349 Bopla CombiNorm-Control CNC 157.5 SET DIN rail casing 159.80 x 89.80 x 65.30 Acrylonitrile butadiene styrene Grey-white
Download 2796349 Bopla CombiNorm-Control CNC 157.5 SET DIN rail casing 159.80 x 89.80 x 65.30 Acrylonitrile butadiene styrene Grey-white
Description

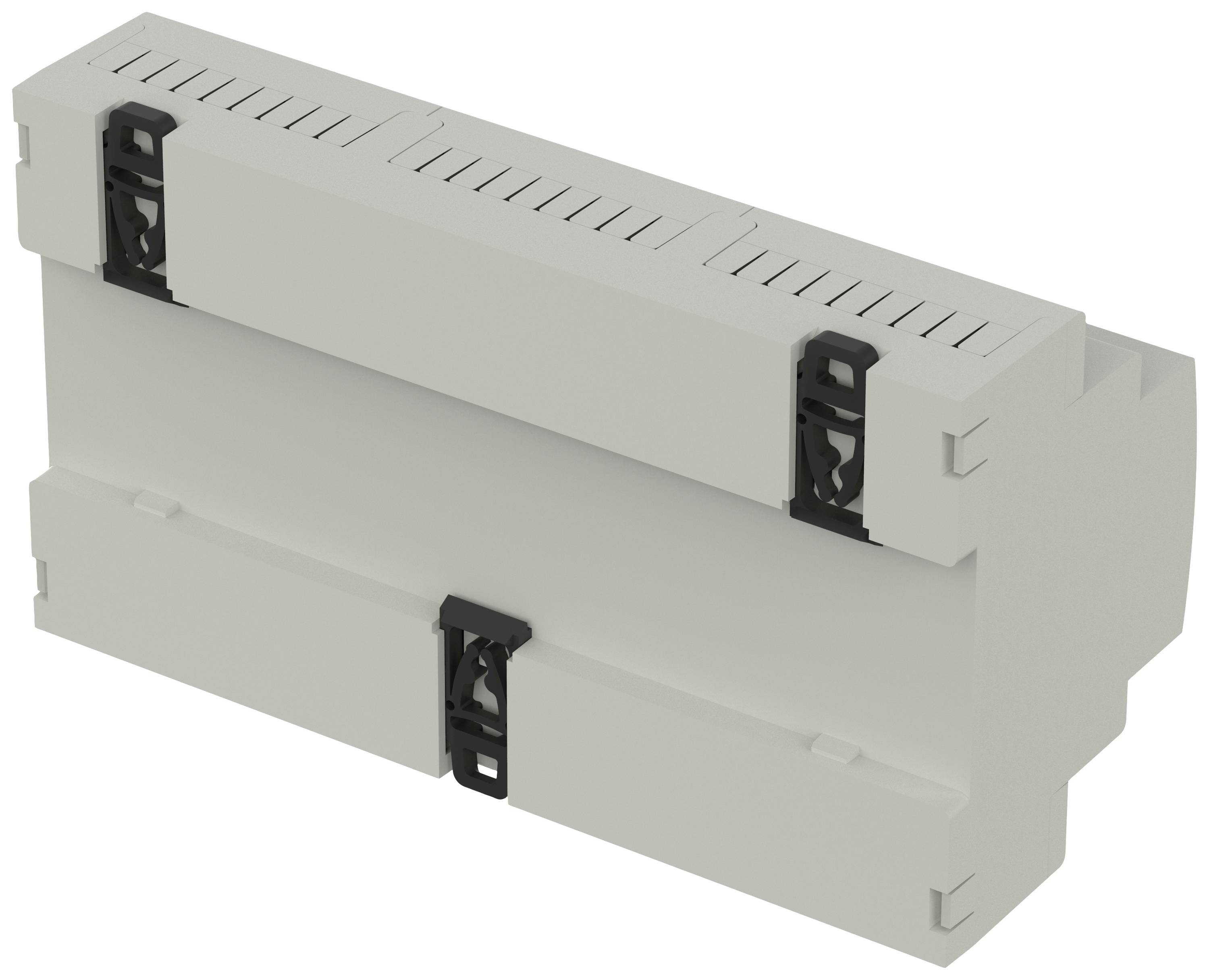

CombiNorm control is a modular housing system for electronic devices with a form factor according to DIN 4388. The integrated DIN rail mount allows quick and efficient mounting on a TS35 rail according to DIN EN 60715. Casing in various module widths are available (5 TE/M, 6 TE/M, 8 TE/M, 9 TE/M, 10 TE/M, 12 TE/M) The body comprises of few individual components, which can be locked together completely without the need for tools.
This text is machine translated.
This text is machine translated.
Features
- Housing material and terminals ABS flame-retardant

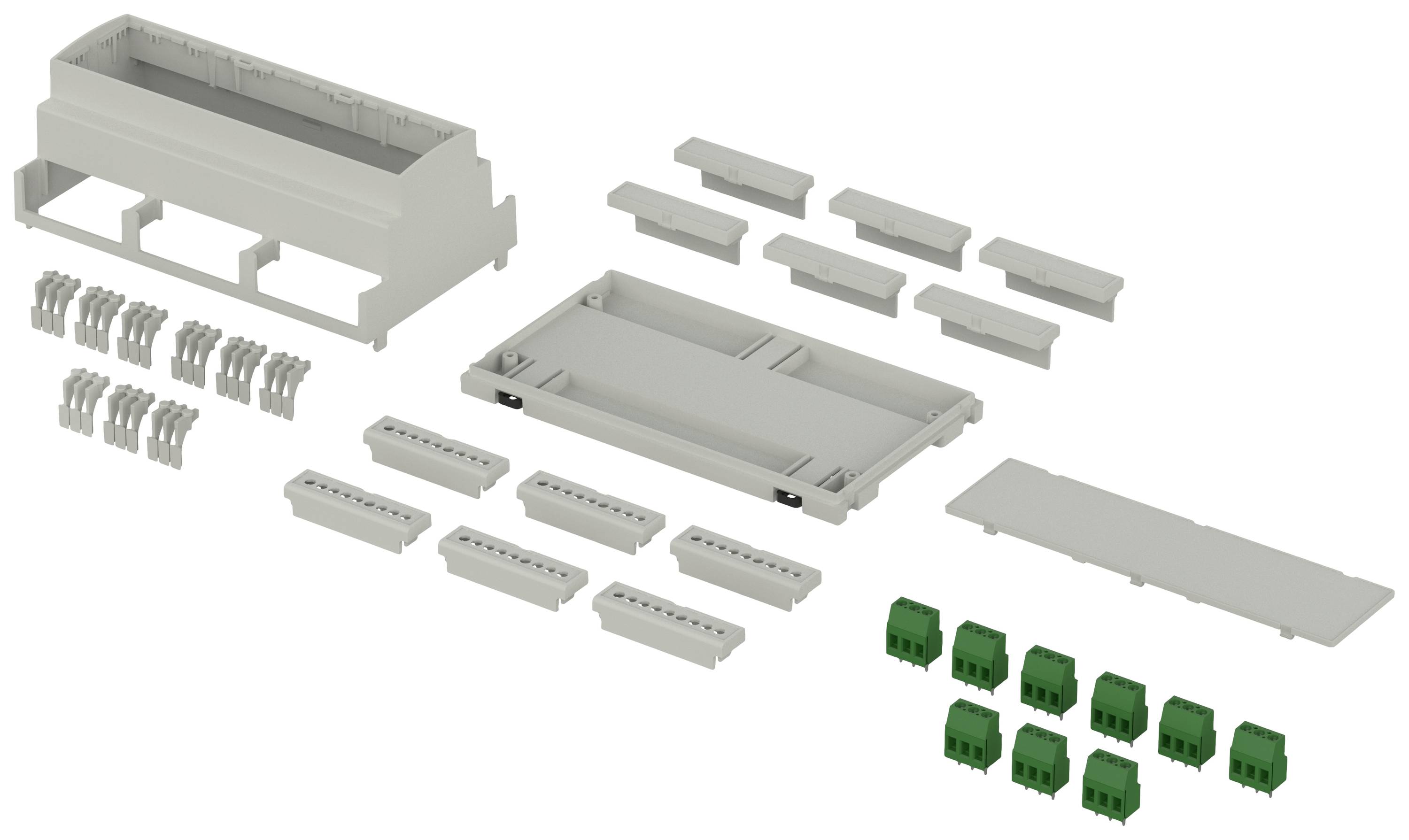

Scope of delivery
- CNC 157.5 housing, CNC 157.5 F housing cover, CNC KA 52.5-5.08 terminal cover raster 5.08, CNC KA 52.5-G terminal cover closed, CNC S-5.08 cover plugs for 3-pin terminals, 9 connection terminals AKZ 700/3 - 5.08 V
