Buy Bopla UM 52011 L-SET Desk casing (W x H x D) 223 x 72 x 199 mm Plastic Light grey, Agate grey 1 pc(s)

White, empty electronic enclosure box with ventilation slots and removable front cover, standing on four feet.

Two stackable grey metal enclosures with side ventilation slots and folding front panels, standing on short legs.

Electronic enclosure in two halves with various connector parts and screws, prepared for assembly.

A rectangular, grey plastic casing with ventilation slots on top and short supporting feet.

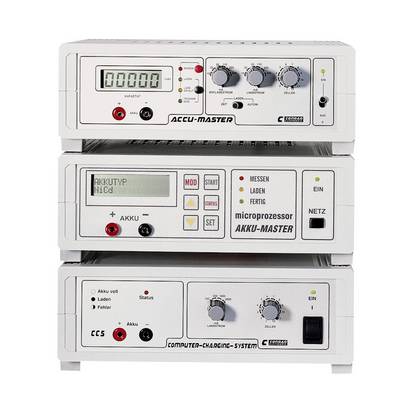

Stack of three technical devices for battery charging, with switches, indicators and controls. Top device shows '0' on digital display.

1/5

Material

Plastic

IP rating

IP30

Width

223 mm

Height

72 mm

Content

1 pc(s)

Datasheet (PDF)

355 Piece(s)

Sales and shipping:

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 24.36 / piece)

€ 26.88

-9 %

€

Report legal concerns

Highlights & Details

Lab table case

(W x H x D) 223 x 72 x 199 mm
Plastic
IP30

Technical specifications

Front plate cross-section: 195 x 56 mm

Material: Plastic

: IP30

Factory colour: Light grey
Agate grey

Width: 223 mm

Height: 72 mm

Content: 1 pc(s)

Dim: (W x H x D) 223 x 72 x 199 mm

RoHS-compliant: Yes

Depth: 199 mm

Type: UM 52011 L-SET

Material (details): Plastic

Product type: Desk casing

Documents & Downloads

Datasheet

Datasheet 523348 Bopla UM 52011 L-SET Desk casing (W x H x D) 223 x 72 x 199 mm Plastic Light grey, Agate grey 1 pc(s)

User & Safety Instructions

User & Safety Instructions 523348 Bopla UM 52011 L-SET Desk casing (W x H x D) 223 x 72 x 199 mm Plastic Light grey, Agate grey 1 pc(s)

Download

Download 523348 Bopla UM 52011 L-SET Desk casing (W x H x D) 223 x 72 x 199 mm Plastic Light grey, Agate grey 1 pc(s)

Description

Work on developing this case not only focused on achieving a good design but also the right functionality. The sophisticated layout results in a number of possible fittings.

Features

In addition to the PCB retaining points on the upper and lower sections, there are also guide rails for accommodating vertical PCBs. Just behind the front/rear plate, you will find closely fitted guides for mounting plates. A total of four retaining points for relief from cable pulls for VDE-compliant mains cable assembly, with fold-up positioning feet.
