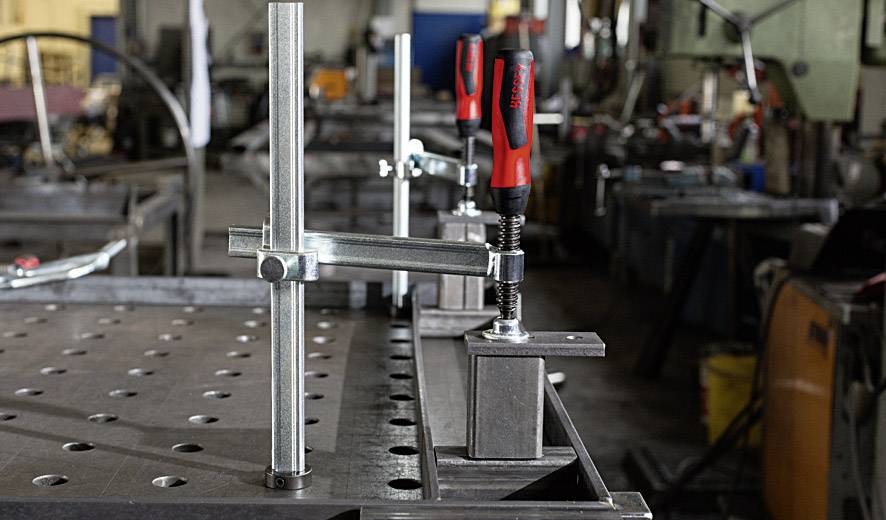

Metal workshop with a welding table equipped with workpieces and red tools. Machines can be seen in the background.

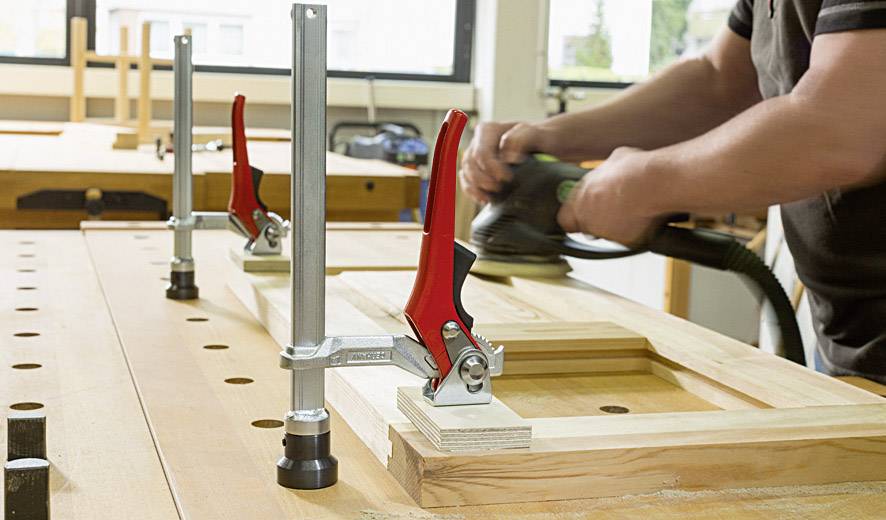

A person is sanding a wooden frame in a workshop. Two red clamps are holding the frame on a workbench.

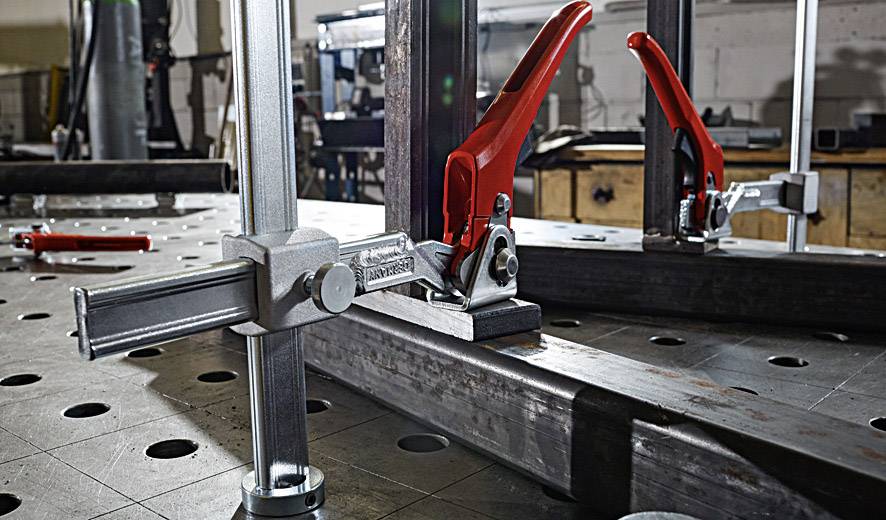

Metal workshop with clamping tools on a perforated metal workbench; additional tools and equipment visible in the background.

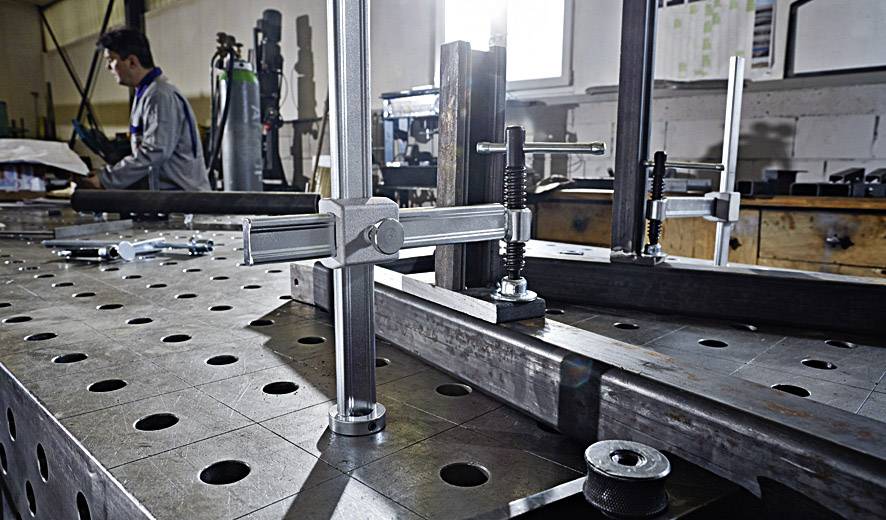

A metalworker is using a welding table with clamping tools in a workshop. Further machine tools are standing in the background.

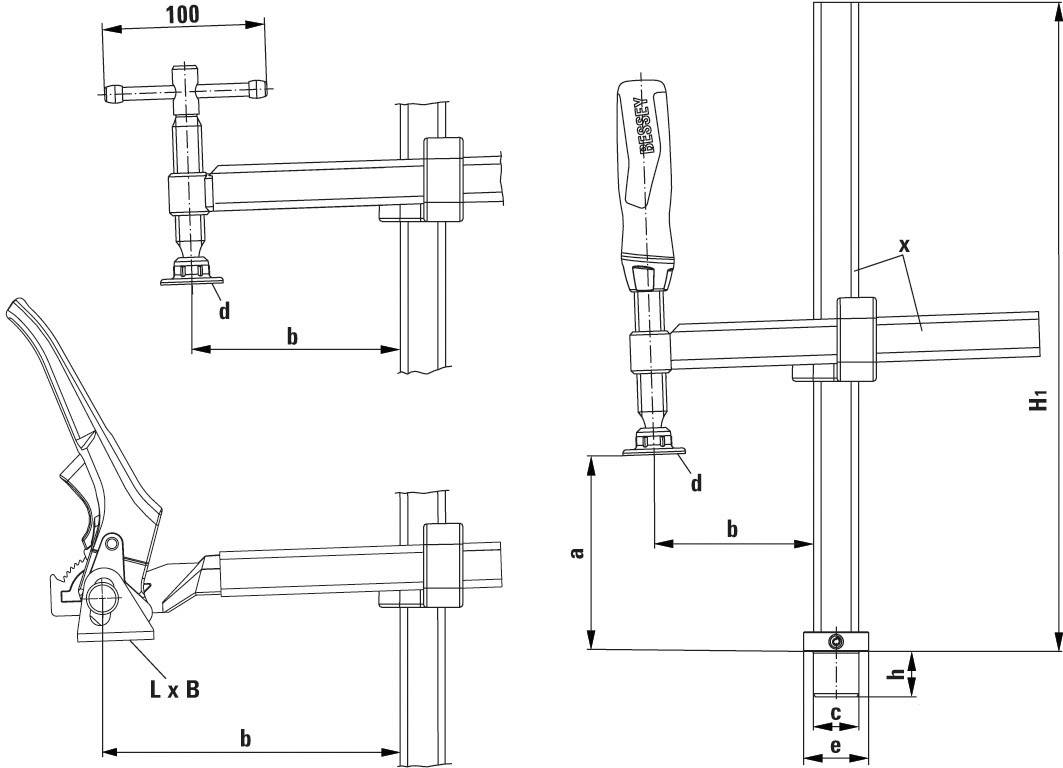

Technical drawing of a lever clamp with dimensions. Shows various views and specifications: distance, height, lever mechanism.

1/6

Bessey

Datasheet (PDF)

Deutsch (Deutschland)

4 Piece(s)

Sales and shipping:

Number

Piece(s)

Total (€ 80.66 / piece)

€

Only 4 Piece(s) available

Report legal concerns

Highlights & Details

Clamping element for welding tables with variable radius TWV 16 H

Precise, individual clamping
Tempered profile and sliding arm for sprung and elastic clamping
Infinitely adjustable throat depthVarious design versions: / High quality 2-component plastic handle and tommy bar with rounded ends – each with smooth-running t

Technical specifications

Rail Profile width: 22 mm
rail profile thickness: 8.5 mm
Hole diameter machine table: 16 mm
Clamping height max.: 200 mm
Overhang min-max: 60 - 150 mm

Span width (max.): 200 mm

Nosing: 150 mm

Weight: 1210 g

Content: 1 pc(s)

Documents & Downloads

Datasheet

Deutsch (Deutschland)

Datasheet 1417872 Bessey TWV16-20-15H Span width (max.):200 mm Nosing length:150 mm

Description

Exact positions, individual clamping. Tempered sliding and fixed bracket for elastic and elastic tension Continuously adjustable working radius. Various designs:/ high-quality 2-component plastic handle as well as T-handle with rounded ends - each with low-friction trapezoidal threaded spindle and tool-changeable pressure plate. Lever handle with locking mechanism for dosage, quick and vibration safe clamping.

Hints

This text is machine translated.
