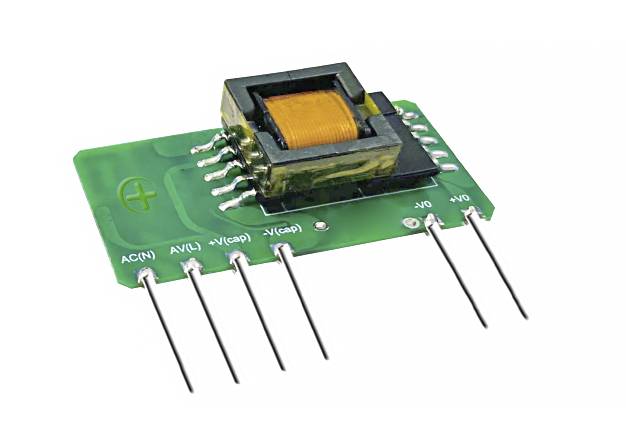

Gaptec 5ACF1W_05S4 AC/DC converter 5 V DC 1000 mA 5 W
Part number:
Item no:
Datasheet (PDF)
19 Piece(s)
Sales and shipping:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 10.08
3
6% = € 0.58
€ 9.50
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 10.08 / piece)
€
Highlights & Details
AC/DC converter output: 5V 85-528Vac, 100-745VDC
- Output 5 V DC/1000 mA;Power 5 W
Technical specifications
- Product type
AC/DC converter
- Input voltage (max.)
528 V AC
745 V DC
- Max. output current
1000 mA
- Output current (max.) - rounded
1 A
- Min. input voltage
90 V AC
127 V DC
- Dim
(L x W x H) 44.5 x 13.0 x 25.0 mm
- Output voltage (max.)
5 V DC
5 W
- Operating temperature (max.)
85 °C
- Operating temperature (min.)
-40 °C
- Weight
40 g
- Width
13.0 mm
- Height
25.0 mm
- Length
44.5 mm
- Type
5ACF1W_4
- Enclosure
SIP 16 (6-pin)
- Efficiency
76 %
- Insulation voltage
4 kV
Documents & Downloads
Datasheet
Datasheet 3355913 Gaptec 5ACF1W_05S4 AC/DC converter 5 V DC 1000 mA 5 W
User & Safety Instructions
User & Safety Instructions 3355913 Gaptec 5ACF1W_05S4 AC/DC converter 5 V DC 1000 mA 5 W
Description
AC/DC converter output: 5V 85-528Vac, 100-745VDC
