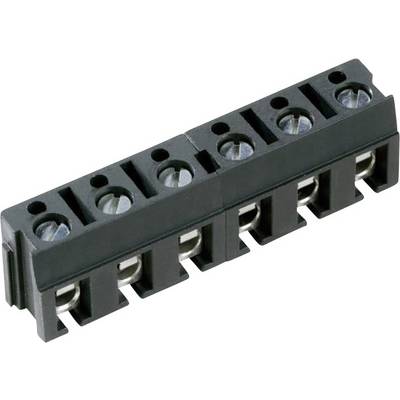

Image similar
1/2
Image similar
PTR Hartmann 50110030070F Screw terminal 2.50 mm² Number of pins 3 Grey 1 pc(s)
EAN:
Part number:
Item no:
Product type
Screw terminal
CS
7.50 mm
Pins per row
3
Number of pins
3
Connection
Screw terminal
Print
Datasheet (PDF)
192 Piece(s) (Only while stocks last)
Sales and shipping:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
5
-
€ 0.45
15
11% = € 0.05
€ 0.40
25
13% = € 0.06
€ 0.39
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 5
Total (€ 0.45 / piece)
€
Highlights & Details
Solderable screw terminal with wire protection AK110-V.
- RM 7.5 mm
Technical specifications
- Type
AK 110/3DS-7,5-V
- Product type
Screw terminal
- Features
+ wire protector
- CS
7.50 mm
- No. of rows
1
- Pins per row
3
- Number of pins
3
- Series
AK110
- Min. stripping length
7 mm
- Stripping length (max.)
7 mm
- Connection
Screw terminal
Print
- Nominal current
20 A
- Cross section (flexible) (min.)
0.20 mm²
- Nominal current - rounded value
20 A
- Cross section (inflexible) (min.)
0.20 mm²
- Cross section (flexible) (max.)
2.50 mm²
- Cross section (inflexible) (max.)
2.50 mm²
- AWG (min.)
22
- Connector orientation
Parallel (to the PCB)
- AWG max.
14
- Contact material
Brass
- Factory colour
Grey
- Wire protection
Yes
- Actuation direction
Perpendicular (to the PCB)
- Manufacturer part #
50110030070F
- Content
1 pc(s)
- Nominal voltage
300 V
- Width
23.20 mm
- Height
17.00 mm
- Length
9.00 mm
- Material (details)
PA, UL94 V-0
- Nominal voltage (details)
VDE/UL: 500 V/300 V
- Nominal current (details)
24 A/20 A
- Connector cross section
upto 2.5 mm²
- Cross section
upto 2.5 mm²
- Pins
3
- Connection
-
Documents & Downloads
Datasheet
Datasheet 525766 PTR Hartmann 50110030070F Screw terminal 2.50 mm² Number of pins 3 Grey 1 pc(s)
