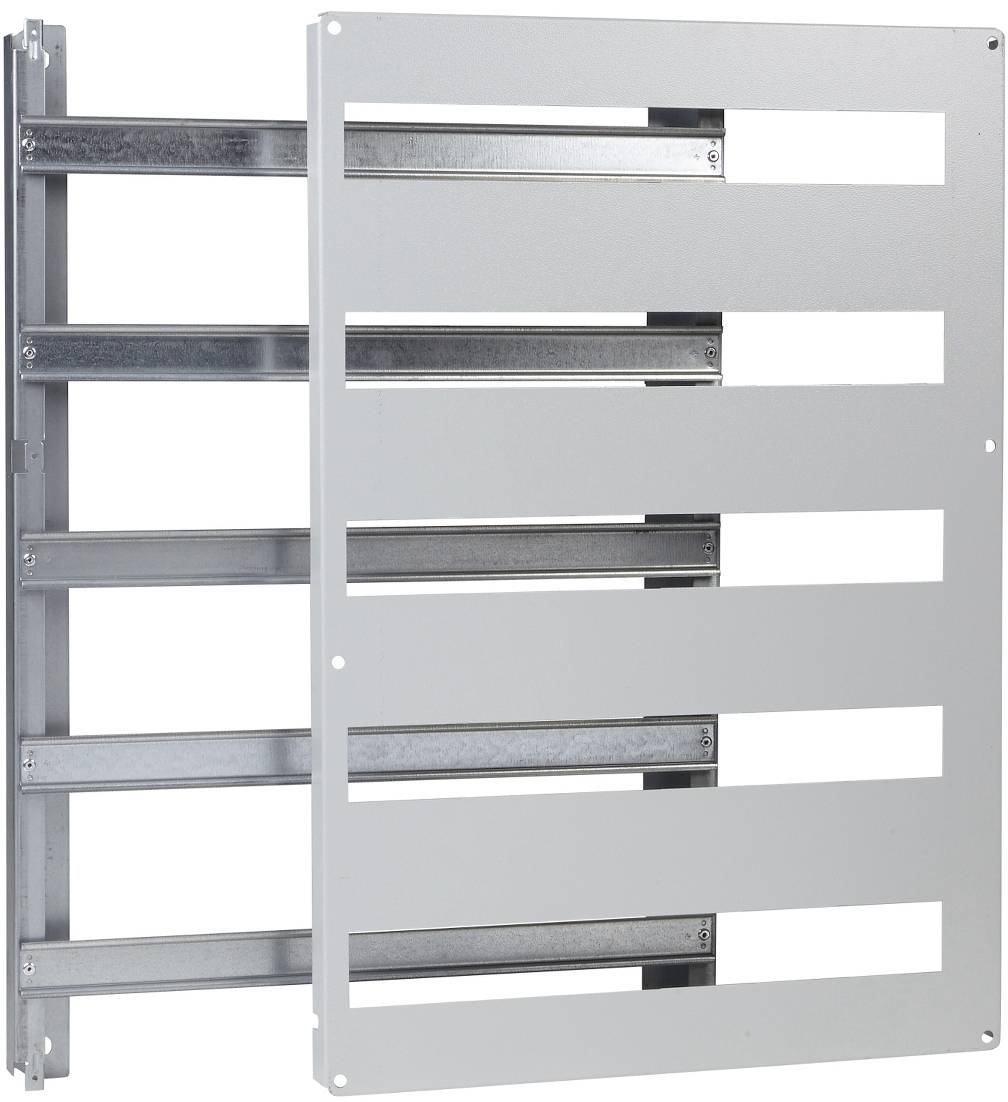

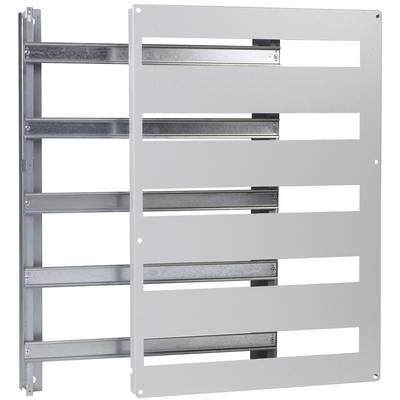

Schneider Electric NSYDLCR110 Modular frame type DLCR for PanelSet WM steel housing, 110 modules, H700xW500 Frame 1 pc(s
EAN:
Part number:
Item no:
Product type
Frame
Dim
(W x H x D) 455 x 655 x 110 mm
Content
1 pc(s)
Width
455 mm
Height
655 mm
Datasheet (PDF)
Sales and shipping:
Number
Total (€ 92.43 / piece)
€
Technical specifications
- Number of DIN rails: 5
- Number of units per DIN rail: 22
- Type of cover: With cut-out
- With cover: No.
- With mounting plate: No.
- With N-PE terminals: Yes
- Product type
Frame
- Dim
(W x H x D) 455 x 655 x 110 mm
- Content
1 pc(s)
- Width
455 mm
- Height
655 mm
- Depth
110 mm
Documents & Downloads
Datasheet
Datasheet 3755658 Schneider Electric NSYDLCR110 Modular frame type DLCR for PanelSet WM steel housing, 110 modules, H700xW500 Frame 1 pc(s
User & Safety Instructions
User & Safety Instructions 3755658 Schneider Electric NSYDLCR110 Modular frame type DLCR for PanelSet WM steel housing, 110 modules, H700xW500 Frame 1 pc(s
Description
DL case for PanelSet S3X and PanelSet CRN case. The frame is secured to the front of the chassis with fasteners - on the back with supports in the correct position. The width is 455mm. The height is 655 mm. The depth is 110 mm. Number of 18 mm modules is 110 (1 module equal to 2 levels equal to 18 mm). Number of horizontal rows is 5. The depth of the frame can be adjusted in the height of 40 to 85mm for DIN rail. The product is made of gray steel (RAL 7035). The front side is gray (RAL 7035). Number of cuttings is 5. The kit consists of 1 frames, 1 neutral-/earth bar 2 x 16 mm² 5 x 6 mm², 1 front plate and 5 35mm DIN rails. Corrosion protection is ensured through a polyester powder coating. This product is classified as environmentally friendly as it contains only a few dangerous substances.
