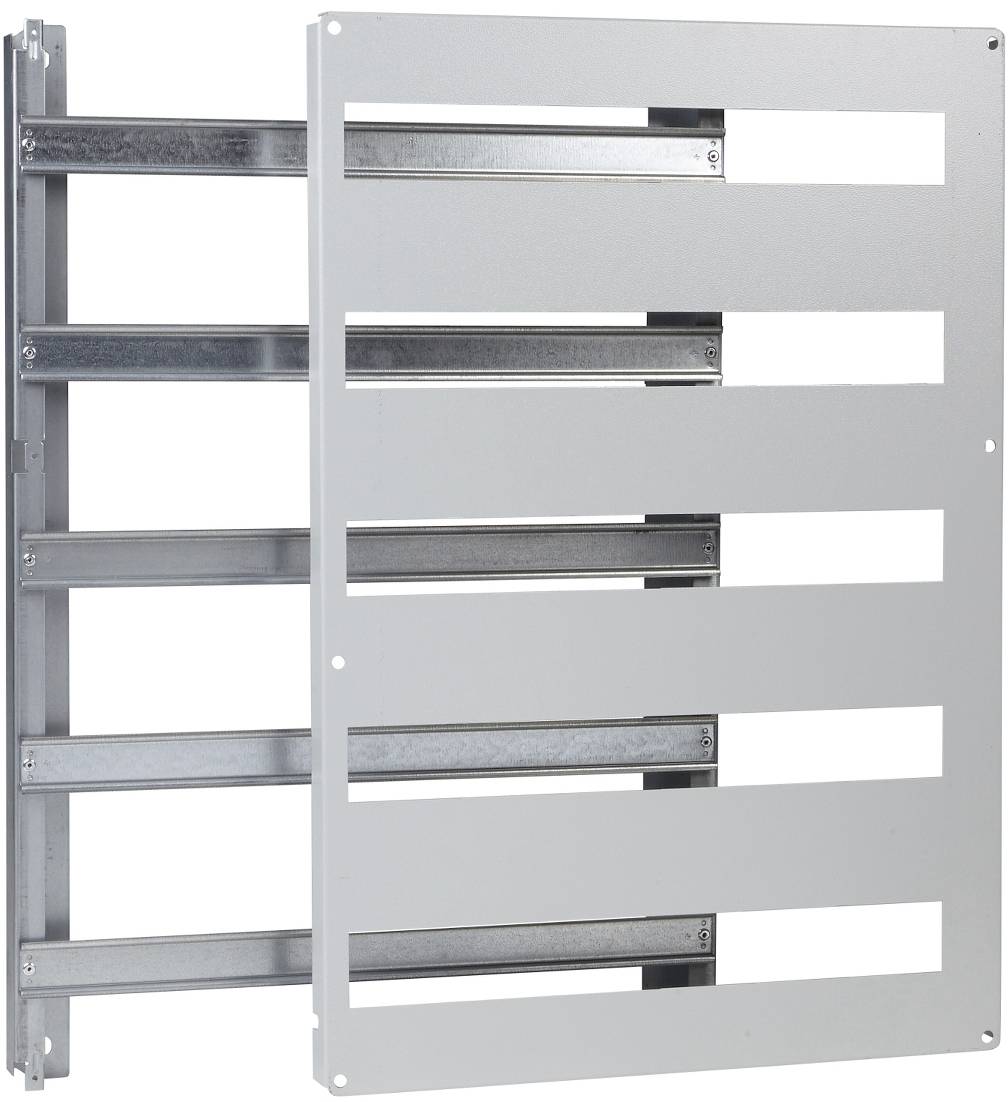

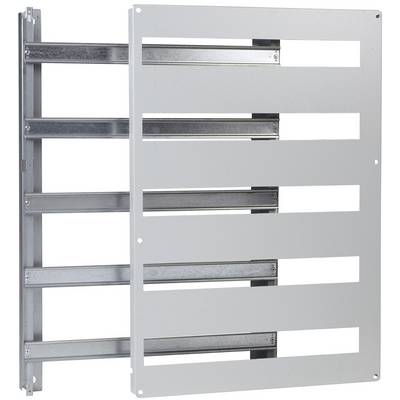

Schneider Electric NSYDLCR48 Modular frame DLCR type for PanelSet WM steel housing, 48 modules, H500xW400 Frame 1 pc(s)
EAN:
Part number:
Item no:
Product type
Frame
Dim
(W x H x D) 355 x 455 x 110 mm
Content
1 pc(s)
Width
355 mm
Height
455 mm
Datasheet (PDF)
Sales and shipping:
Number
Total (€ 72.26 / piece)
€
Technical specifications
- Number of DIN rails: 3
- Number of units per DIN rail: 16
- Type of cover: With cut-out
- With cover: No.
- With mounting plate: No.
- With N-PE terminals: Yes
- Product type
Frame
- Dim
(W x H x D) 355 x 455 x 110 mm
- Content
1 pc(s)
- Width
355 mm
- Height
455 mm
- Depth
110 mm
Documents & Downloads
Datasheet
Datasheet 3755679 Schneider Electric NSYDLCR48 Modular frame DLCR type for PanelSet WM steel housing, 48 modules, H500xW400 Frame 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3755679 Schneider Electric NSYDLCR48 Modular frame DLCR type for PanelSet WM steel housing, 48 modules, H500xW400 Frame 1 pc(s)
Description
DL case for PanelSet S3X and PanelSet CRN case. The frame is to be fixed to the front of the housing with fixing elements - to be fixed to the rear with brackets. The width is 355mm. The height is 455mm. The depth is 110 mm. The number of 18 mm modules is 48 (1 module equal to 2 steps equal to 18 mm). Number of horizontal rows is 3. The depth of the frame can be adjusted at a height of 40 to 85 mm for DIN-rails. The product is made of gray steel (RAL 7035). The front side is gray (RAL 7035). Number of cuttings is 3. The kit consists of 1 frames, 1 neutral/earth bar 2 x 16 mm² 5 x 6 mm², 1 front plate and 3 35 mm DIN rails. Corrosion protection is ensured through a polyester powder coating. This product is classified as environmentally friendly as it contains only a few dangerous substances.
