TOOLCRAFT FE-300 N/A 15 W 60 dB 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
156 Piece(s)
Do your needs go beyond this?
Sales and shipping:
Number
Total (€ 62.18 / piece)
€
Highlights & Details

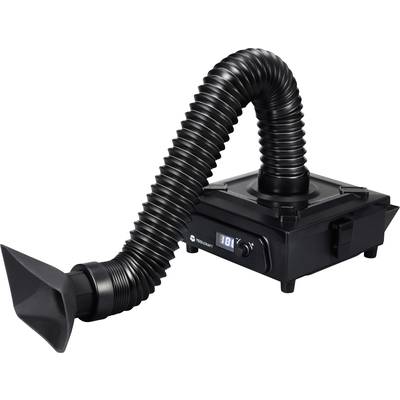

Smoke Extractor
- Flexible extraction hose (Max. 66 cm length)
- LED display
- Maximum suction power (vertical): 0.7 kPa
- Air flow rate (max.): 17.2 m³/h
Technical specifications
- -
- Product type
Soldering fume extractor
- Max. power
15 W
- Power consumption
15 W
- Operating voltage
230 V AC
- Air flow rate
17.2 m³/h
- Max. noise generation
60 dB
- Dim
(L x W x H) 210 x 210 x 90 mm
- Weight
1.28 kg
- Features
Flexible exhaust hose
- Width
210 mm
- Height
90 mm
- Length
210 mm
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
Datasheet
Datasheet 3089719 TOOLCRAFT FE-300 N/A 15 W 60 dB 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3089719 TOOLCRAFT FE-300 N/A 15 W 60 dB 1 pc(s)
Conformity certificate
Conformity certificate 3089719 TOOLCRAFT FE-300 N/A 15 W 60 dB 1 pc(s)
Warranty Terms
Warranty Terms 3089719 TOOLCRAFT FE-300 N/A 15 W 60 dB 1 pc(s)
Description
Soldering often releases additives, gases and aerosols containing rosin, which irritate the skin and airways. The solder fume extractor extracts and filters out harmful substances at source, preventing direct contact with the skin and airways and diffusion into the surrounding area.
This text is machine translated.
This text is machine translated.
Features
- Three-stage filter system:
- Dust filter: 175 x 175 x 5 mm
- HEPA H13/H14 filter (PM2.5): 175 x 175 x 15 mm
- Odour filter: 175 x 175 x 10 mm
- Adjustable fan speed (10 to 100%)
Scope of delivery
- Smoke extractor
- Extraction hose (Max. 66 cm length)
- Smoke hood
- 4x Dust filters (3x spare filters)
- HEPA H13/H14 filter (PM2.5)
- Odour filter
- Adapter
- Air guide
- Operating instructions
