Brennenstuhl CEE power distributor BSV 3/32 2 1153690400 400 V 32 A
EAN:
Part number:
Item no:
Datasheet (PDF)
79 Piece(s)
Sales and shipping:
Number
Total (€ 193.27 / piece)
€
Highlights & Details

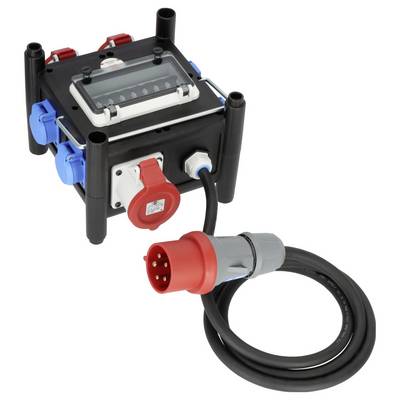

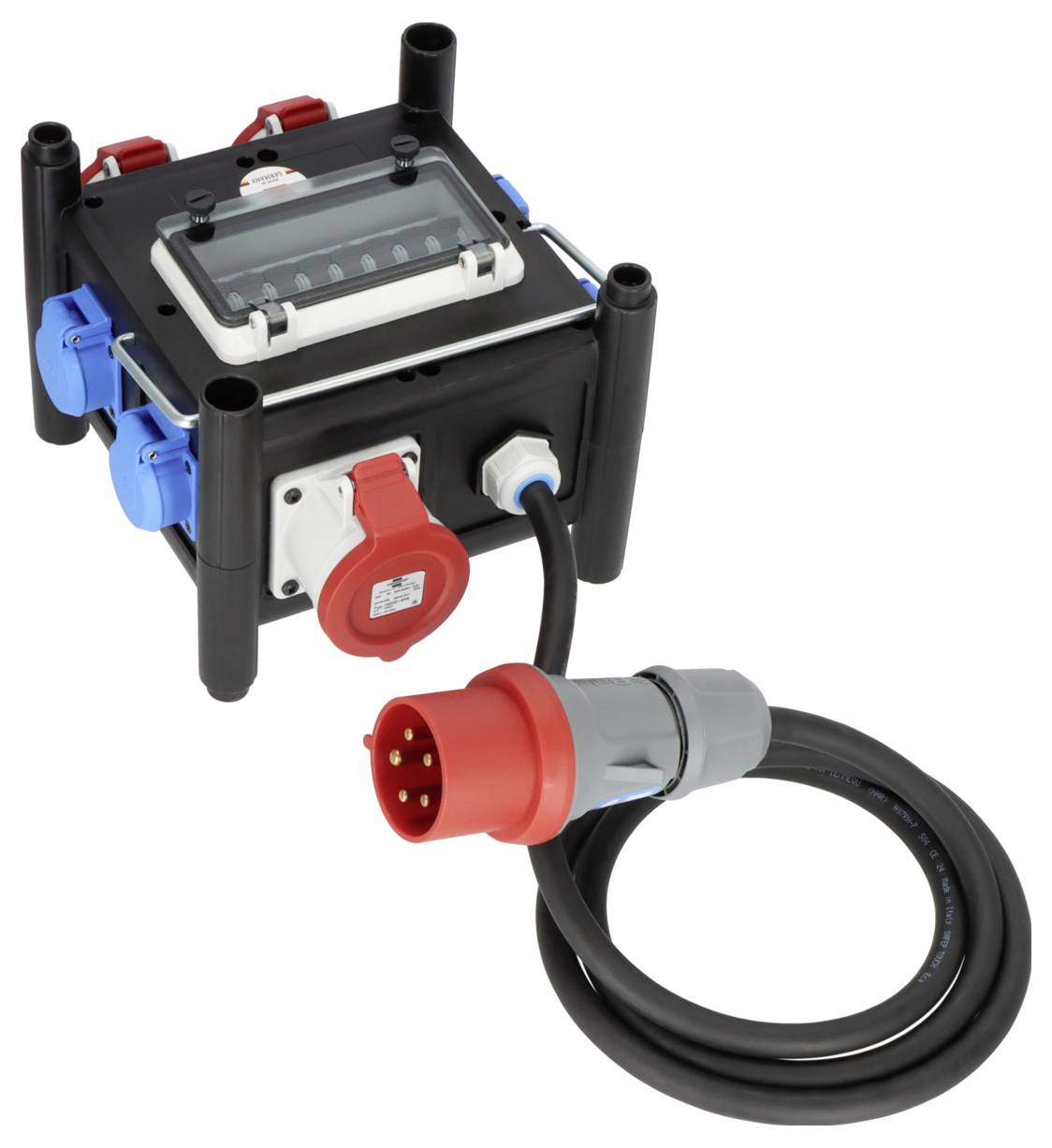

Compact power distributor BSV 3/32 2 IP44
- Multiple distributor made of rubber for outdoor use with 2 m olbestandigem Rubber cable H07RN-F 5G4.0
- Rubber Bauverteiler with quality sockets according to VDE 0620-1 is resistant to diverse oils, fats, petrol and acids, UVund ozone radiation with certified circuit-breaker for your safety
- Rubber-Power distributor with stackable, splash-proof casing made of a special rubber compound for continuous load
- Extremely robust power distribution impact resistant, aging and weather-resistant with a temperature resistance of case -30°C to +80°C
Technical specifications
- Product type
CEE power distributor
- No. of CEE connectors
3
- Type A
CEE plug (5-pin, 32 A)
- Type B
CEE connector (5-pin, 16 A)
CEE connector (5-pin, 32 A)
PG connector
- No. of PG sockets
4
- Inputs
CEE-plug 400V/32A 5-pole
- Outputs
2 x CEE-coupling 5-pin 400V/16A · 1x CEE-coupling 5-pin 400V/32A · 4x protective contact coupling 230V/16A
- Nominal input voltage
400 V
- Nominal output voltage
400 V
- Nominal input current
32 A
IP44
- Cable length
2.00 m
- Cable standard
H07RN-F 5G 4 mm²
- Protection
2 x Line safety switch 400 V/16 A 3-pin · 2 x Line safety switch 230 V/16 A 1-pin
- Min. temperature
-30 °C
- Max. temperature
80 °C
- Standards
VDE 0620-1
- Factory colour
Black
Grey
Red
Blue
- Weight
4.35 kg
- Dim
(L x W x H) 2 m x 340 mm x 230 mm
- Length
2 m
- Width
340 mm
- Height
230 mm
- Inputs (CEE power distributor)
CEE plug (5-pin, 32 A)
- Outputs (CEE power distributors)
CEE connector (5-pin, 16 A)
CEE connector (5-pin, 32 A)
PG connector
- Content
1 pc(s)
- Number of pins
5
- Depth
250 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1763494 Brennenstuhl CEE power distributor BSV 3/32 2 1153690400 400 V 32 A
User & Safety Instructions
User & Safety Instructions 1763494 Brennenstuhl CEE power distributor BSV 3/32 2 1153690400 400 V 32 A
Conformity certificate
Conformity certificate 1763494 Brennenstuhl CEE power distributor BSV 3/32 2 1153690400 400 V 32 A
Description

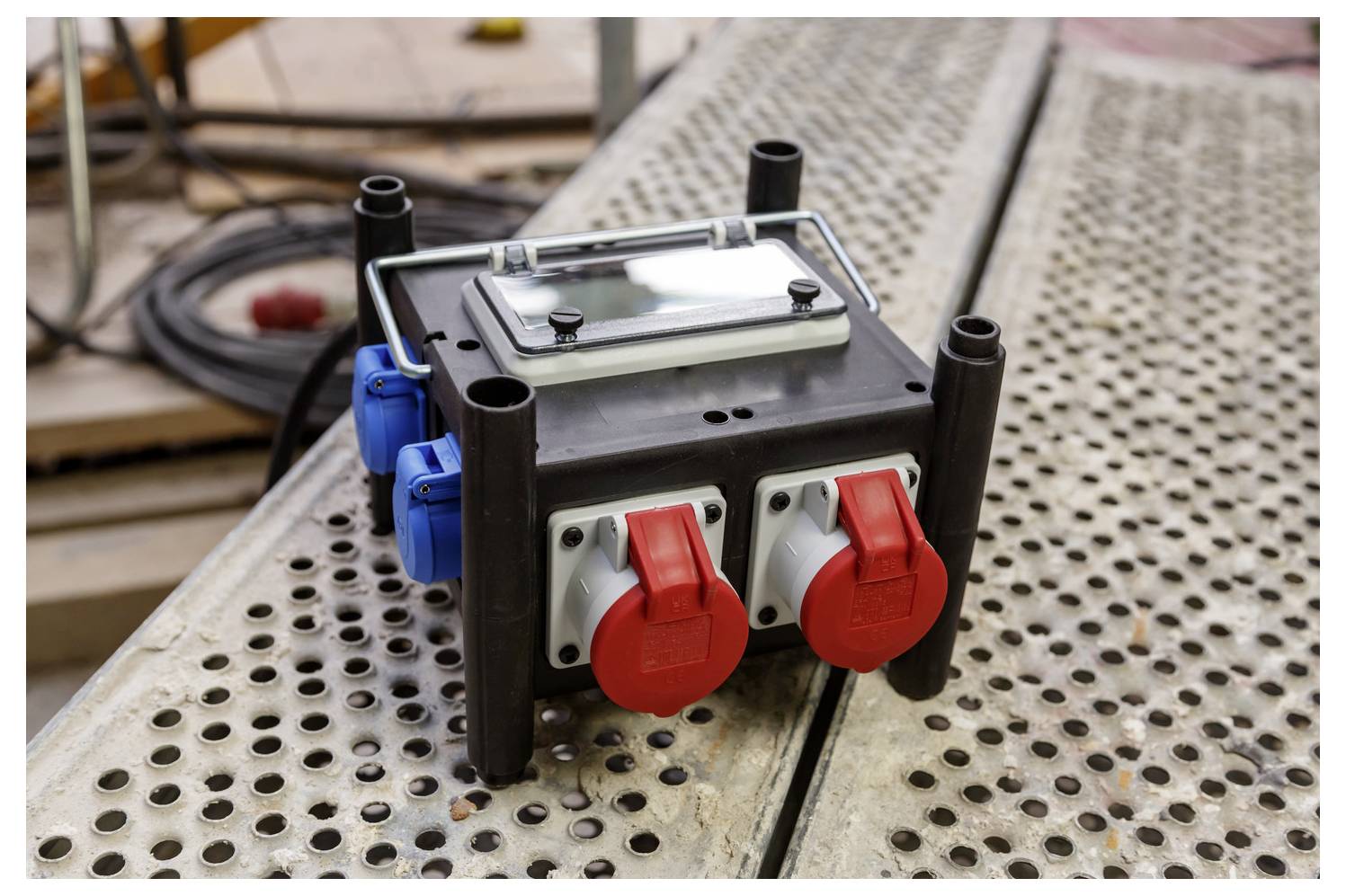

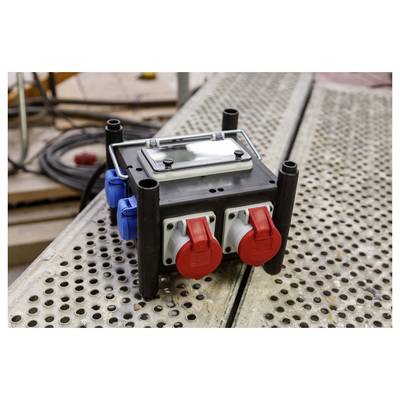

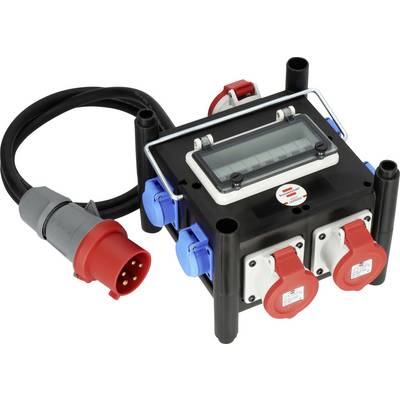

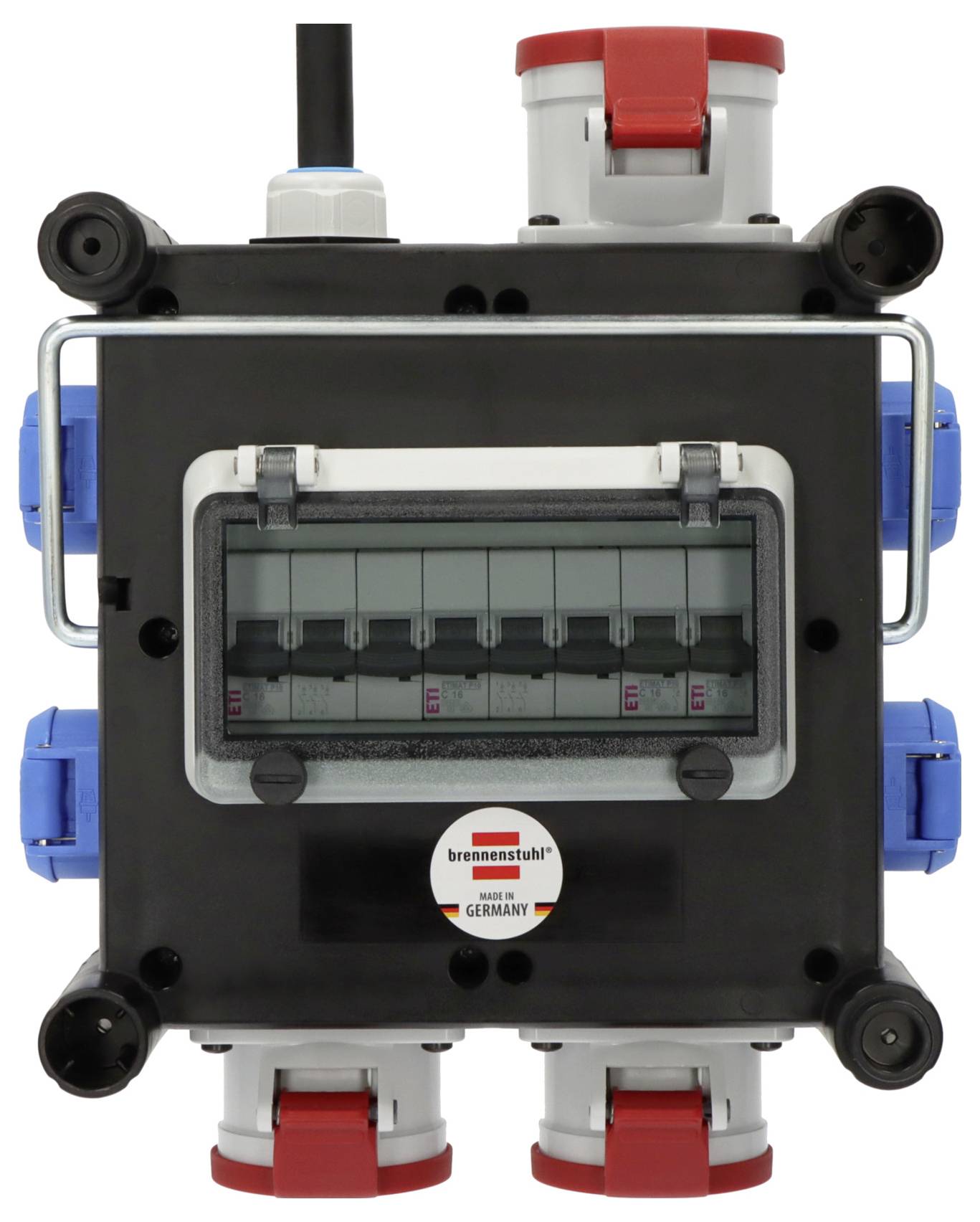

The compact rubber-Power distributor by Brennenstuhl in black and 2 m cable captivates by its quality and safety in all areas. The practical and extremely robust power distributor is ideally suited for use on construction sites or outdoor use. It convinces by the following features:
Cable Designation: H07RN-F 5G4.0
CEE-plug 400V/32A 5-pin/pin
Sockets: 2 x CEE 400 V/16 A 5-pin/pin, 1 x CEE 400 V/32 A 5-pin/pin, 4 x 230V/16A

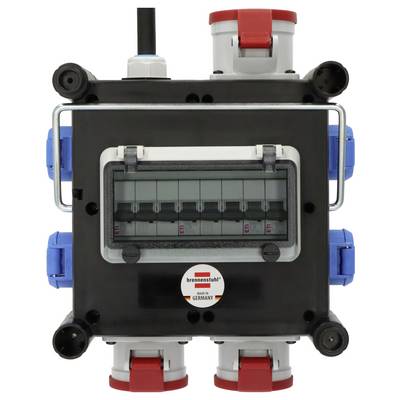

Security: 2 x LS 400 V/16 A 3-pin/pin, 2 x LS 230 V/16 A 1-pin/pin
- For outdoor use - IP44
Temperature resistance of case: -30°C to + 80 °C
Quality sockets according to VDE 0620-1
- Stable metal carrying handle
- Each 2 earthing contact sockets on separate phases distributed
This text is machine translated.
Cable Designation: H07RN-F 5G4.0
CEE-plug 400V/32A 5-pin/pin
Sockets: 2 x CEE 400 V/16 A 5-pin/pin, 1 x CEE 400 V/32 A 5-pin/pin, 4 x 230V/16A
Security: 2 x LS 400 V/16 A 3-pin/pin, 2 x LS 230 V/16 A 1-pin/pin
- For outdoor use - IP44
Temperature resistance of case: -30°C to + 80 °C
Quality sockets according to VDE 0620-1
- Stable metal carrying handle
- Each 2 earthing contact sockets on separate phases distributed
This text is machine translated.
Features

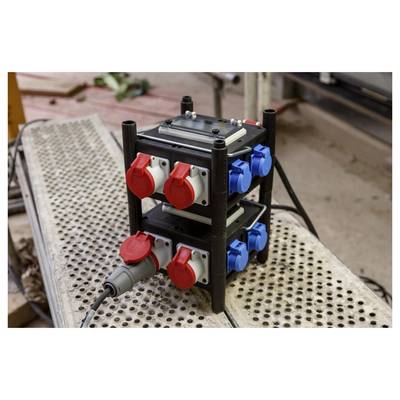

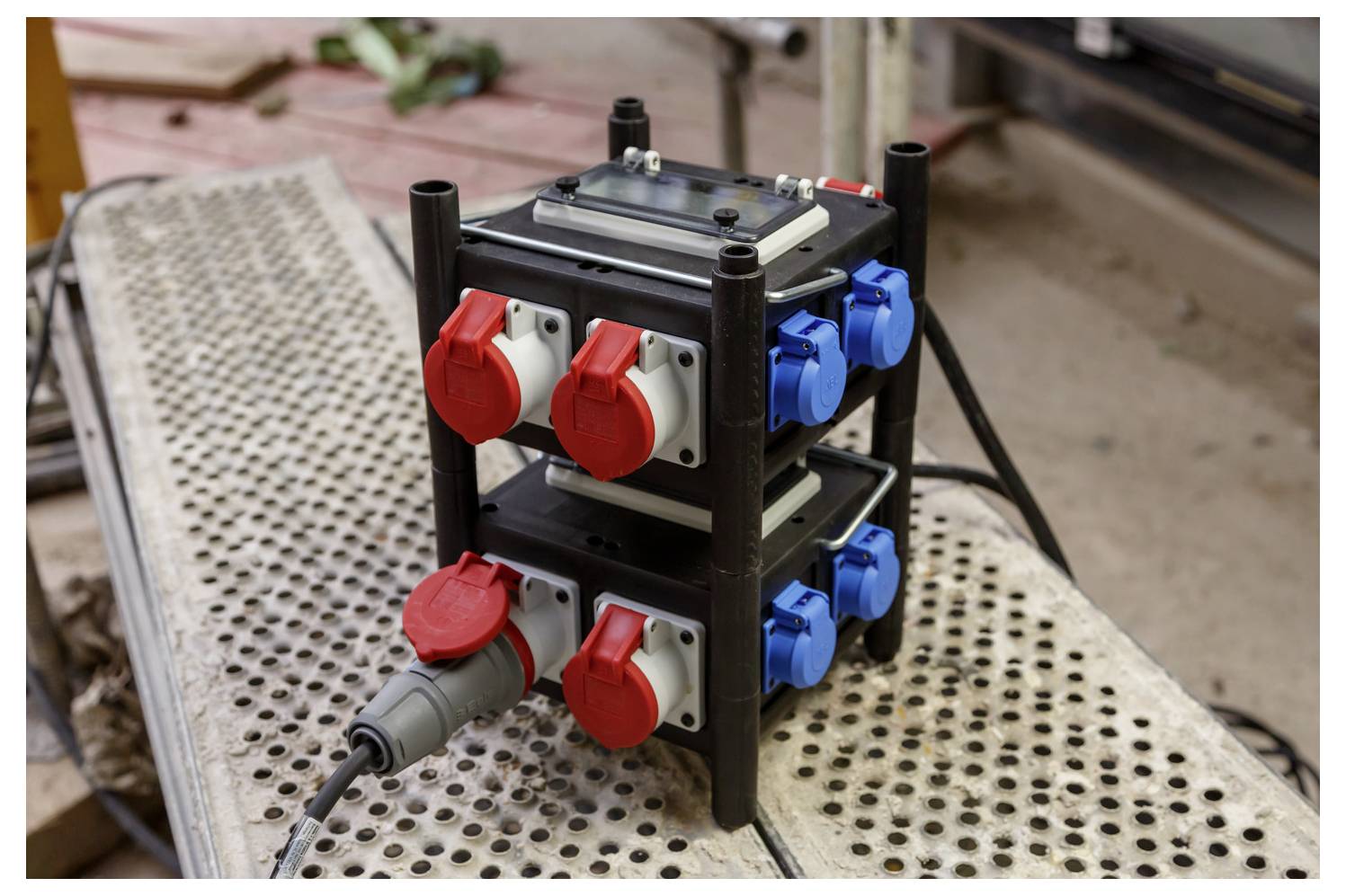

- Stackable, splash-proof housing made from a special rubber compound for continuous load
- Quality sockets according to VDE 620-1
- Stable metal carrying handle
- Olbestandiges rubber cable.
