Buy Cable tester 4956200 Fluke Networks DSX-602-PRO INT Networks, Telecom

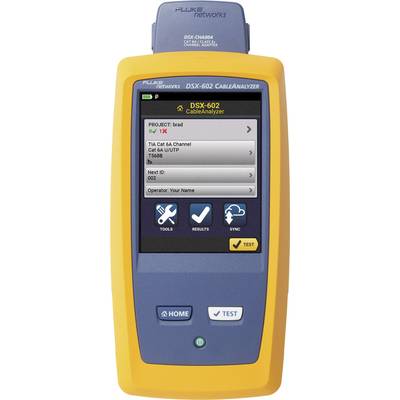

A portable cable measuring device with a display. Shows project information and test options. Buttons for Home, Test, Tools, Results, and Synchronisation.

Two yellow network testers with touchscreens. Left tester shows results, right displays error messages. Arrows and text describe functions.

'Fluke Networks DSX-602-Kit' with carrying case, main and remote units, chargers, cables, manuals and accessories pictured.

A person is holding an electronic testing device in front of a server rack. The device is displaying measurement values on a screen.

A person is testing cable connections in a server cabinet using a measuring device. They are wearing a green shirt and glasses.

1/5

Show alternatives

Sales and shipping:

Number

Piece(s)

Total (€ 10,306.72 / piece)

€

Report legal concerns

Highlights & Details

DSX-602 CableAnalyzer

Technical specifications

Product type: Cable tester

Display: Digital

Optical display: Yes

Dim: (W x H x D) 133.3 x 279.4 x 66.7 mm

Weight: 1360 g

Range: Networks
Telecom

Width: 133.3 mm

Height: 279.4 mm

Depth: 66.7 mm

Type: DSX-602-PRO INT

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2187725 Cable tester 4956200 Fluke Networks DSX-602-PRO INT Networks, Telecom

Description

The DSX-602 CableAnalyzer is the indispensable certification tool for copper, twisted pair structured cabling from Cat 3 / Class C to Cat 6A / Class EA. It is characterized by speed and reliability that make you more efficient and productive. The gesture-based interface allows your technicians to spend less time interpreting screens and more time testing. The 500 MHz frequency range certifies the Cat 6A/Class EA cabling for 10 Gigabit Ethernet in just 10 seconds. Advanced diagnostic functions locate the location of an error.

LinkWare™ with the cloud-based live service lets you manage certification orders anytime, anywhere, on any device.

This text is machine translated.

Features

Cat 6A certification in 10 seconds
The DSX-602 CableAnalyzer provides you with a complete solution that optimizes every aspect of the certification order, from setup, testing and troubleshooting to reporting to the customer. The DSX-602 performs E/Cat 6 certification tests in just 9 seconds and EA/Cat 6A in 10 seconds, in full compliance with industry standards and with the industry's highest accuracy. This incredible speed means you can test hundreds of links in an eight-hour shift.
Quickly fix errors
If a connection fails, the DSX-602 HDTDR and HDTDX algorithms quickly identify the point of failure (distance from the tester). Instead of spending time doing trial and error corrections - and testing again to find out if the problem has been resolved - the technician knows exactly where to look to fix the faulty connection. Even if only two percent of the cables certified in a shift do not pass the Autotest, you can save up to two hours of time per day on certification.
Fast, even if you don't test
The DSX-602 is not just a quick way to test. The ProjX™ system manages job requests and progress from setup to system acceptance and ensures that all tests are performed correctly the first time. The gesture-based user interface of Taptive™, the bright color display, the large memory and the built-in voice function all contribute to overall productivity and at the same time improve the user-friendliness. Longer battery life means you can do more with a single charge. All this adds up to save you time and money every day.

Scope of delivery

DSX-602 CableAnalyzer main unit & Smart Remote
2x Cat 6A/ Class EA channel adapter
6-inch (15 cm) RJ45 reference patch cable
2x Permanent Link Adapter
Soft carrying case USB cable for PC communication
2x AC adapter DSX-602
Getting Started Guide

Description

Features

Cat 6A certification in 10 seconds
The DSX-602 CableAnalyzer provides you with a complete solution that optimizes every aspect of the certification order, from setup, testing and troubleshooting to reporting to the customer. The DSX-602 performs E/Cat 6 certification tests in just 9 seconds and EA/Cat 6A in 10 seconds, in full compliance with industry standards and with the industry's highest accuracy. This incredible speed means you can test hundreds of links in an eight-hour shift.
Quickly fix errors
If a connection fails, the DSX-602 HDTDR and HDTDX algorithms quickly identify the point of failure (distance from the tester). Instead of spending time doing trial and error corrections - and testing again to find out if the problem has been resolved - the technician knows exactly where to look to fix the faulty connection. Even if only two percent of the cables certified in a shift do not pass the Autotest, you can save up to two hours of time per day on certification.
Fast, even if you don't test
The DSX-602 is not just a quick way to test. The ProjX™ system manages job requests and progress from setup to system acceptance and ensures that all tests are performed correctly the first time. The gesture-based user interface of Taptive™, the bright color display, the large memory and the built-in voice function all contribute to overall productivity and at the same time improve the user-friendliness. Longer battery life means you can do more with a single charge. All this adds up to save you time and money every day.

Scope of delivery

DSX-602 CableAnalyzer main unit & Smart Remote
2x Cat 6A/ Class EA channel adapter
6-inch (15 cm) RJ45 reference patch cable
2x Permanent Link Adapter
Soft carrying case USB cable for PC communication
2x AC adapter DSX-602
Getting Started Guide
