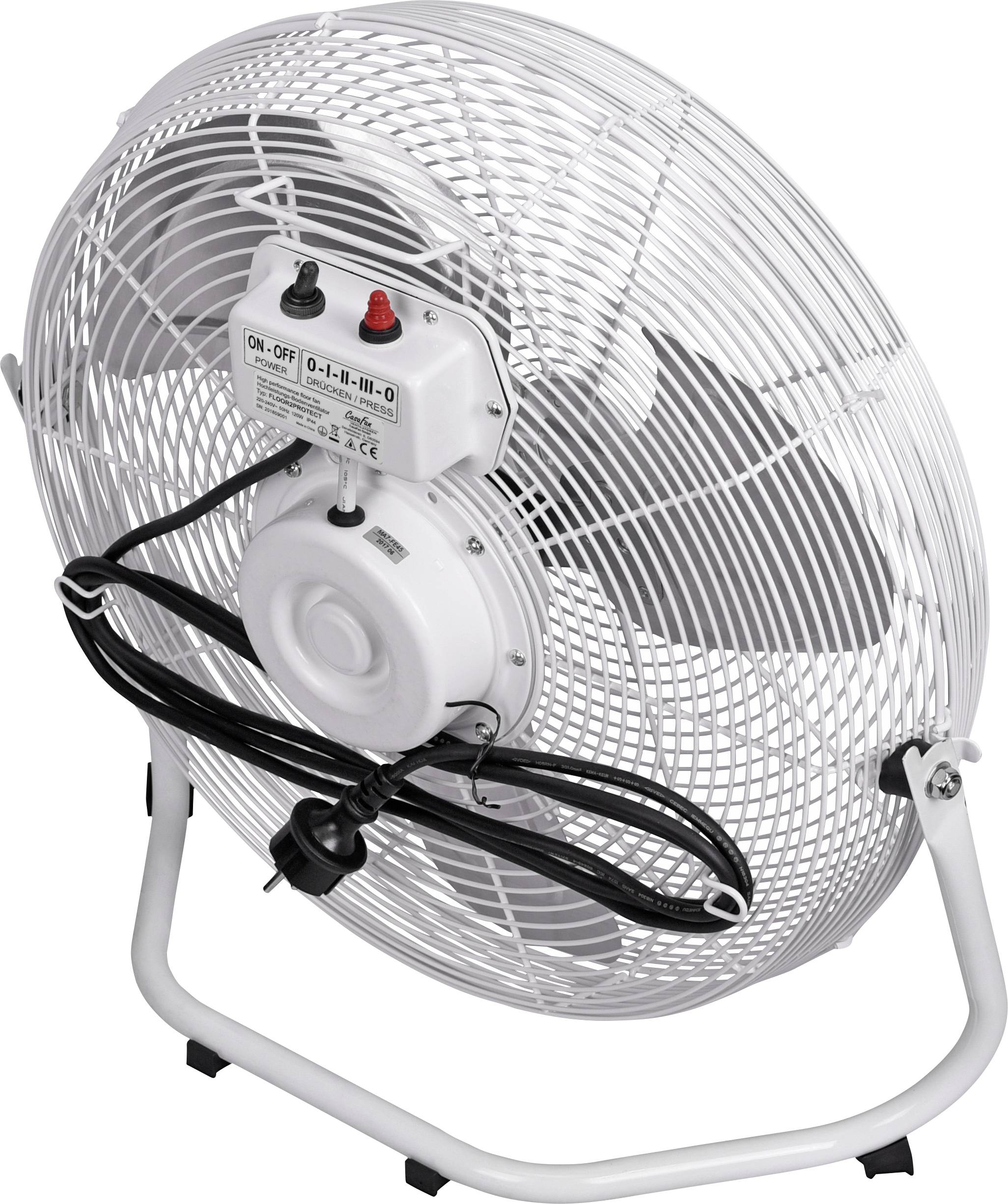

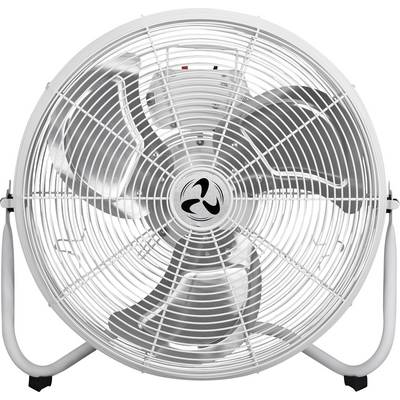

CasaFan FLOOR2PROTECT IP54 SL Floor fan 120 W (Ø x H) 495 mm x 520 mm White Winter-proof
EAN:
Part number:
Item no:
80 Piece(s)
Sales and shipping:
Number
Total (€ 168.06 / piece)
€
Highlights & Details
FLOOR2PROTECT IP54 SL FLOOR FAN
- Protective basket 495 mm
- 2-pin power switch
- Floor fan for commercial use
- This text is machine translated.
Technical specifications
- Width 535 mm
- Protection class IP54
- For commercial use
- Two-pole on/off switch
- Protection class: I
- Operating voltage
230 V
- Switching stages
3
120 W
- Air flow rate
10700 m³/h
- Rotational speed
1250 U/min
- Noise emission
72 dB
- Grid diameter
495 mm
- Wing colour
White
- Case colour
White
- Swivel range (max.)
130°
- Fan features
Winter-proof
- Dim
(Ø x H) 495 mm x 520 mm
- Weight
7 kg
- Feed length
2.5 m
n.rel.
- Depth
170 mm
- (Ø)
495 mm
- Height
520 mm
- Length
535 mm
- Height-adjustable
No
- Material
Metal
- Air discharge
10700 m³/h
- Rotor blades
3
- Speed levels
3
- Rotational speed (max.)
1250 U/min
- Product type
Floor fan
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2436087 CasaFan FLOOR2PROTECT IP54 SL Floor fan 120 W (Ø x H) 495 mm x 520 mm White Winter-proof
Description
Features
- Floor fan for commercial use
- Output 123 W, 220 - 240 V ~ 50 Hz
- Protective basket 495 mm
- Protection class IP54
- 10,700 m³/h in accordance with EN 60879
- Protective grillee, housing, frame and stand Steel with double anti-corrosion coating, color white
- 2-pin power switch

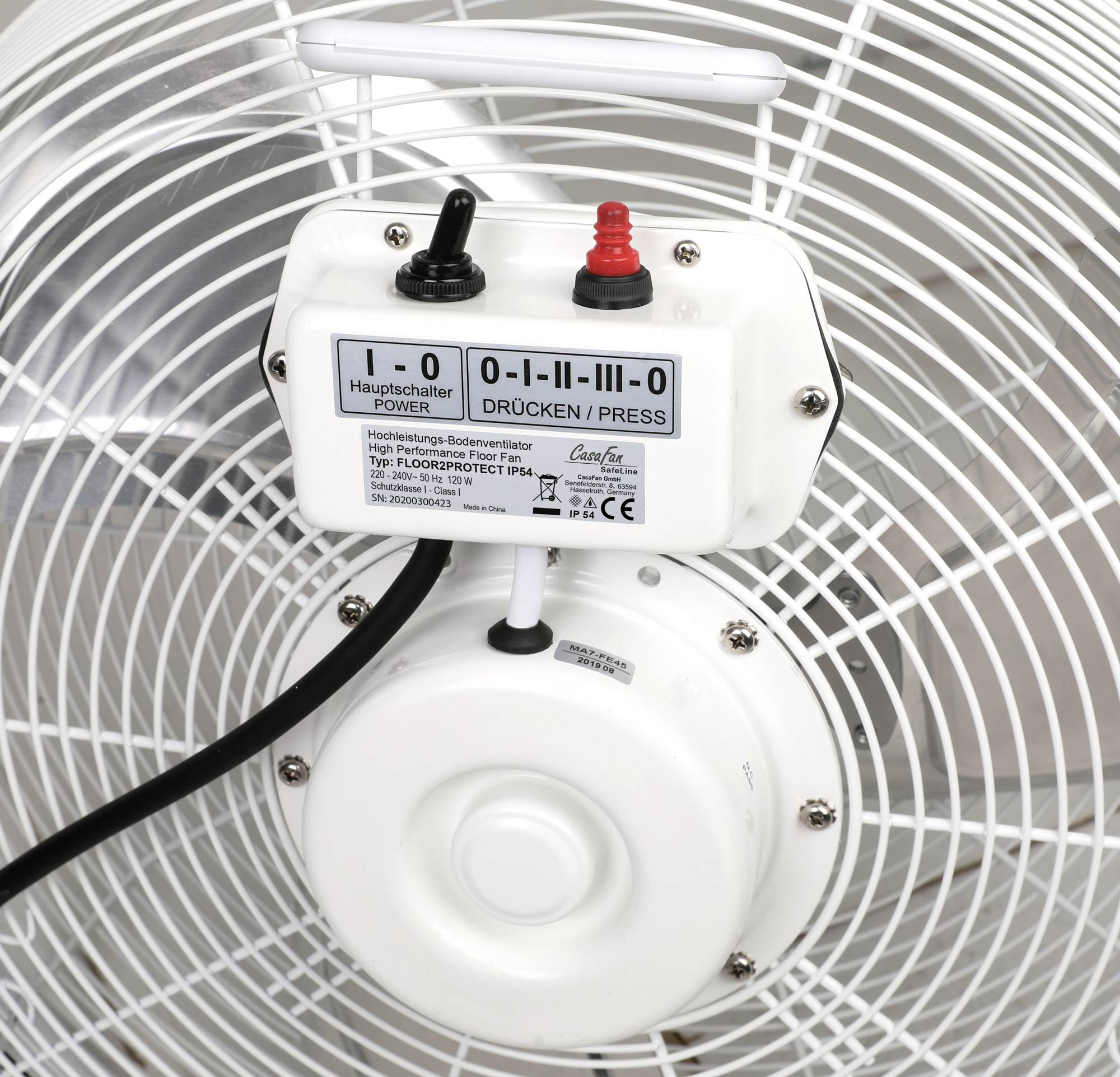

- 3 stages by means of encapsulated pressure switch
- Vertical inclination of 130° adjustable
- Sturdy design with carrying handle
- Enclosed, ball bearing motor

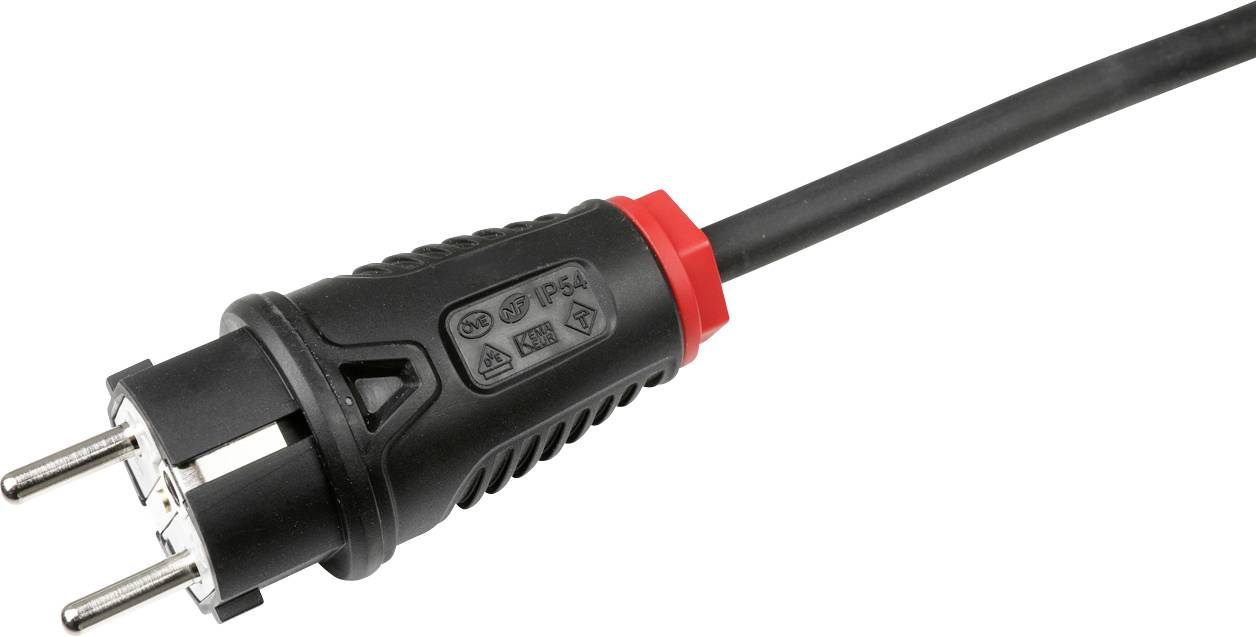

- Cable 2.5 m rubber hose cable for high mechanical load H07RN-F 3 x 1.0 mm² with Schuko plug
- Certified according to Machinery Directive 2006/42/EC Part 1 for commercial use
Scope of delivery
- FLOOR2PROTECT IP54 SL FLOOR FAN
