Buy CDAU-01/04-I Eaton xComfort Dimmer actuator White

Device for controlling electrical appliances, displayed with multiple colourful wires and markings for voltage and power.

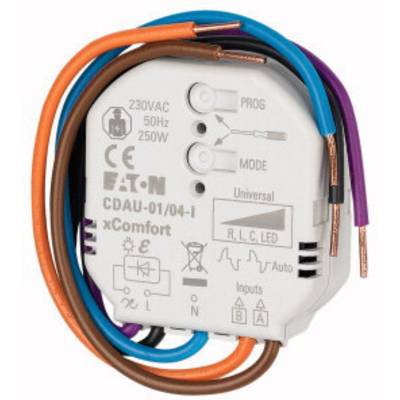

Electrical module with colourful cables, labelled 'Eaton', 230VAC, 50Hz, 250W. Symbols for inputs, outputs, and programming modes.

1/2

Datasheet (PDF)

8 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 100.83 / piece)

€

Only 8 Piece(s) available

Report legal concerns

Highlights & Details

Smart dimming +

Universal
Binary input

Technical specifications

Power supply: 230 VAC +10% -15%, 50 Hz
Connections: Single wire 1.5 mm² all connections; load 0 - 250 W (0-250 VA)
Range in the building: Typically 30 - 50 m, 2 walls + 1 ceiling; (depending on wall thickness and material!!)
Function assignments: 32
routing routes: 32
Operating temperature: -5 to +55 °C
Minimum distance for multiple arrangement: 35 mm
Housing color: Gray, RAL7035
Length connecting wires: 150 mm

Series: Eaton xComfort

: IP20

Power supply (LOV): mains-powered

: 250 W

Data transfer (Smart Home): Wireless

Frequency: 868.3 MHz

Mounting type: Flush mount

Factory colour: White

Width: 45.5 mm

Height: 49.5 mm

Depth: 18 mm

Dim: (W x H x D) 45.5 x 49.5 x 18 mm

: n.rel.

Data exchange: Bidirectional (bi)

Hub: Not required, optional for remote access

: Flush mounted (plaster)

: Dimming actuator

: 1

: 50-50 Hz

: FALSE

: TRUE

: FALSE

: TRUE

: Universal and LED Retrofit

: 0 mA

: 230-230 V

: 3

: xComfort

: FALSE

: TRUE

: FALSE

: TRUE

: 0-250 W

: IP20

: TRUE

: FALSE

: FALSE

: TRUE

: FALSE

: 18 mm

: 100 W

: FALSE

Product type: Dimmer actuator

Documents & Downloads

Datasheet

Datasheet 2142531 CDAU-01/04-I Eaton xComfort Dimmer actuator White

User & Safety Instructions

User & Safety Instructions 2142531 CDAU-01/04-I Eaton xComfort Dimmer actuator White

Description

Intelligent dimming actuator in small size with 0-250 W/230 VAC and local 230VAC-inputs. Suitable for dimming of different loads including dimmable and not dimmable LEDs (on/off). Even the smallest LED lights dim loads from 0 W! Simple selection or definition of a DIMM profile for an optimum Dimming power. Energy-efficient. Compact design for installation behind the switches, buttons, motion sensors, wall sockets or distribution boxes.

This text is machine translated.
