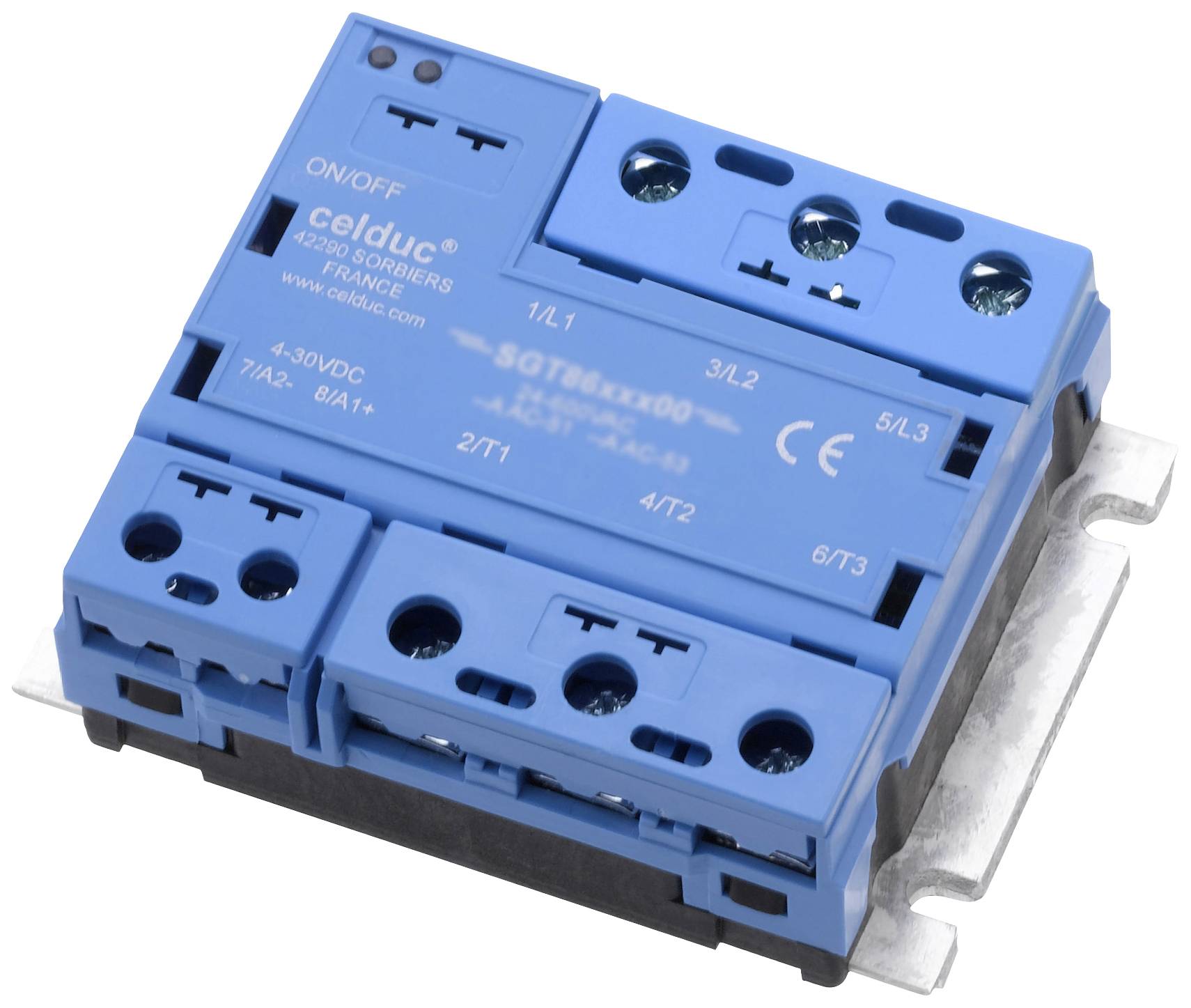

Celduc SSR SGT9874300 54 A Switching voltage (max.): 660 V AC 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Minimum order quantity: 16
Total (€ 231.09 / piece)
€
Technical specifications
- Thyristor rated values: 3x75A
- Max. Switching current (A): 3x54A AC-1 @40°C
- Function AC on/off Zero-Cross
- Relay type (AC or DC): AC
- Series: SGT 2G
- Heatsink included: No.
- Housing type: Standard
- Applications: (AC-1 / LC A) heating elements
- Number of switched phases: 3 phases - 1 control
- Protection (RC, Varistor, TVS): On gate
- Type
SGT9874300
- Connection
Screws
- Control voltage (min.)
4 V DC
- Control voltage (max.)
30 V DC
- Control voltage range
4 - 30 V DC
- Control current (max.)
25 mA
- Surge current (max.)
1200 A
- Switching voltage (min.)
24 V AC
- Switching voltage (max.)
660 V AC
- Current load (max.)
54 A
- Contact type
1 maker
- Min. temperature
-40 °C
- Max. temperature
+85 °C
- Content
1 pc(s)
- Mounting type
Screws
- Product type
SSR
Documents & Downloads
Datasheet
Datasheet 3222009 Celduc SSR SGT9874300 54 A Switching voltage (max.): 660 V AC 1 pc(s)
Description
Cellduc SSR - SGT9874300
