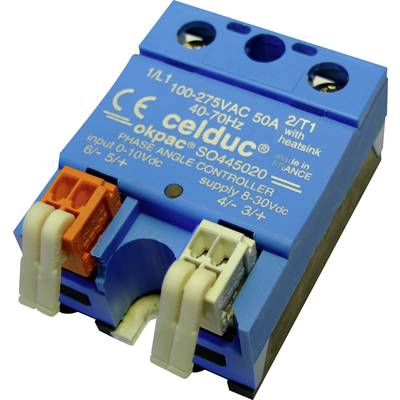

Celduc SSR SO445020 50 A Switching voltage (max.): 280 V AC, 280 V DC 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Sales and shipping:
Total (€ 147.05 / piece)
€
Technical specifications
- Electrostatic discharge sensitivity: No.Mounting case: Hockey puckNumber of switched phases: 1 phase
- Type
SO445020
- Connection
Screws
- Control voltage (max.)
10 V DC
- Control voltage range
10 V DC (max)
- Surge current (max.)
720 A
- Switching voltage (min.)
100 V AC
100 V DC
- Switching voltage (max.)
280 V AC
280 V DC
- Current load (max.)
50 A
- Contact type
1 maker
- Min. temperature
-40 °C
- Max. temperature
+90 °C
- Width
45 mm
- Height
58.5 mm
- Length
33.6 mm
- RoHS-compliant
Yes
- Content
1 pc(s)
- Product type
SSR
