Highlights & Details

Current transformer AST 412 400/5A 5VA class 1

Line feed-through diameter 33 mm

Technical specifications

Accuracy class: 1

Type: AST 412 400/5A 5VA Kl. 1

Line feed-through diameter: 33 mm

Primary current: 400 A

Secondary current: 5 A

Line feed-through (H): 41 mm

Line feed-through (H x W): 41 x 41 mm

Line feed-through (W): 41 mm

: Attachable current transformer

: 33 mm

: 1

: FALSE

: 400 A

: FALSE

: 5 VA

: 5 A

: FS 5

: TRUE

: FALSE

: 1

: 13-41 mm

: 13-41 mm

: Screw connection

Product type: Current transformer attachment

Documents & Downloads

Datasheet

Datasheet 3126497 Celsa AST 412 400/5A 5VA Kl. 1 Current transformer attachment Primary current 400 A Secondary current 5 A Line feed-thro

User & Safety Instructions

User & Safety Instructions 3126497 Celsa AST 412 400/5A 5VA Kl. 1 Current transformer attachment Primary current 400 A Secondary current 5 A Line feed-thro

Description

This current transformer is usually used in equipment reconstructions, since the electric circuit has to be interrupted here
Most cost-effective and most common version
Simply connect the converter to the primary conductor (do not need to be wired in a complicated way)
Currently the most compact design on the market, it is wonderfully suitable for the control cabinet
Further areas of application are the mechanical and plant engineering

This text is machine translated.

Scope of delivery

2 PC Insert foot

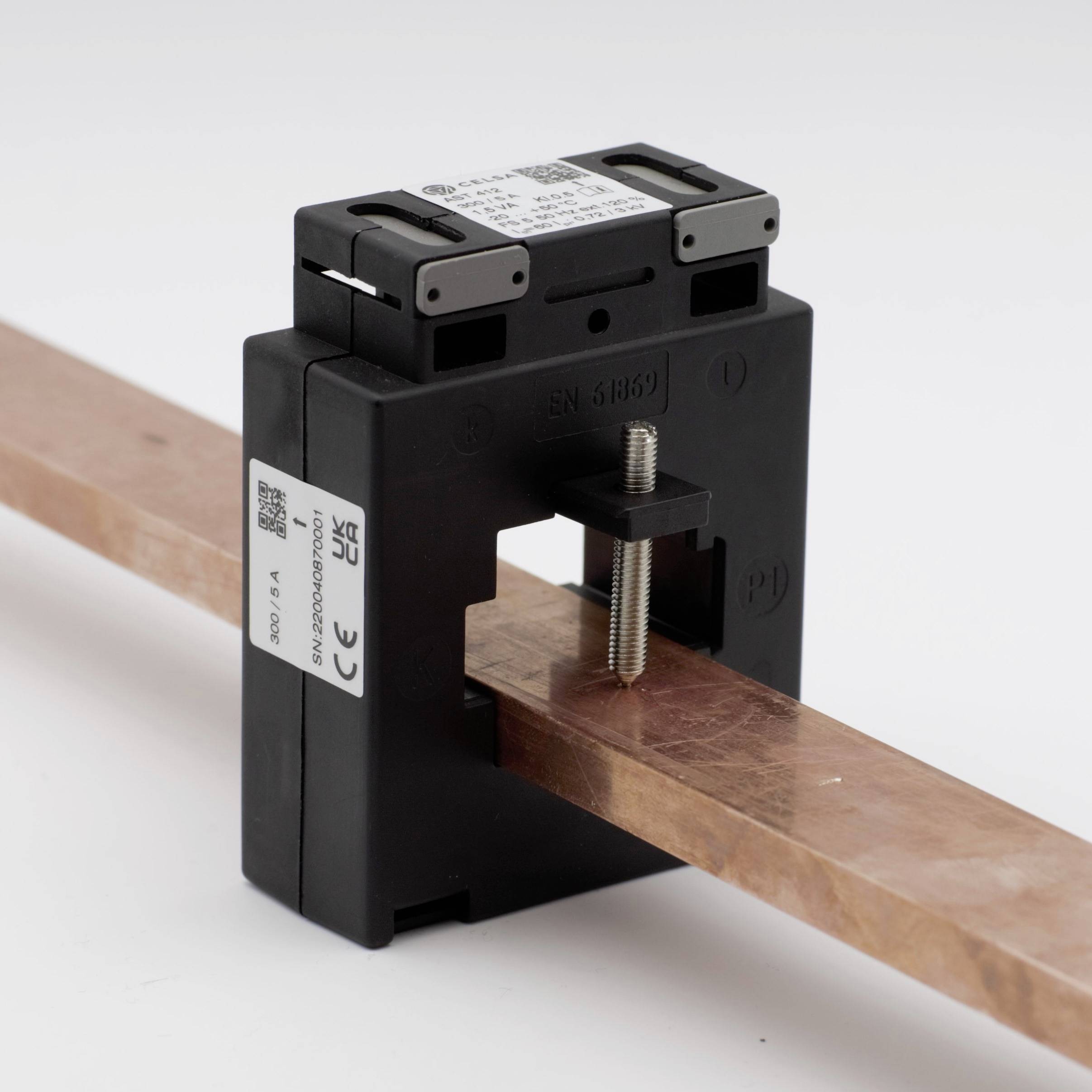

2 PCs. Threaded pin 35xM5mm for primary rail mounting
2 PCs. Of secondary terminal cover (gray)
1 PCs. Primary rail slider 13
