Buy Celsa TQ 18-B 250/5A 1VA Kl. 0.5 70006-1031 Cable current transformer Primary current 250 A Secondary current 5 A Line f

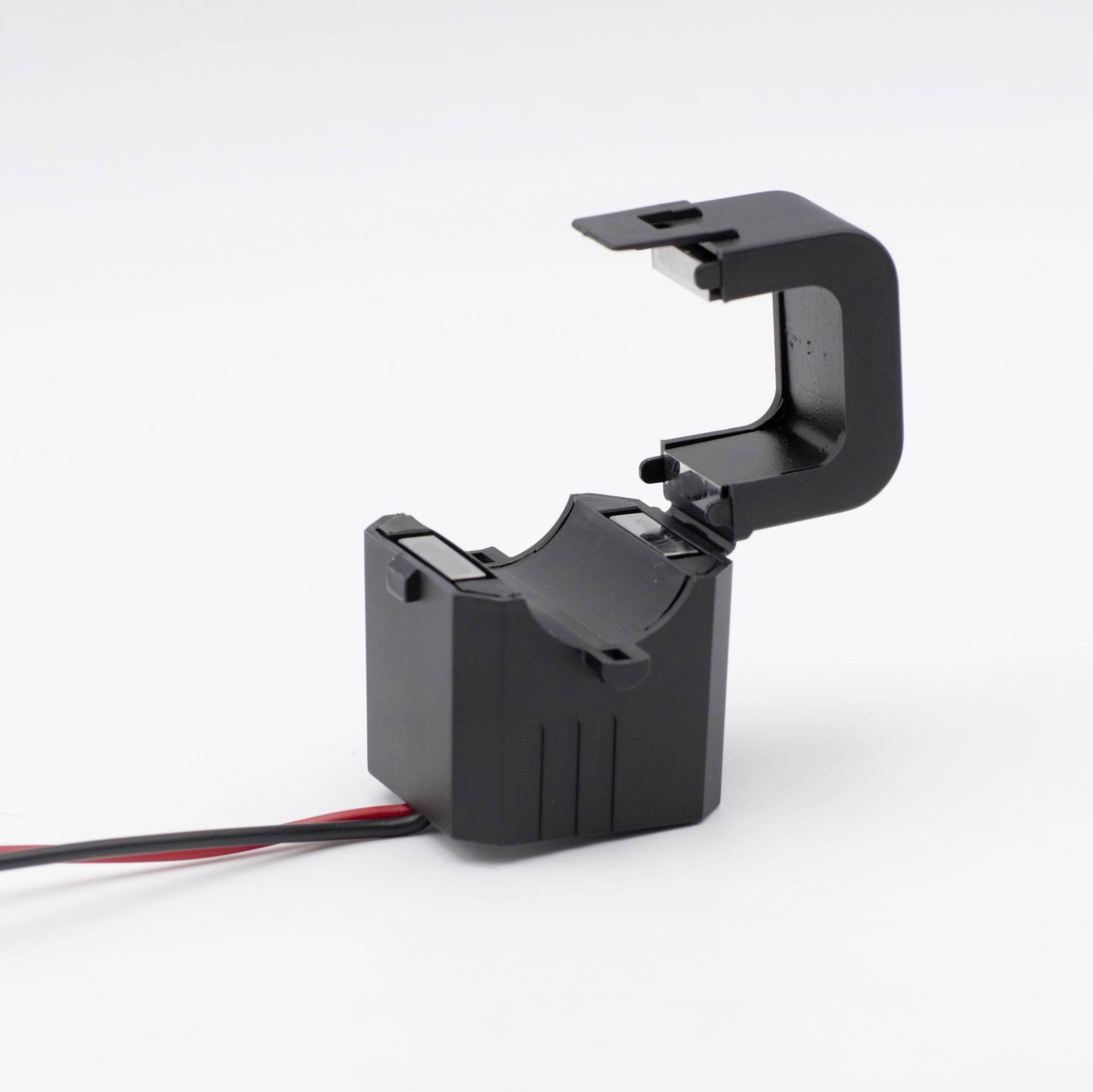

A black electric current transformer with an open clip and red and black connection wires on a white background.

Technical drawing of a sensor with dimensions. Left: elongated with two tubes, right: square body. Cable at the top.

The figure shows technical drawings of an electrical sensor with dimensions in millimetres. Left side view, right top view.

1/3

Datasheet (PDF)

7 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 75.62 / piece)

€

Only 7 Piece(s) available

Report legal concerns

Highlights & Details

CABLEconversion current transformer TQ 18-B 250/5A 1VA Cl. 0.5

Line feed-through diameter 18 mm

Technical specifications

Accuracy class: 0.5

Type: TQ 18-B 250/5A 1VA Kl. 0.5

Line feed-through diameter: 18 mm

Primary current: 250 A

Secondary current: 5 A

Line feed-through (H): 0 mm

Line feed-through (W): 0 mm

: Cable rebuilding current converter

: 18 mm

: 1

: FALSE

: 250 A

: FALSE

: 1 VA

: 5 A

: FS 5

: TRUE

: FALSE

: 0.5

: 0-0 mm

: 0-0 mm

: Cable

Product type: Cable current transformer

Documents & Downloads

Datasheet

Datasheet 3131453 Celsa TQ 18-B 250/5A 1VA Kl. 0.5 70006-1031 Cable current transformer Primary current 250 A Secondary current 5 A Line f

Description

Extremely compact
Excellent for retrofitting, as you don't need to interrupt the primary circuit
Especially suitable for digital measuring devices
Super quick and easy installation
Fuse of the converter with UV-resistant cable ties
This cable transformer is supplied with multi-color coded connecting cables

This text is machine translated.
