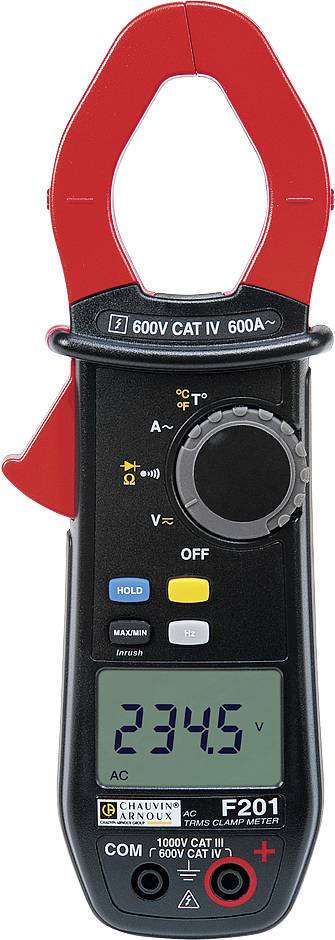

Chauvin Arnoux F201 Clamp meter Digital CAT III 1000 V, CAT IV 600 V Display (counts): 6000
EAN:
Part number:
Item no:
Datasheet (PDF)
1 Piece(s)
Sales and shipping:
Number
Total (€ 281.51 / piece)
€
Only 1 Piece(s) available
Highlights & Details
F201
- CAT III 1000 V, CAT IV 600 V
Technical specifications
- Voltage reading range DC (min.)
0.1 V
- Product type
Clamp meter
- Voltage DC reading range (max.)
1000 V
- V AC reading range (min.)
0.15 V
- V AC reading range (max.)
1000 V
- A AC reading range (min.)
0.15 A
- Amperage reading range AC (max.)
600 A
- Reading range - resistance
0.1 Ω - 60 kΩ
- Frequency reading range
5 Hz - 20 kHz
- DC resistance
10 MΩ
- AC resistance
10 MΩ
- Basic accuracy
1 %
- Measurement type (details)
True RMS
- Frequency range
5 Hz - 3 kHz Hz
- Interfaces
none
- Power supply (details)
9 V battery
- Height
42 mm
- Width
78 mm
- Length
222 mm
- Weight
340 g
Manufacturer's standards (no certificate)
- Reading category
CAT III 1000 V
CAT IV 600 V
- Voltage metering
AC/DC
- Current reading
AC
- Type
F201
- Display
Digital
- Display (counts)
6000
- Dim
(L x W x H) 222 x 78 x 42 mm
- Temperature reading range (max.)
+1200 °C
- Temperature reading range (min.)
-60 °C
- Opening range of current clamps
34 mm
Documents & Downloads
Datasheet
Datasheet 102535 Chauvin Arnoux F201 Clamp meter Digital CAT III 1000 V, CAT IV 600 V Display (counts): 6000
User & Safety Instructions
User & Safety Instructions 102535 Chauvin Arnoux F201 Clamp meter Digital CAT III 1000 V, CAT IV 600 V Display (counts): 6000
Description
The F201 multimeter meets all the expectations of the electrical trade, as well as small and medium-sized enterprises in the electrical industry.The F201 is measured using a fast 12-bit TRMS A/D converter and offers high accuracy regardless of the waveform.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1 set of test leads with test tips
- 1 K-type thermocouple probe with banana plugs
- 1 x 9 V battery
- 1 carrying case
- 1 quick guide and operating instructions in 5 languages on CD-ROM
