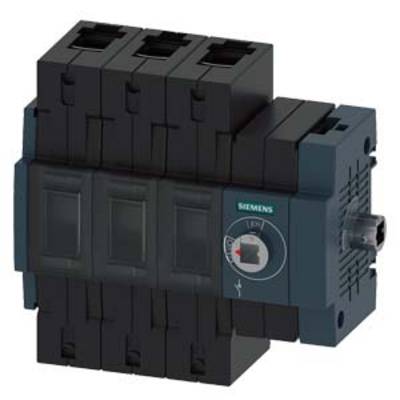

Circuit breakers 3-pin 100 A 3 change-overs 690 V AC Siemens 3KD30342NE400
EAN:
Part number:
Item no:
Product type
Circuit breakers
Nominal voltage
690 V AC
Number of pins
3
Nominal current - rounded value
100 A
Contact type
3 change-overs
Datasheet (PDF)
Technical specifications
- Protection class: IP20
- Isolation voltage: 1000 V
- Ambient temperature: -25 °C to +70 °C
- Surge voltage resistance: 8 kV
- Mechanical life: 15000
- Electrical life: 1500
- Power loss: 5.4 W
- Design of the electrical connection: frame clamp
- Size of the switch disconnector: 2
- Mounting type: screw and DIN rail mounting 35 mm
- Product type
Circuit breakers
- Contact type
3 change-overs
- Operating voltage
690 V AC
- Nominal voltage
690 V AC
- Number of pins
3
- Dim
(W x H x D) 130.3 x 126 x 69.5 mm
- Nominal current
100 A
- Nominal current - rounded value
100 A
- Type
pressure switch
- Width
130.3 mm
- Height
126 mm
- Depth
69.5 mm
0
0
100 A
3
IP20
3
1
FALSE
FALSE
Frame clamp
TRUE
None
TRUE
TRUE
TRUE
55 kW
4 kA
Other
TRUE
FALSE
FALSE
TRUE
TRUE
1000 V
FALSE
FALSE
Built-in device fixed built-in technique
100 A
55 kW
FALSE
100
Other
Documents & Downloads
Datasheet
Datasheet 1751265 Circuit breakers 3-pin 100 A 3 change-overs 690 V AC Siemens 3KD30342NE400
User & Safety Instructions
User & Safety Instructions 1751265 Circuit breakers 3-pin 100 A 3 change-overs 690 V AC Siemens 3KD30342NE400
Description
circuit breaker 3VA2 IEC frame 250 breaking capacity class C Icu=110kA @ 415 V 4pole, line protection ETU860, LSIG, In=250A overload protection ir=100A ...250A short circuit protection Isd=0,6..10x In, iI=1,5..10x In neutral protection adjustable (off, upto 100%) groundfault, switchable ig=0,2... 1 x In, tg=0,050,8s busbar connection
