Circuit breakers Black 3-pin 35 mm² 63 A 690 V AC Siemens 3LD25300TK11
EAN:
Part number:
Item no:
Product type
Circuit breakers
Nominal voltage
690 V AC
Number of pins
3
Nominal current - rounded value
63 A
Operating voltage
690 V AC
Datasheet (PDF)
2 Piece(s)
Sales and shipping:
Number
Total (€ 63.86 / piece)
€
Only 2 Piece(s) available
Technical specifications
- Protection class: IP40
- Isolation voltage: 690 V
- Operating frequency: 50/60 Hz
- Ambient temperature: -25 °C to +55 °C
- Surge voltage resistance: 6 kV
- Mechanical life: 100000
- Electrical life: 6000
- Color of the actuator: black
- Size of the switch disconnector: 3
- Power loss: 13.5 W
- Product type
Circuit breakers
- Operating voltage
690 V AC
- Nominal voltage
690 V AC
- Factory colour
Black
- Cross section
35 mm²
- Number of pins
3

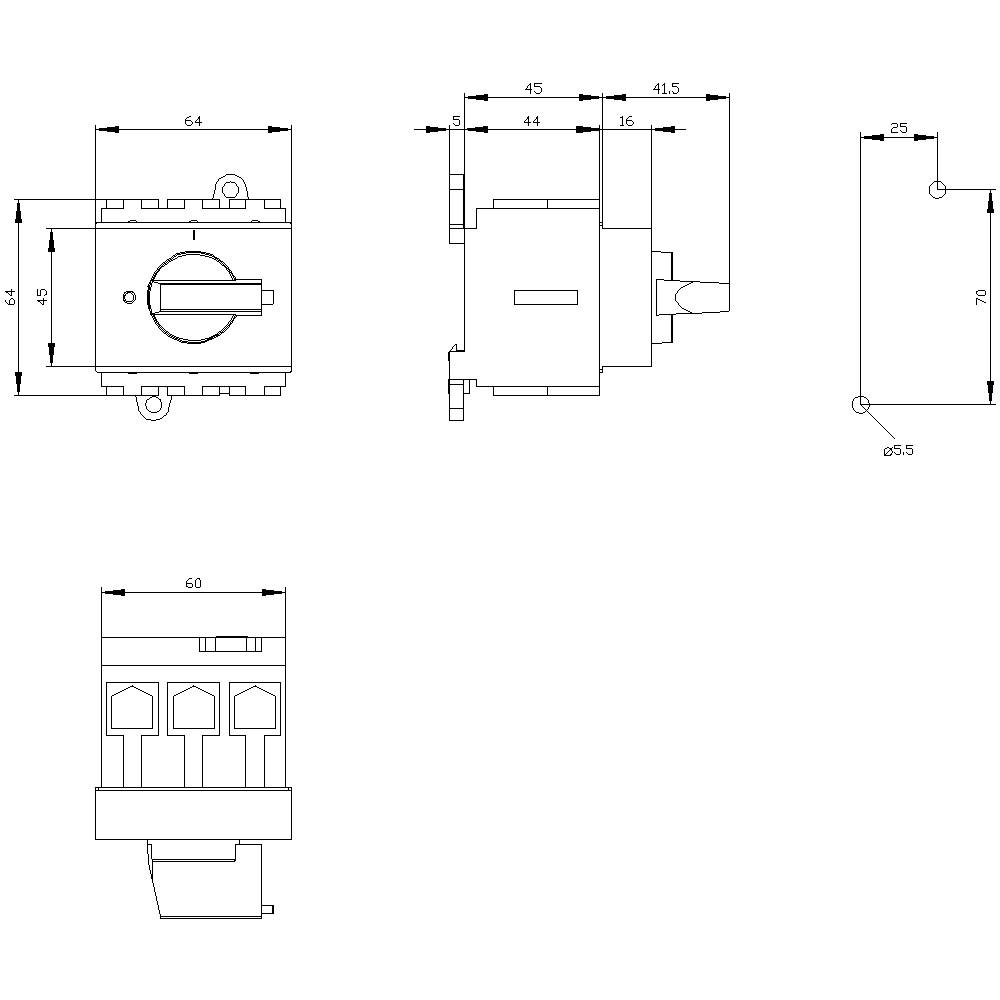

- Dim
(W x H x D) 64 x 64 x 93 mm
- Nominal current
63 A
- Nominal current - rounded value
63 A
- Type
Step Switches
- Width
64 mm
- Height
64 mm
- Depth
93 mm
19 kW
0
0
63 A
3
IP40
0
1
TRUE
FALSE
Frame clamp
FALSE
Toggle
TRUE
TRUE
TRUE
22 kW
1.26 kA
Black
TRUE
FALSE
FALSE
TRUE
TRUE
690 V
FALSE
FALSE
Built-in device fixed built-in technique
63 A
FALSE
43
Other
Documents & Downloads
Datasheet
Datasheet 1744176 Circuit breakers Black 3-pin 35 mm² 63 A 690 V AC Siemens 3LD25300TK11
User & Safety Instructions
User & Safety Instructions 1744176 Circuit breakers Black 3-pin 35 mm² 63 A 690 V AC Siemens 3LD25300TK11
Description
Contactor relay, 2 NO + 2 NC 30 V DC Screw terminal size S00 !!! Phased-out product !!! Successor is SIRIUS 3RH2 This 3RH1 auxiliary contact is being replaced by a device from the 3RH2 series. Simple, efficient and always up to date - SIRIUS modular system.
