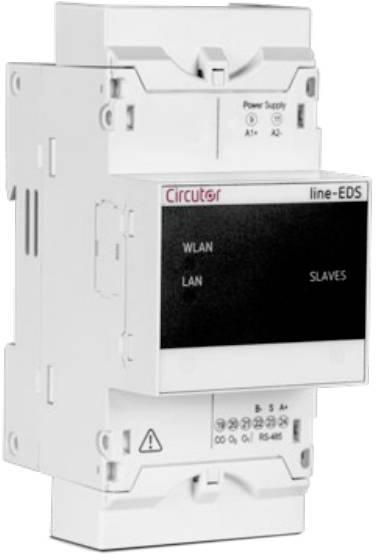

Circutor Line-EDS-PS Expansion
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
- Integrated PowerStudio software
- 5 display LEDs
- 2 digital outputs
- RS-485 and Ethernet
- WiFi
Technical specifications
- Type
Line-EDS-PS
IP30
- Dim
(L x W x H) 74 x 53 x 118 mm
- Weight
180 g
- Factory colour
White
- Height
118 mm
- Length
74 mm
- Width
53 mm
- Display technology
LCD
- Recess width
53 mm
- Interfaces
1 x Ethernet/LAN
Wi-Fi
1 x RS 485 Modbus RTU
- Display lighting
white
- Reading category
CAT III 300 V
- Recess depth
74 mm
- Frame width
53 mm
- Recess height
118 mm
- Operating voltage
230 V DC/AC
- Min. operating voltage
100 V DC
- Max. operating voltage
300 V DC
- Product type
Expansion
Documents & Downloads
Datasheet
Datasheet 2390046 Circutor Line-EDS-PS Expansion
User & Safety Instructions
User & Safety Instructions 2390046 Circutor Line-EDS-PS Expansion
Information
Information 2390046 Circutor Line-EDS-PS Expansion
Description
Line-EDS-PS is a module of the CIRCUTOR Line System for monitoring and controlling plants.
Circutor Line-EDS-PS is a gateway with embedded PowerStudio. With this module alone, you can set up a monitoring and remote management system. By using the extension modules of the line series or any Modbus (TCP or RTU) device on the market, it is possible to integrate every process signal to be measured.
By programming the device with PowerStudio, you can integrate any control logic for analogue or digital outputs so that you can create an automated management system that performs actions based on the input signals. The device can be connected via wired (Ethernet) or wireless (Wi-Fi) networks. The data displays, screens, and reports can be accessed through the PowerStudio client or through a web browser using the embedded Web server.
The Line-M Series I/O Expansion Modules allow the system to be expanded to include I/O functions.
This text is machine translated.
Circutor Line-EDS-PS is a gateway with embedded PowerStudio. With this module alone, you can set up a monitoring and remote management system. By using the extension modules of the line series or any Modbus (TCP or RTU) device on the market, it is possible to integrate every process signal to be measured.
By programming the device with PowerStudio, you can integrate any control logic for analogue or digital outputs so that you can create an automated management system that performs actions based on the input signals. The device can be connected via wired (Ethernet) or wireless (Wi-Fi) networks. The data displays, screens, and reports can be accessed through the PowerStudio client or through a web browser using the embedded Web server.
The Line-M Series I/O Expansion Modules allow the system to be expanded to include I/O functions.
