Buy Cliff FCR2069 Mains connector FC Socket, vertical vertical Total number of pins: 3 + PE 20 A Red 1 pc(s)

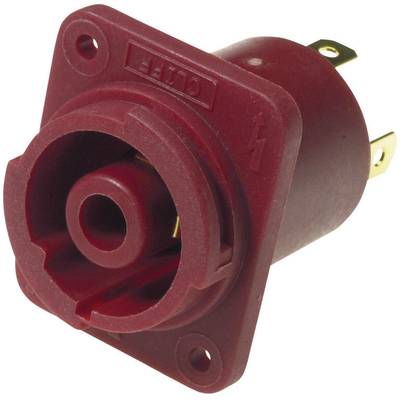

A red three-pin connector socket with a circular design and gold-coloured contacts.

Product type

Mains connector

Connector type

Socket, vertical vertical

Total no. of pins

3 + PE

Connection

Soldering

Nominal voltage

250 V AC

Datasheet (PDF)

95 Piece(s)

Sales and shipping:

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 6.71 / piece)

€ 7.55

-11 %

€

Report legal concerns

Technical specifications

Product type: Mains connector

Connector type: Socket, vertical vertical

Total no. of pins: 3 + PE

Connection: Soldering

Nominal voltage: 250 V AC

Factory colour: Red

Content: 1 pc(s)

Nominal current: 20 A

Nominal current - rounded value: 20 A

Type: Panel socket

Manufacturer part #: FCR2069

Cable Ø (max.): 6 mm²

Cable Ø range: 6 mm² (max)

Contact resistance: < 3 mΩ

Contact material: Gold plated

Certification marks: EN60065, IEC348 and EN61010-1

Number of pins: 3

RoHS-compliant: Yes

Series: FC

Temperature range: -20 - +80 °C

Type: FCR2069

Leading contact (PE): Yes

Nominal voltage (details): 250 V AC

Nominal current (details): 20 A

Cross section: 6 mm²

Pins: 4

Connection: Solder

Documents & Downloads

Datasheet

Datasheet 735593 Cliff FCR2069 Mains connector FC Socket, vertical vertical Total number of pins: 3 + PE 20 A Red 1 pc(s)

User & Safety Instructions

User & Safety Instructions 735593 Cliff FCR2069 Mains connector FC Socket, vertical vertical Total number of pins: 3 + PE 20 A Red 1 pc(s)

Description

The 4-pin CLIFFCON® connectors are available in blue for applications up to 120 VAC (speakers, amplifiers, battery chargers, in-vehicle use). The red connectors are suitable for use up to 250 VAC. The connectors are intended for applications for which a touch-safe connector system with high-quality, reliable locking is required. The connectors in the Cliffcon® range are robust and durable multi-pin plugs and sockets. Designed for high-performance applications, the connectors include touch-safe contacts and a simple lock, and comply with the safety requirements of IEC 65/348. With integrated strain relief.
