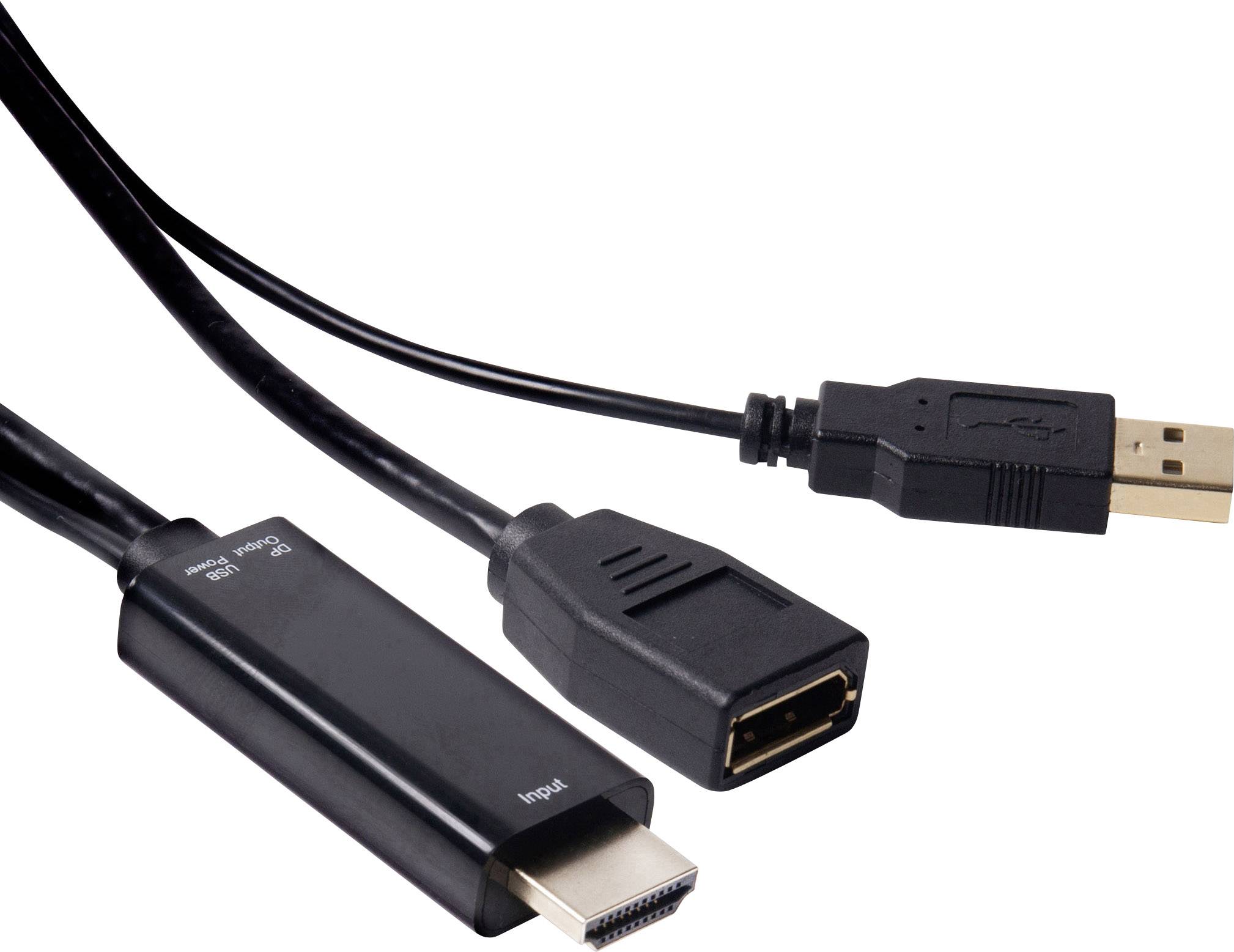

club3D CAC-2330 HDMI Adapter [1x HDMI plug - 1x DisplayPort socket] Black
EAN:
Part number:
Item no:
Datasheet (PDF)
Sales and shipping:
Total (€ 100.83 / piece)
€
Highlights & Details
club3D CAC-2330 HDMI Adapter [1x HDMI plug - 1x DisplayPort socket] Black
- Compatible with DisplayPort™ 1.1 dual mode and lower versions
- HDMI™ compatible receiver
- Transmission rate up to 2.97 Gbps per channel
- Color depth up to 48 bits
- 3D video timings
- HDCP 1.4 Repeater with embedded keys
Technical specifications
- Connection type
HDMI
- No. of A connectors
1 x
- Type A
HDMI plug
- No. of B connections
1 x
- Type B
DisplayPort socket
- Factory colour
Black
- Shielding
Partial shielding
24
- Cable use
TV/monitor
- Version
Adapter
- Video resolution
4096 x 2160 Pixel
- Range of use
Monitors/TV adapters
- Weight
0.036
- Product type
TV/monitor Adapter
![club3D CAC-2330 HDMI Adapter [1x HDMI plug - 1x DisplayPort socket] Black](https://asset.conrad.com/media10/isa/160267/c1/-/en/001997866PI00/image.jpg?x=100&y=100)
![club3D CAC-2003 DisplayPort Adapter [1x DisplayPort plug - 1x VGA socket] White 0 mm](https://asset.conrad.com/media10/isa/160267/c1/-/en/001997856PI00/image.jpg?x=100&y=100)
![club3D CAC-2070 DisplayPort Adapter [1x DisplayPort plug - 1x HDMI socket] Black 0 mm](https://asset.conrad.com/media10/isa/160267/c1/-/en/001997859PI04/image.jpg?x=100&y=100)
![club3D CAC-2170 Mini DisplayPort Adapter [1x Mini DisplayPort plug - 1x HDMI socket] Black 0 mm](https://asset.conrad.com/media10/isa/160267/c1/-/en/001997862PI00/image.jpg?x=100&y=100)
![club3D CAC-1080 DisplayPort Adapter [1x DisplayPort plug - 1x HDMI socket] Black 0 mm](https://asset.conrad.com/media10/isa/160267/c1/-/en/001997867PI00/image.jpg?x=100&y=100)
![club3D CAC-1180 DisplayPort Adapter [1x DisplayPort plug - 1x HDMI socket] Black 0 mm](https://asset.conrad.com/media10/isa/160267/c1/-/en/001997868PI00/image.jpg?x=100&y=100)
![club3D CSV-6200 DisplayPort Adapter [1x DisplayPort plug, USB 3.2 1st Gen port Micro B (USB 3.0) - 2x DisplayPort socket] Black](https://asset.conrad.com/media10/isa/160267/c1/-/en/001997872PI00/image.jpg?x=100&y=100)
![club3D CSV-6400 DisplayPort Adapter [1x DisplayPort plug - 4x DisplayPort socket] Black](https://asset.conrad.com/media10/isa/160267/c1/-/en/001997874PI00/image.jpg?x=100&y=100)
![club3D CAC-2504 USB Adapter [1x USB 3.2 2nd Gen connector C (USB 3.1) - 1x HDMI socket] Black 0 mm](https://asset.conrad.com/media10/isa/160267/c1/-/en/001997875PI00/image.jpg?x=100&y=100)
Documents & Downloads
Datasheet
Datasheet 1997866 club3D CAC-2330 HDMI Adapter [1x HDMI plug - 1x DisplayPort socket] Black
User & Safety Instructions
User & Safety Instructions 1997866 club3D CAC-2330 HDMI Adapter [1x HDMI plug - 1x DisplayPort socket] Black
Description

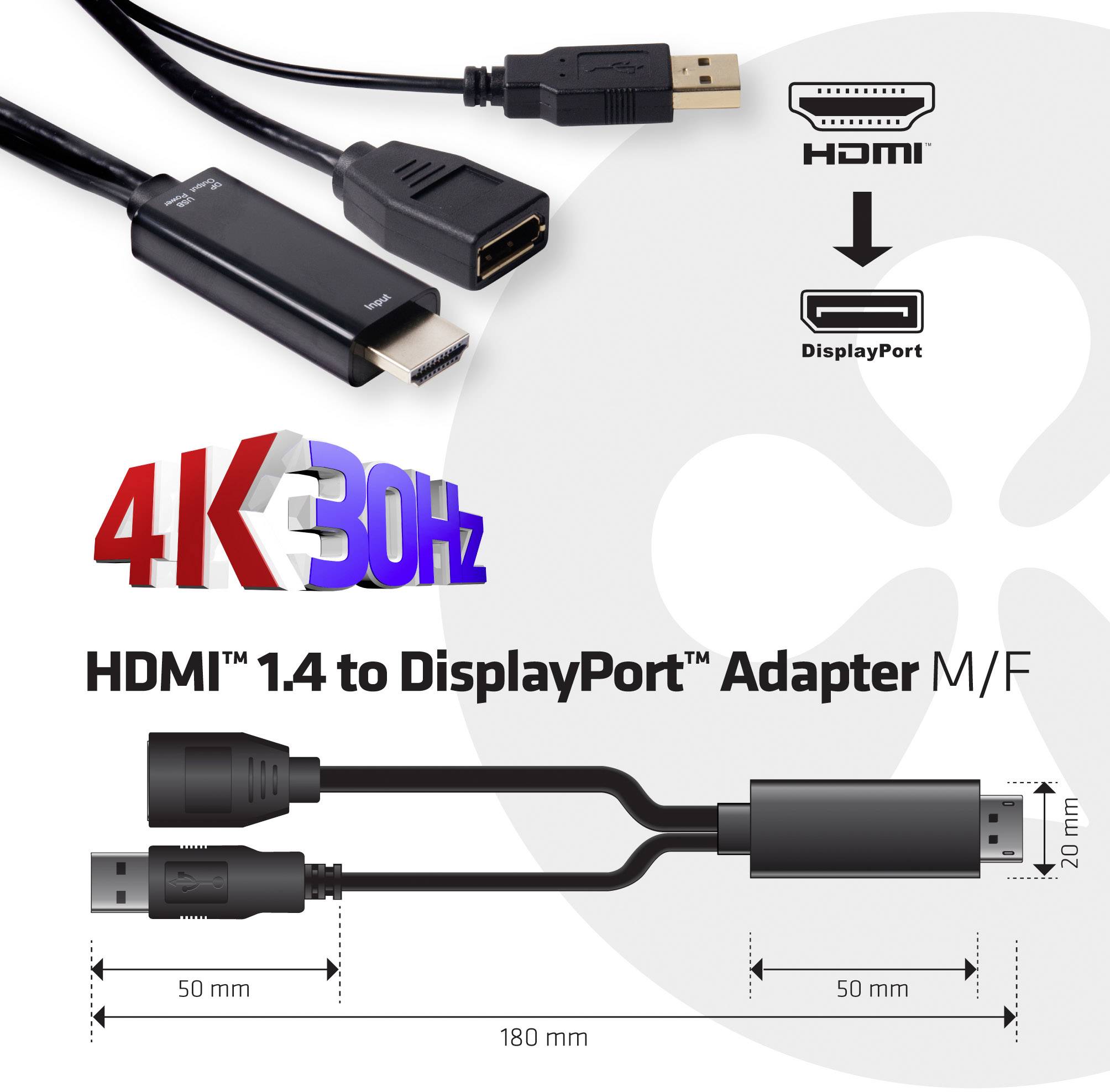

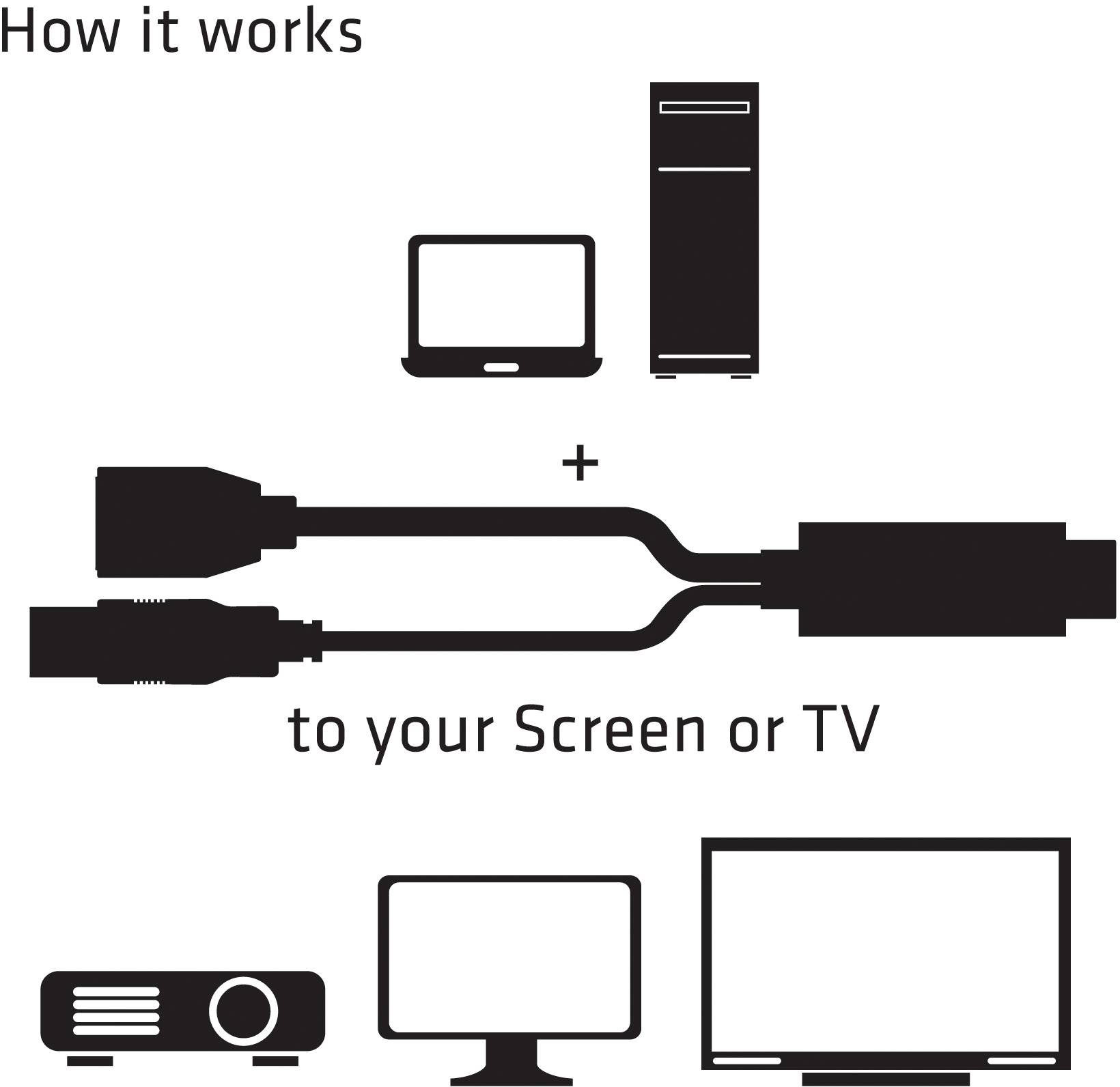

The Club 3D HDMI™ to DisplayPort™ adapter is the perfect solution for your products that have an HDMI™ output, such as Game consoles or notebook, to connect to a display with DisplayPort™ input.
It is equipped with a USB-A port to provide power if the HDMI source does not have enough power.
The HDMI™ to DisplayPort™ adapter supports resolutions up to UHD 4096x2160 at 30 Hz and Full HD 1920 x 1080p at 120Hz.
The CAC-2330 active adapter offers a plug-and-play installation, combined with an effortless setup without software or drivers that need to be installed.
The DisplayPort™ output is compatible with DisplayPort™ ++ or Dual Mode.
This text is machine translated.
It is equipped with a USB-A port to provide power if the HDMI source does not have enough power.
The HDMI™ to DisplayPort™ adapter supports resolutions up to UHD 4096x2160 at 30 Hz and Full HD 1920 x 1080p at 120Hz.
The CAC-2330 active adapter offers a plug-and-play installation, combined with an effortless setup without software or drivers that need to be installed.
The DisplayPort™ output is compatible with DisplayPort™ ++ or Dual Mode.
This text is machine translated.
System requirements
- All
