Buy club3D USB-C® / DisplayPort Adapter cable USB-C® plug, DisplayPort plug 1.80 m Black CAC-1557 Flame-retardant USB-C® scr

'Club 3D USB-C to DisplayPort Cable, 1.8m, supports 8K60Hz, bidirectional HDR.' Packaging and cable visible.

USB-C cable 'Club 3D', Type-C to DisplayPort, 1.8 m, 8K 60Hz, bidirectional HDR support. Packaging in the background.

1/2

Product type

USB-C® screen cable

Connection type

USB-C®

DisplayPort

Version

Adapter cable

Connection type

USB-C® to DisplayPort

Connections

USB-C® plug

DisplayPort plug

Datasheet (PDF)

27 Piece(s)

Sales and shipping:

Number

Piece(s)

Total (€ 31.92 / piece)

€

Report legal concerns

Highlights & Details

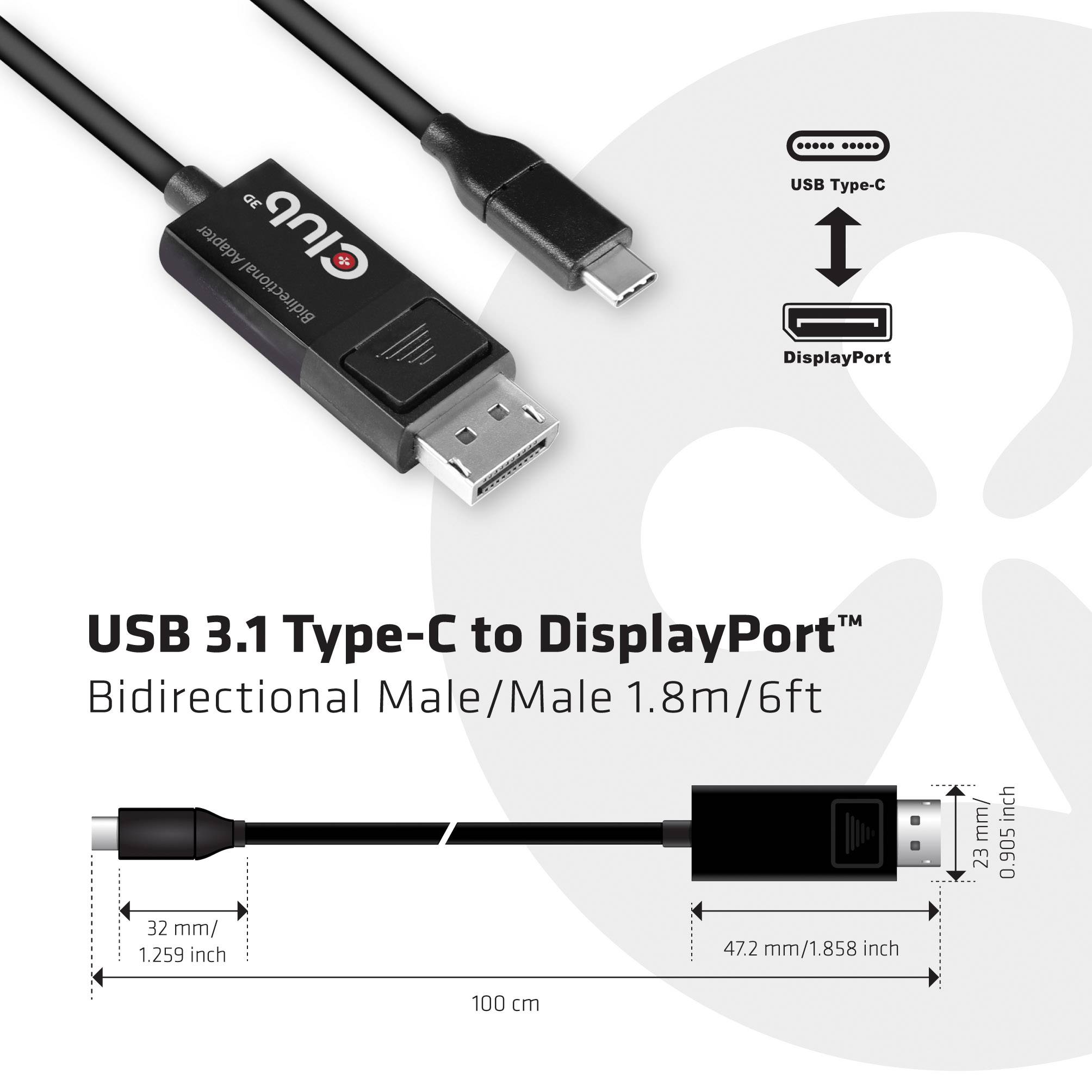

USB 3.1 type C cable to DisplayPort™ 1.4 8K60Hz

USB type C plug, both sides
Complies with VESA DisplayPort™ Alt Mode Standard
Supports full link training and no link training
Supports (U)HD resolutions up to 3840 x 2160p @ 120Hz ind 8K@60Hz
Supports 3D video formats up to 1080p @ 120Hz
Strong supply via USB port (no external power necessary)
The cable is bi-directional

Technical specifications

Product type: USB-C® screen cable

Connection type: USB-C®
DisplayPort

Version: Adapter cable

Connection type: USB-C® to DisplayPort

Connections: USB-C® plug
DisplayPort plug

Connector version: straight

Video resolution: 3840 x 2160 Pixel

Cable length: 1.80 m

Factory colour: Black

Cable features: Flame-retardant

Signal flow: Unidirectional (A→B)

Cable use: TV/monitor

Cable design: Round

: Tin plated copper

: 30

Shielding: Partial shielding

Documents & Downloads

Datasheet

Datasheet 2102051 club3D USB-C® / DisplayPort Adapter cable USB-C® plug, DisplayPort plug 1.80 m Black CAC-1557 Flame-retardant USB-C® scr

User & Safety Instructions

User & Safety Instructions 2102051 club3D USB-C® / DisplayPort Adapter cable USB-C® plug, DisplayPort plug 1.80 m Black CAC-1557 Flame-retardant USB-C® scr

Description

The Club 3D CAC-1557 cable is a DisplayPort™ signal converter. The USB type C on DisplayPort™ 1.4 cable is the simplest solution for connecting your USB type C equipped source, which supports DisplayPort™ Alternate Mode, with a DisplayPort™ 1.4 monitor, TV or projector and vice versa. Powered via the USB type C port, the cable does not need any external power supply and is ideal for use with the latest notebooks / MacBook (Pro) and tablets.

Supports up to 4K UHD resolution in 120Hz and 8K in 60Hz and HDR
The USB type C on DisplayPort™ 1.4 cable supports UHD resolutions up to 4K UHD @ 120Hz or 8K at 60Hz for a clear and sharp image, as well as HDR. Support for 120 frames per second provides exceptionally smooth video viewing. Use the cable to play games, watch videos or surf in the Internet via your USB type C or DP 1.4 enabled product and to display this on your ultra-high-resolution monitor or TV. Supports up to 8 audio channels and thus enables high-definition digital audio and video. Does not support dual mode DisplayPort™ (DP++)

This text is machine translated.

Hints

To support this maximum resolution, it is important that the source device supports USB C DisplayPort Alt Mode 1.4. Please contact the manufacturer of your device for this specification. For example, the Nvidia RTX series supports this standard.

System requirements

The USB Type C to DisplayPort™ 1.4 cable supports all USB Type C products with DisplayPort™ OLD mode and operating systems, including, but not limited to, Apple OS X, Windows 7, 8.1 and 10 and Google Chrome OS.
