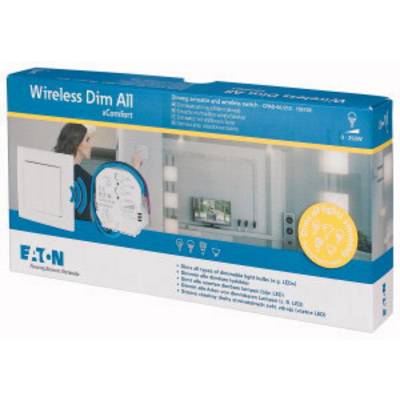

A person is pointing to a wireless dimmer switch in packaging with an image of a living room. An 'Eaton' product details marking is visible on the box.

1/3

Datasheet (PDF)

Show alternatives

Sales and shipping:

Number

Piece(s)

Total (€ 151.25 / piece)

€

Report legal concerns

Highlights & Details

Wireless Dim All, package, pre-programd

Dimming actuator and sensor;
Pre-programmed
868 MHz

Technical specifications

Power supply: 230 VAC +10% -15%, 50 Hz
Connections: Single wire 1.5 mm² all connections; load 0-250 W (0-250 VA)
LED, ESL: 0-100 W (depending on the lamp type)
Range in the building: Typically 30 - 50 m, 2 walls + 1 ceiling; (depending on wall thickness and material!)
Function assignments: 32
routing routes: 32 Operating temperature: -5 to +55 °C
Minimum distance for multiple arrangement: 35 mm
Housing color gray, RAL7035
Dimensions Housing H x W x D - 49.5 x 45.5 x 18 mm
Length of connecting wires 150 mm

Product type: Dimmer set

Series: Eaton xComfort

Dim: (W x H x D) 49.5 x 45.5 x 18 mm

: IP20

Power supply (LOV): mains-powered
battery-powered

: 250 W

Data transfer (Smart Home): Wireless

Frequency: 868.3 MHz

Mounting type: Flush mount
Surface-mount

Factory colour: Pure white

Width: 49.5 mm

Height: 45.5 mm

Depth: 18 mm

Hub: Not required, optional for remote access

Data exchange: Bidirectional (bi)

: n.rel.

: Flush mounted (plaster)

: Dimming actuator

: 1

: 50-50 Hz

: FALSE

: TRUE

: FALSE

: TRUE

: Universal and LED Retrofit

: 0 mA

: 196-253 V

: 3

: Other

: FALSE

: FALSE

: FALSE

: FALSE

: 0-250 W

: IP20

: TRUE

: FALSE

: FALSE

: TRUE

: FALSE

: 18 mm

: 100 W

: FALSE

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2142544 CPAD-00/213 Eaton xComfort Dimmer set Pure white

User & Safety Instructions

User & Safety Instructions 2142544 CPAD-00/213 Eaton xComfort Dimmer set Pure white

Description

Pre-programd, wireless dimming package. All types of dimmable lamps are dimmed (e.g. LED). Evenly dimming, no post-heating of the LED (neutral). Easy installation without major construction work. Wireless Push Button, wherever you like. Compatible with universal 55 mm switching systems.

This text is machine translated.

Features

Pre-programd package with blind actuator and wall-mounted switch
Internal protection: overload, overvoltage, temperature, automatic reset.

Scope of delivery

Actor
Wireless wall switches incl. battery
Adhesive strips
Installation manual.
